EuropeSway Bar Kit 22mm Front, 24mm Rear, Adjustable, Complete Handling Upgrade
 SKU | BSK022M |
|---|---|
 Warranty | Limited Lifetime |
 Installation Time | 3 Hours |
 Fitting Position |
*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.
Kit Specifications
| Location | Sway Bar | Diameter (mm) | Diameter (in) Fraction | Diameter (in) Decimal | Material | Sway Bar Adjustment Type | Sway Bar Link Included |
|---|---|---|---|---|---|---|---|
| Front | BSF20Z | 22 | 7/8" | 0.866 | Solid Spring Steel | 2 Point Adjustable | Yes |
| Rear | BSR20XXZ | 24 | 61/64" | 0.944 | Solid Spring Steel | 3 Point Adjustable | Yes |
| Location | Front | Rear |
|---|---|---|
| Sway Bar | BSF20Z | BSR20XXZ |
| Diameter (mm) | 22 | 24 |
| Diameter (in) Fraction | 7/8" | 61/64" |
| Diameter (in) Decimal | 0.866 | 0.944 |
| Material | Solid Spring Steel | Solid Spring Steel |
| Sway Bar Adjustment Type | 2 Point Adjustable | 3 Point Adjustable |
| Sway Bar Link Included | Yes | Yes |

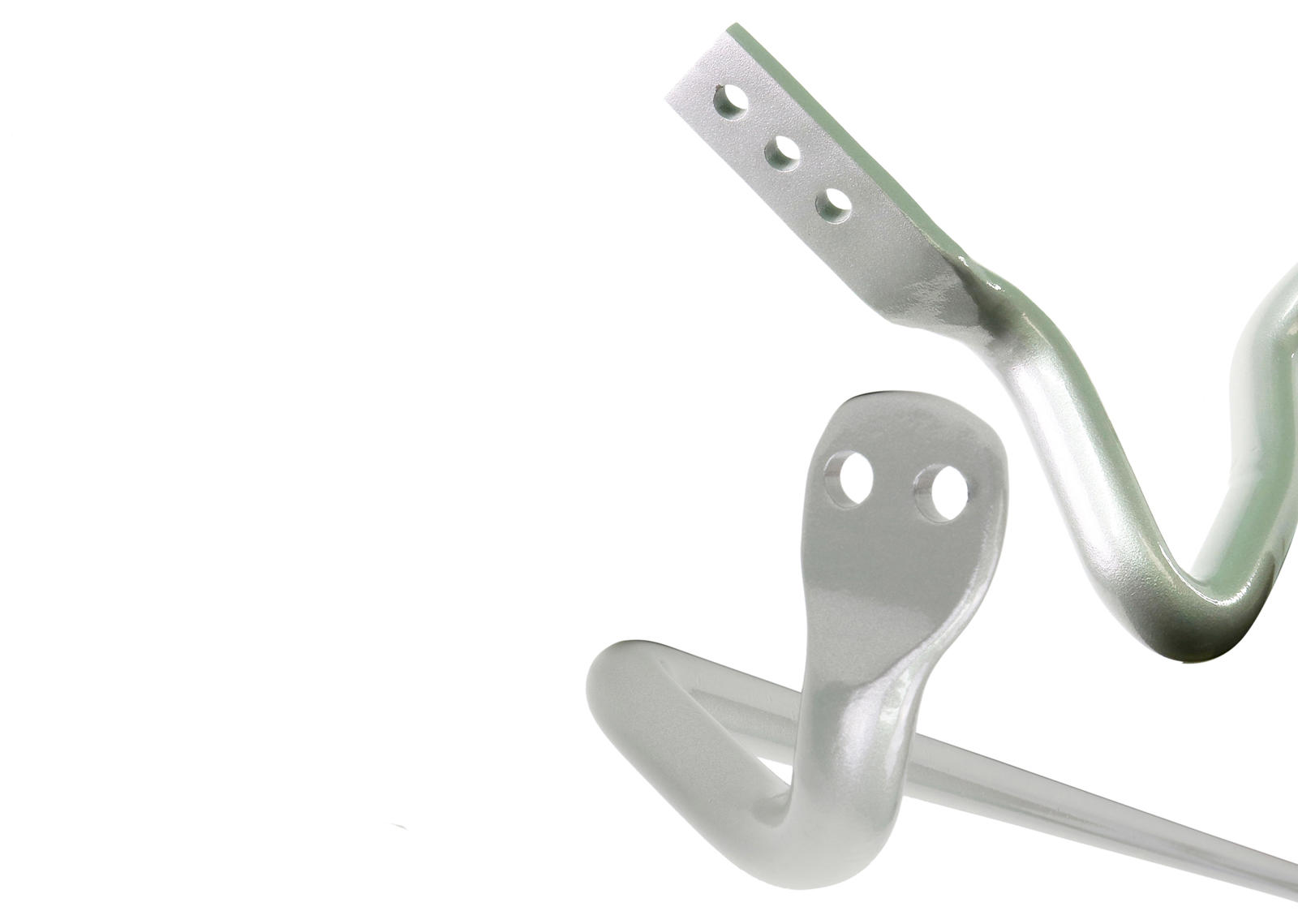

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.
Front Sway Bar Adjustment Settings
| Setting | Effective Bar Size (mm) | % Change vs Previous Setting | ~% Stiffer Than OE |
|---|---|---|---|
| Soft - Comfort / low grip | 21.5 mm | - | +35% |
| Hard - Maximum roll control | 22.5 mm | +20% | +60% |
Rear Sway Bar Adjustment Settings
| Setting | Effective Bar Size (mm) | % Change vs Previous Setting | ~% Stiffer Than OE |
|---|---|---|---|
| Soft - Comfort / low grip | 23 mm | - | +75% |
| Medium - Balanced | 24 mm | +20% | +105% |
| Hard - Maximum roll control | 25 mm | +20% | +145% |
Misc. Product Information
| SKU | BSK022M |

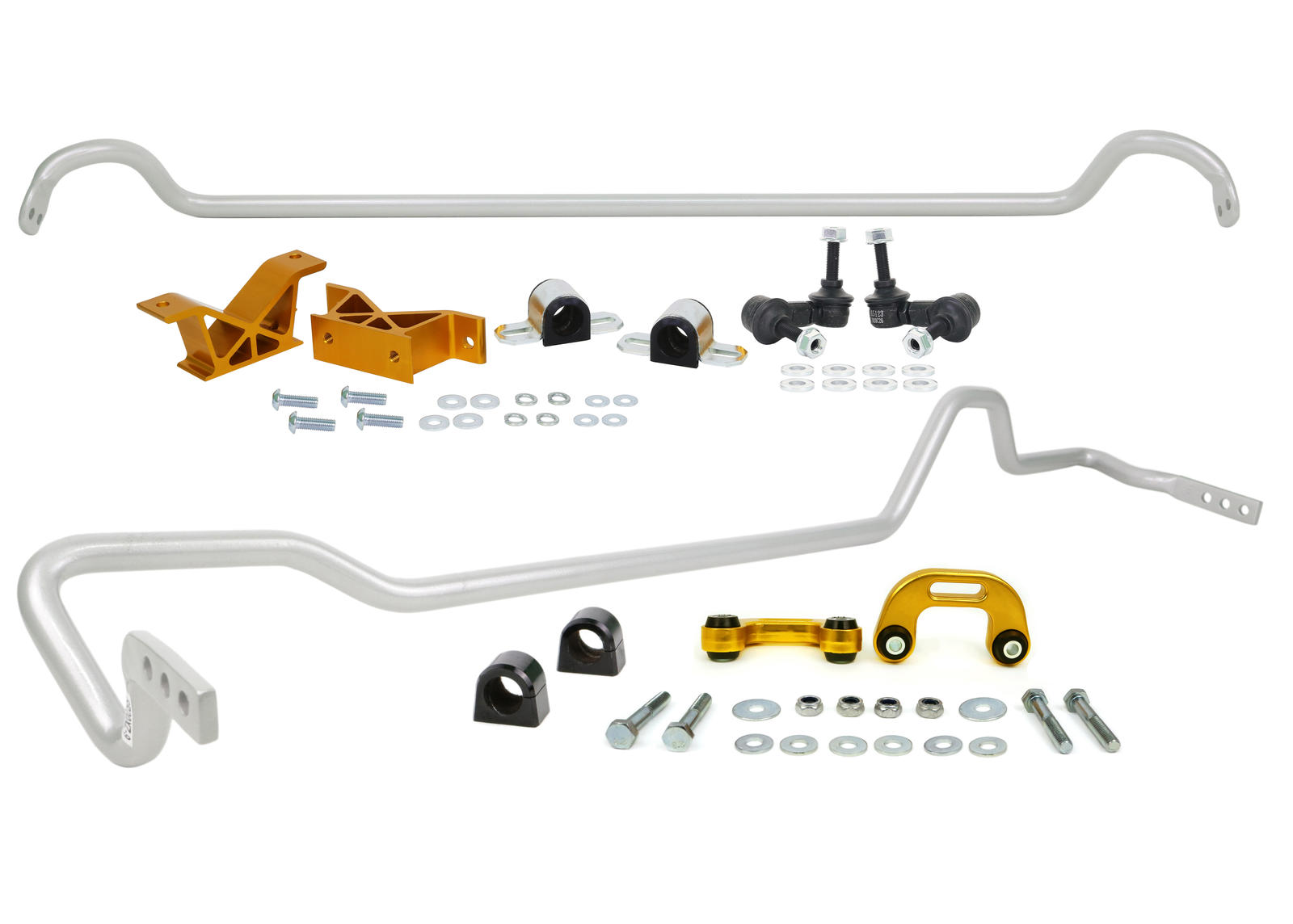

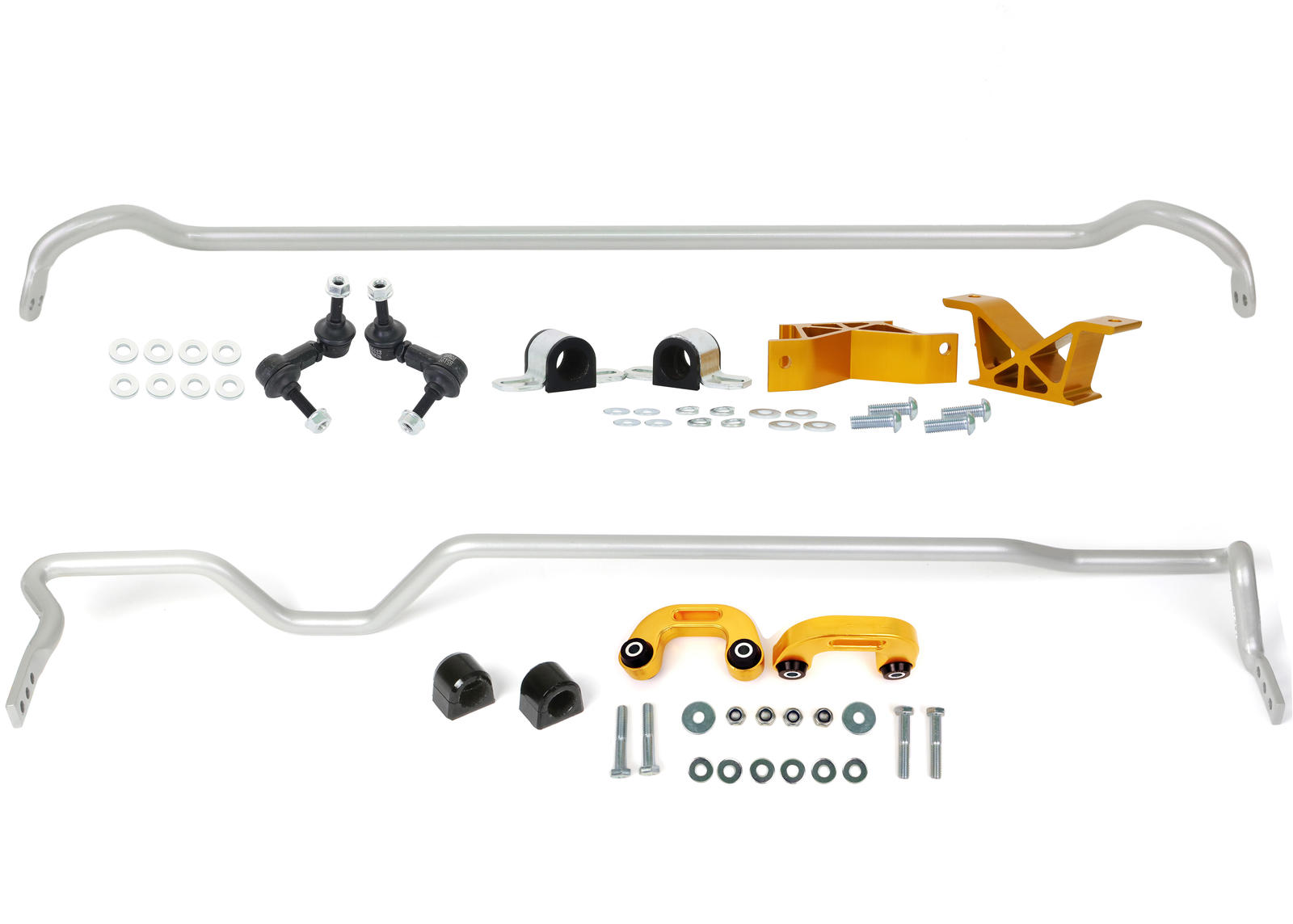

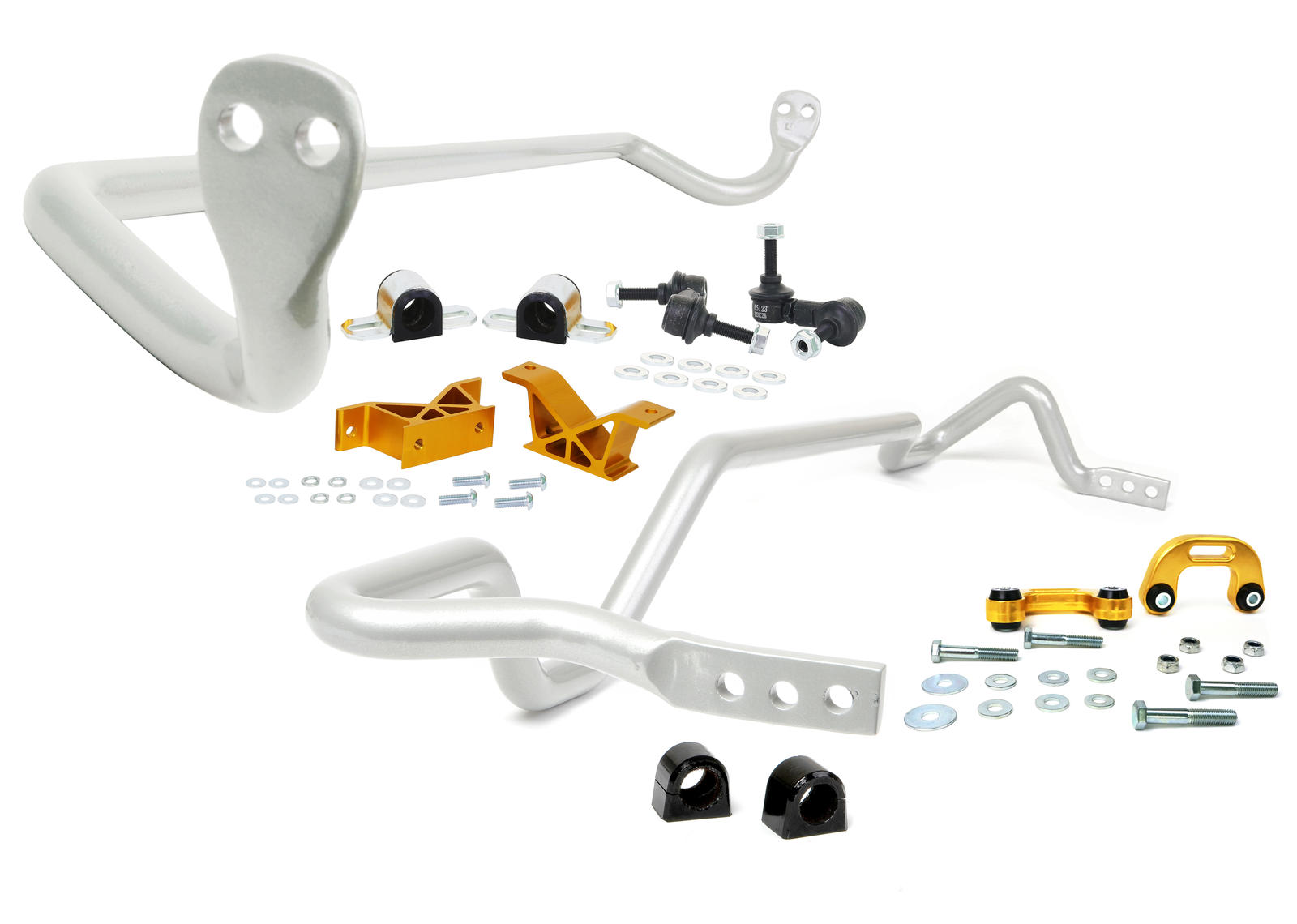

| Components Per | 2 Sway Bars, 4 Links, 2 Brackets, 4 Bushings, 2 Saddles, 8 Bolts, 28 Washers, 8 Bolts |
| Kits Required | 1 |
| Kit Contents | 2 Sway Bars, 4 Links, 2 Brackets, 4 Bushings, 2 Saddles, 8 Bolts, 28 Washers, 8 Bolts |
| EAN | 9319924465873 |
| Installation Time | 3 Hours |
|---|---|
 Installation Difficulty | Tricky installation may take longer then you think if you are not experienced. |
 Wheel Alignment Required | Yes |
| Recommend Wheel Alignment | No Wheel Alignment |
