What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

Front Differential - Drop Kit Land Cruiser 200 Series

Description

The Whiteline differential drop kit when fitted to lifted vehicles corrects CV shaft angles and eliminates the potential issue of popping or breaking a driveshaft. In turn, wear on the CV boots will be reduced and the kit provides provision for fitting of the original protection bash plates.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

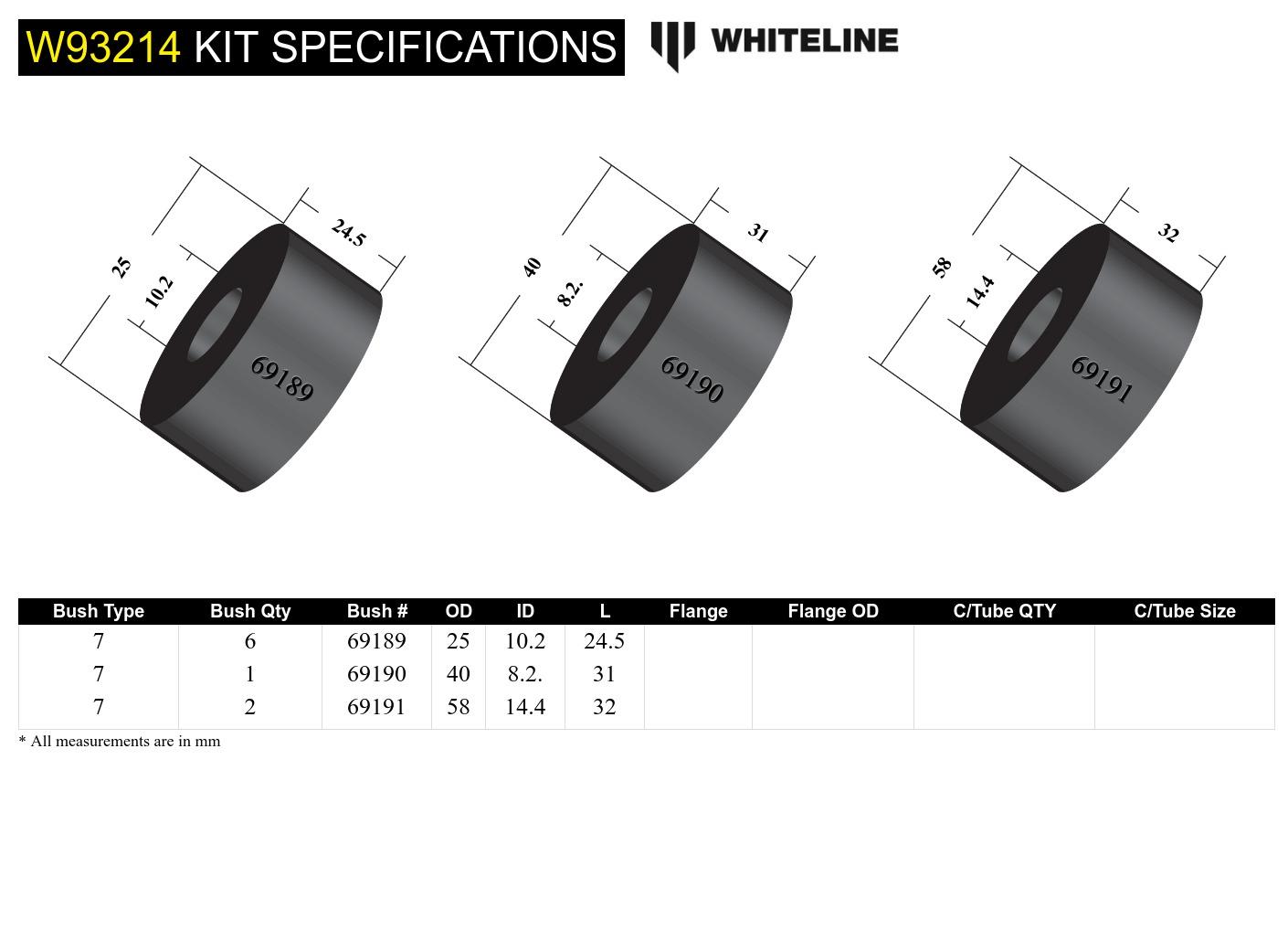

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Similar Bushing Size
7 - Pin Bush With & Without Spigot	6 mm	25 mm	10.2 mm	24.5 mm	Click Here
7 - Pin Bush With & Without Spigot	2 mm	58 mm	14.4 mm	32 mm	Click Here
7 - Pin Bush With & Without Spigot	1 mm	40 mm	8.2. mm	31 mm	Click Here

Bush Type	7 - Pin Bush With & Without Spigot	7 - Pin Bush With & Without Spigot	7 - Pin Bush With & Without Spigot
Bush Quantity	6 mm	2 mm	1 mm
OD (A)	25 mm	58 mm	40 mm
ID (B)	10.2 mm	14.4 mm	8.2. mm
Length (C)	24.5 mm	32 mm	31 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	Similar Bushings
7	6	25	10.2	24.5	Click Here
7	2	58	14.4	32.0	Click Here
7	1	40	8.2.	31.0	Click Here

Bush Type	7	7	7
QTY	6	2	1
OD (A)	25	58	40
ID (B)	10.2	14.4	8.2.
Length (C)	24.5	32.0	31.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Misc. Product Information

More Information
SKU	W93214
Components Per	9 Bushings, 9 Bolts, 14 Washers
Kits Required	1

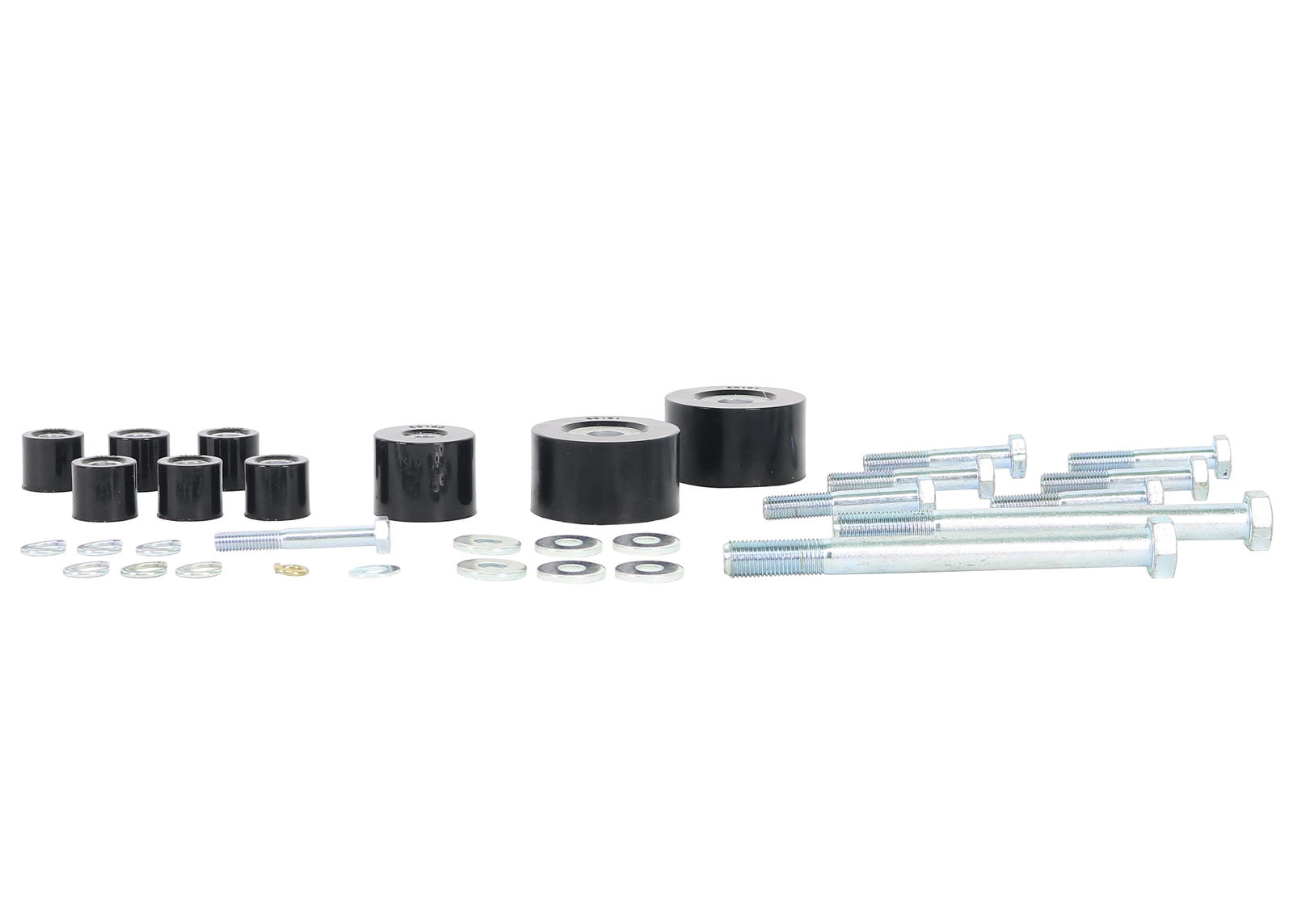

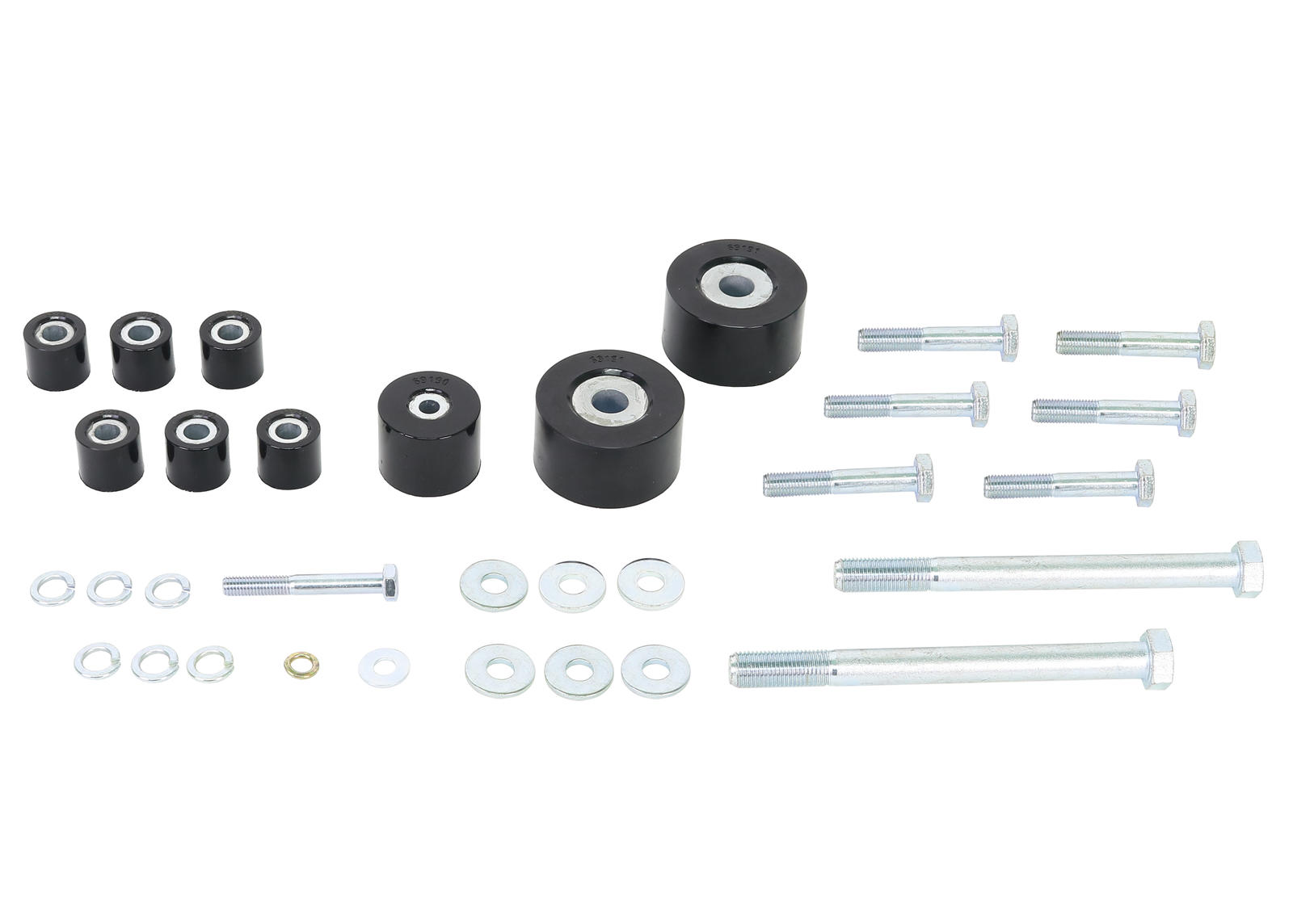

Kit Contents	9 Bushings, 9 Bolts, 14 Washers
Sub brand	Replacement
Product Note	Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 9 Bushings, 9 Bolts & 14 Washers
EAN	9319924461400

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	No

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
