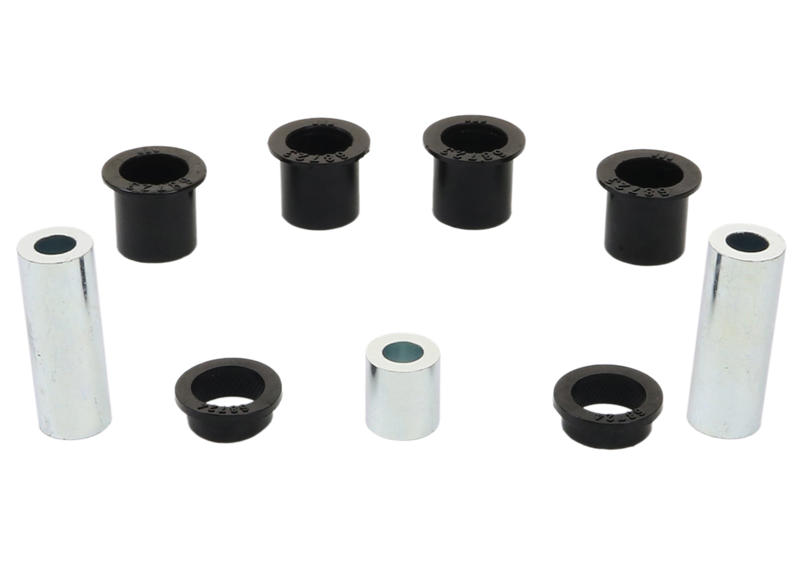

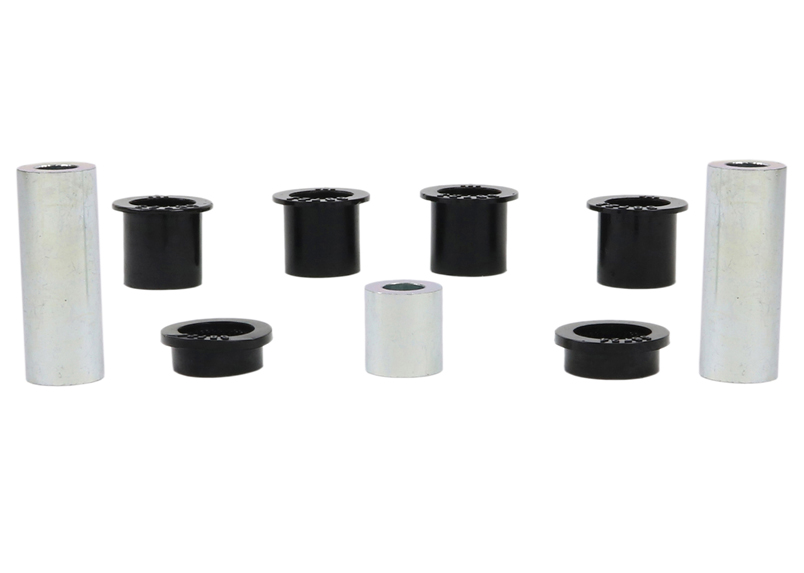

Front Steering Rack and Pinion - Mount Bushing Kit to Suit Mitsubishi Lancer Evolution 10

Description

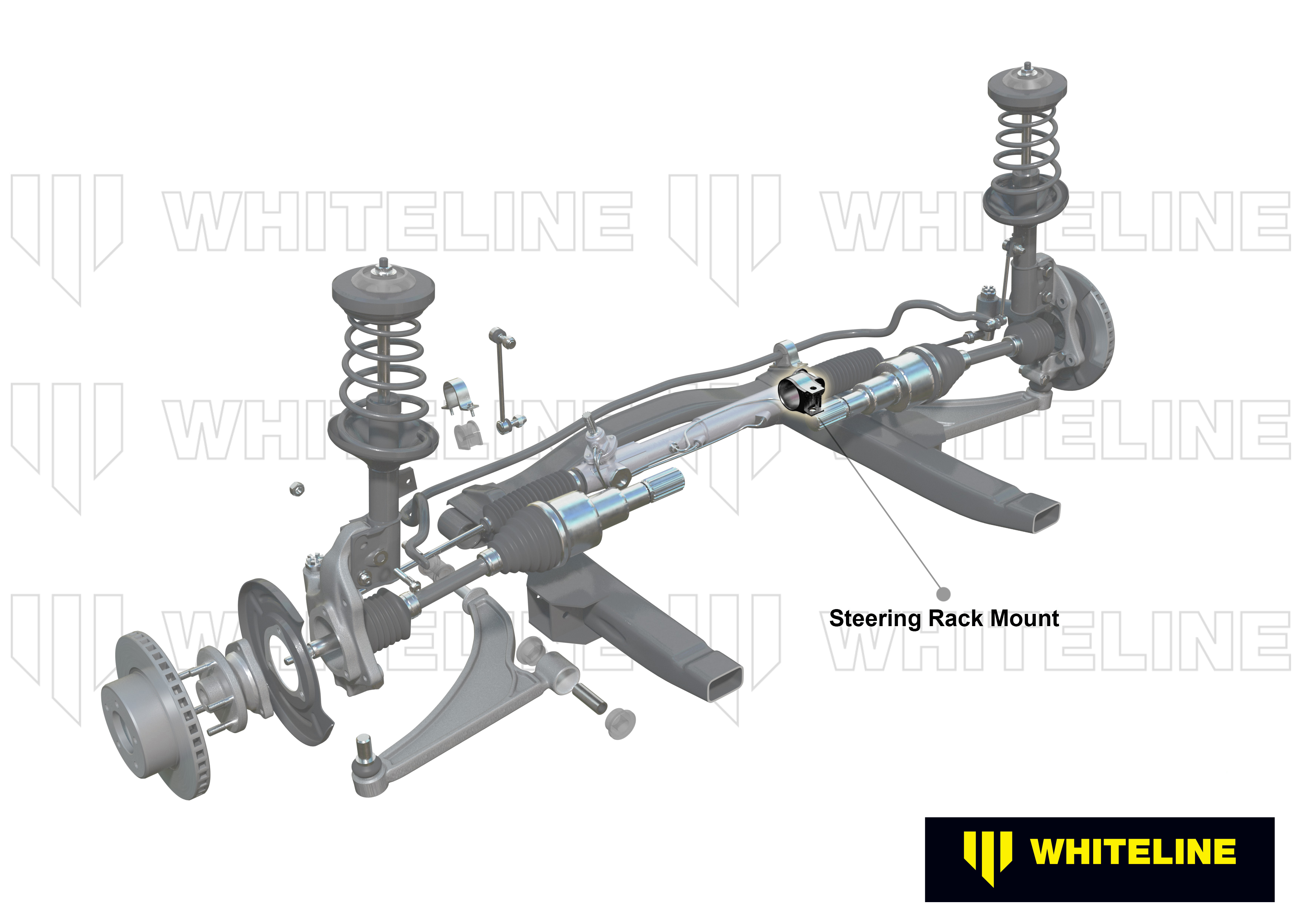

Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tires have all put radically increased loadings on the steering systems of modern cars. Add to that engine bat contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	27 mm	22.2 mm	28.4 mm	2 mm	34.4 mm	2 / 2	22.2x12.2x24 / 22.2x12.2x60.5 mm	Click Here
1 - Shackle Bushing	2 mm	27 mm	22.2 mm	11.5 mm	3.3 mm	32.2 mm	2 / 2	22.2x12.2x24 / 22.2x12.2x60.5 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	2 mm
OD (A)	27 mm	27 mm
ID (B)	22.2 mm	22.2 mm
Length (C)	28.4 mm	11.5 mm
Flange Thickness (D)	2 mm	3.3 mm
Flange OD (E)	34.4 mm	32.2 mm
C/Tube Quantity	2 / 2	2 / 2
C/Tube ODxIDxL	22.2x12.2x24 / 22.2x12.2x60.5 mm	22.2x12.2x24 / 22.2x12.2x60.5 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

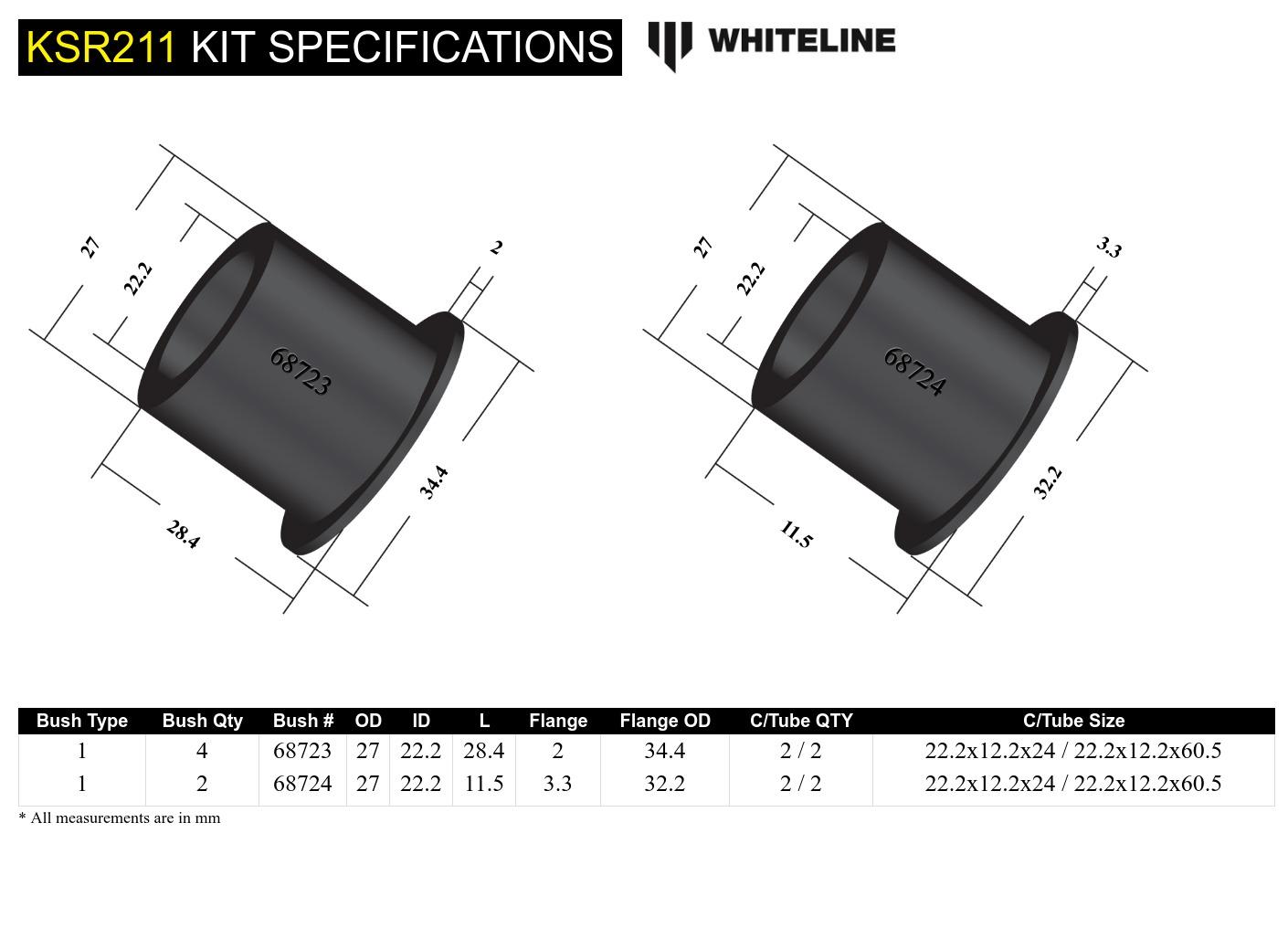

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	27	22.2	28.4	2	34.4	2 / 2	22.2x12.2x24 / 22.2x12.2x60.5	Click Here
1	2	27	22.2	11.5	3.3	32.2	2 / 2	22.2x12.2x24 / 22.2x12.2x60.5	Click Here

Bush Type	1	1
QTY	4	2
OD (A)	27	27
ID (B)	22.2	22.2
Length (C)	28.4	11.5
FL (D)	2	3.3
FLOD (E)	34.4	32.2
C/Tube Qty	2 / 2	2 / 2
C/Tube Size	22.2x12.2x24 / 22.2x12.2x60.5	22.2x12.2x24 / 22.2x12.2x60.5
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Misc. Product Information

More Information
SKU	KSR211
Components Per	6 Bushings, 3 Tubes
Kits Required	1
Kit Contents	6 Bushings, 3 Tubes
Sub brand	Performance
Product Note	Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 6 Bushings & 3 Tubes
EAN	9319924436811

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	No Wheel Alignment
