Lifting a RAV4 Hybrid: fitment, driveline and what to check first

Our Trail Activated application for the 2019 to 2025 RAV4 XA50 covers standard and Hybrid variants, so lifting a RAV4 Hybrid is a straight fitment answer. Plug-in cars are the exception: a RAV4 Prime or any PHEV sits outside the application. Confirm model year, trim and drivetrain before ordering.

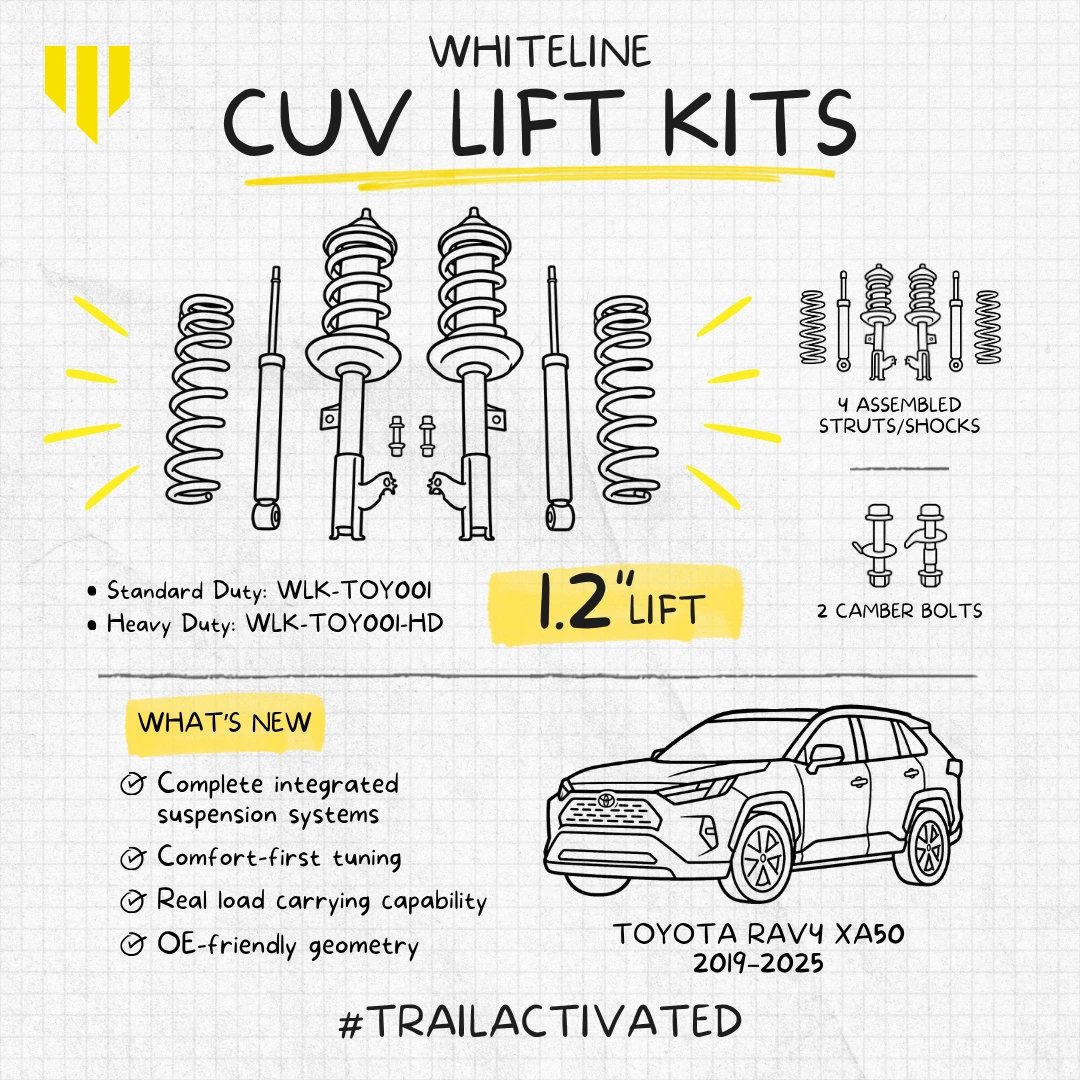

Almost nobody selling suspension separates a RAV4 Hybrid from a gas only RAV4, and that silence does owners no favors. We separate them, and we say the useful part out loud: our 2019 to 2025 A50 application covers the standard car and the Hybrid, on the same hardware, at the same 1.2 inch lift. Plug-in is where we hold the line, because a RAV4 Prime sits outside that application. Here is what changes on a hybrid, which spring to choose, and what to confirm before ordering from our range of lift kits.

What is mechanically different on a hybrid AWD RAV4

On a gas only AWD RAV4, torque reaches the rear wheels the conventional way: a transfer unit takes drive from the transaxle, a propshaft runs the length of the car, and a rear differential splits it to the rear halfshafts.

Hybrid AWD deletes that path entirely. There is no propshaft. An electric motor drive unit sits at the rear of the car, mounted to the rear subframe, driving the rear wheels through its own short halfshafts, so front and rear axles are connected electronically rather than mechanically.

The battery pack adds mass low in the floor, the rear drive unit adds mass at the back, and a hybrid A50 carries a higher curb weight than the gas only version, with distribution shifted rearward. None of that changes whether the kit fits. It changes which spring you should be choosing, which is a far more useful conversation to have.

Why the rear behaves differently when you lift a hybrid

Owners on RAV4 forums keep asking a version of the same question: does raising the rear upset the electric rear drive. It deserves a mechanical answer rather than a shrug. On a gas AWD car, changing rear ride height changes the working angle at the rear differential input and at the halfshaft joints. A hybrid has no propshaft angle in the equation, which removes one variable. What remains is the geometry between the drive unit and the hubs, since that unit bolts to the rear subframe and the subframe bolts to the body. Raise the body and the drive unit goes up while the hubs stay on the ground, so the halfshafts sit at steeper static angles than the factory intended. That constraint governs how much lift any unibody crossover can take, and it is why we engineer the A50 kit at 1.2 inches instead of chasing a headline number.

The second half of the picture is weight. A heavier rear end on a stock rate spring already sits lower in its travel before you load anything, so a bike rack, a rooftop tent or a family's gear brings rear sag on sooner than it would on a gas only car. Our kits retain factory droop travel rather than raising the body on a standard length damper, which matters most on the car that starts deeper in its stroke. Spring rate is the decision, because ride height alone never fixes sag.

Gas, Hybrid and PHEV compared

Read that middle column as the headline. Hybrid is in. Plug-in is out. Those two words get used interchangeably in conversation and they are not interchangeable here, so if your car plugs into a wall, talk to us first.

The heavy duty version shares the lift height, install time, alignment requirement, warranty and price, and swaps in King heavy duty rear springs described on our US listings as suited for 440 lb constant loads.

Standard duty or heavy duty on a hybrid

A hybrid carrying more mass from the factory is not on its own a reason to jump to heavy duty. What decides it is whether the weight is permanent.

Heavy duty kits are built for consistently loaded vehicles and are not intended for regular unloaded use. If your hybrid lives with a tent, drawers or gear in it, the heavy duty rear spring is what holds ride height. If it runs empty to work and back and loads up twice a year, order the standard duty kit and keep the ride quality. Send us your model year, trim and drivetrain either way, and we will confirm the application before anything ships.

FAQs

Looking for more information about lifting a RAV4 Hybrid? Below we answer the most commonly asked questions

See the Trail Activated kit for the 2019 to 2025 RAV4 A50, standard and Hybrid, then confirm your trim with us before ordering.
