GS1-FRD008

Grip Series Performance Suspension Kit Ford Focus RS Mk3 LZ 2016-2019

Grip Series Performance Suspension Kit Ford Focus RS Mk3 LZ 2016-2019

Item Price

$1152.88

SKU	GS1-FRD008
Warranty	Limited Lifetime
Installation Time	7 Hours
Fitting Position	Front and Rear

Select your car to check fitment.

in stock

Ships within 24hrs

Description

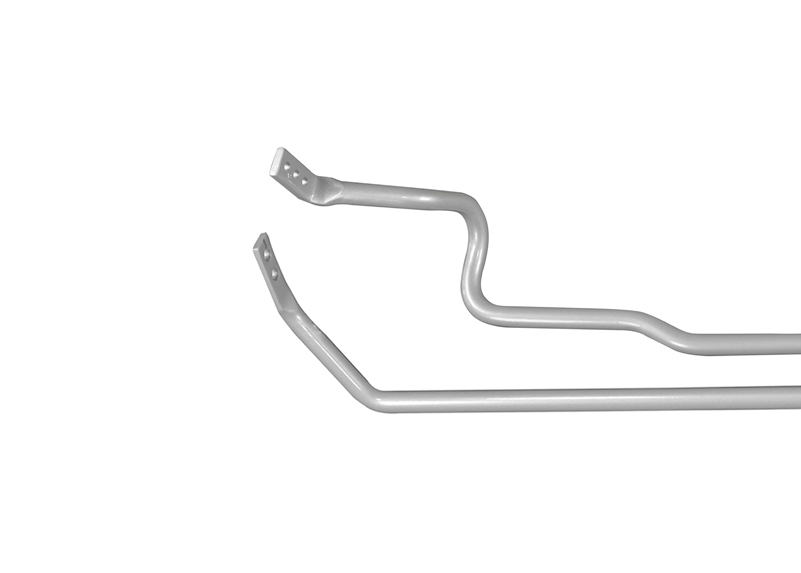

The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature front and rear adjustable (where applicable) sway bars, drop links and performance lowering springs. Whiteline Springs deliver improved vehicle performance while maintaining safety and ride quality characteristics. This kit contains 3.6kg/mm (201lb/in) front rated springs that provide a 15mm drop while the 4.3kg/mm (241lb/in) rated rears deliver a desirable 30mm to the vehicle. Boasting a 26mm 3 point adjustable front sway bar and 22mm rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this GS1 Kit.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Sway Bar Kit	Location	Sway Bar	Diameter (mm)	Diameter (in) Fraction	Diameter (in) Decimal	Material	Sway Bar Adjustment Type	Sway Bar Link Included
BFK009	Front	BFF96Z	26	1 1/32"	1.023	Solid Spring Steel	3 Point Adjustable	Yes
BFK009	Rear	BFR78Z	22	7/8"	0.866	Solid Spring Steel	2 Point Adjustable	Yes

Sway Bar Kit	BFK009	BFK009
Location	Front	Rear
Sway Bar	BFF96Z	BFR78Z
Diameter (mm)	26	22
Diameter (in) Fraction	1 1/32"	7/8"
Diameter (in) Decimal	1.023	0.866
Material	Solid Spring Steel	Solid Spring Steel
Sway Bar Adjustment Type	3 Point Adjustable	2 Point Adjustable
Sway Bar Link Included	Yes	Yes

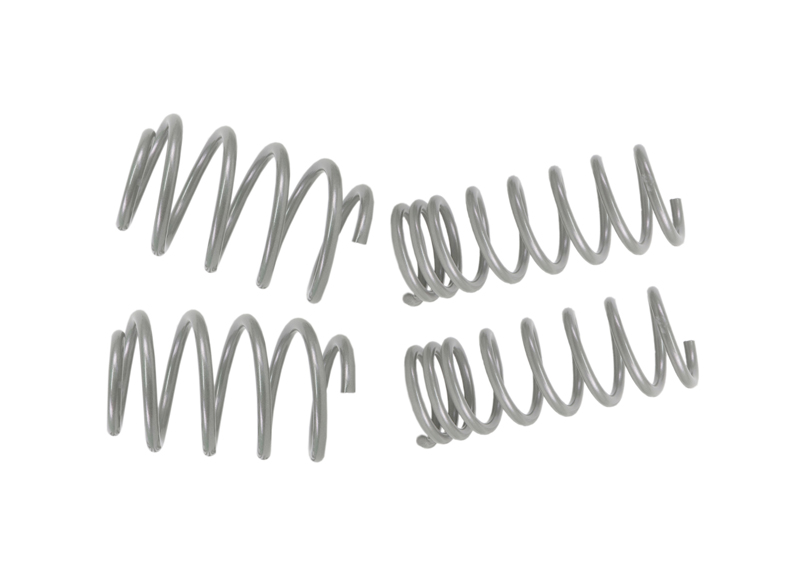

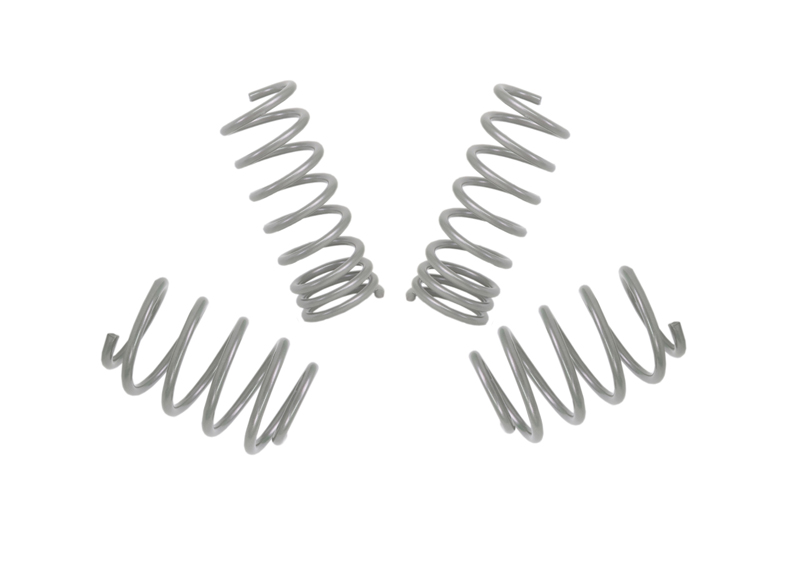

Location	Lowering (mm)	Lowering (in)	Spring Rate
Front	15	0.591	3.6kg/mm (202lb/in)
Rear	30	1.181	4.3kg/mm (241lb/in)

Location	Front	Rear
Lowering (mm)	15	30
Lowering (in)	0.591	1.181
Spring Rate	3.6kg/mm (202lb/in)	4.3kg/mm (241lb/in)

Misc. Product Information

More Information
SKU	GS1-FRD008

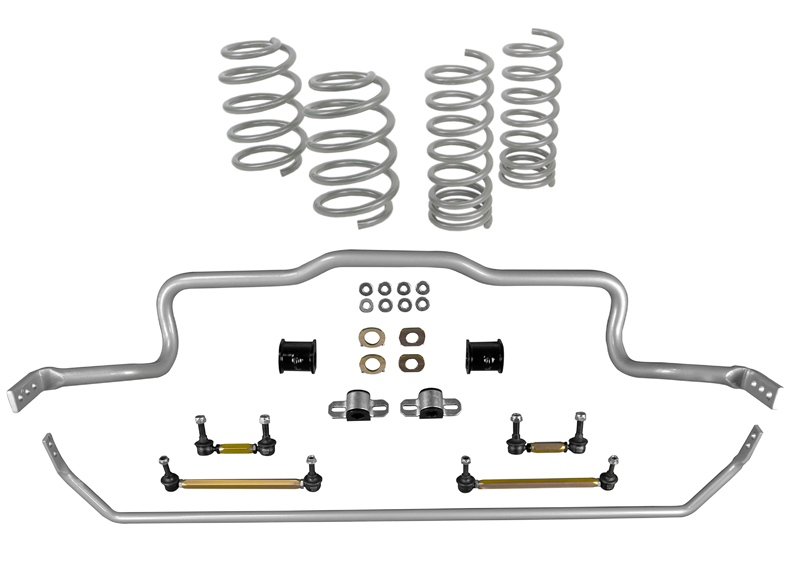

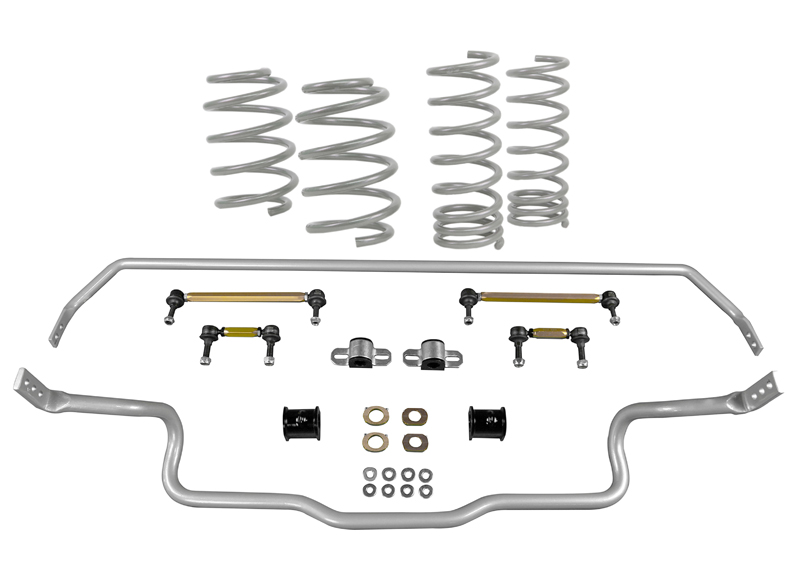

Components Per	4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 8 Washers
Kits Required	1
Kit Contents	4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 8 Washers
Sub brand	Performance
Product Note	Reduces body roll and lowers your centre of gravity for improved grip and stability; a complete, premium upgrade. Includes: 26mm 3-Point Front, 22mm Rear 2-point Rear adjustable Sway Bars, Links, and Front & Rear Coil Springs.
EAN	9319924437009

Installation & Fitment Guide

More Information
Installation Time	7 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front and Rear Wheel Alignment
