What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

GS1-FRD004

Grip Series Performance Suspension Kit Ford Focus ST Mk3 2012-2013

Grip Series Performance Suspension Kit Ford Focus ST Mk3 2012-2013

Grip Series Kit - Ford Focus ST

Item Price

$1040.88

SKU	GS1-FRD004
Warranty	3 Years
Installation Time	7 Hours

Select your car to check fitment.

in stock

Ships within 24hrs

Description

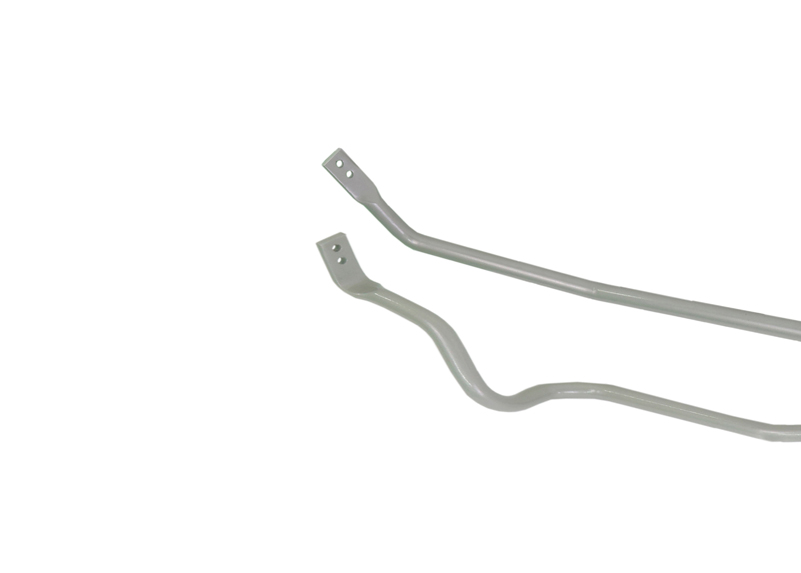

The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature front and rear adjustable (where applicable) sway bars, drop links and performance lowering springs. Whiteline Springs deliver improved vehicle performance whilst maintaining safety and ride quality characteristics. This kit contains 4.2kg/mm (235lb/in) front rated springs that provide a 35mm drop while the 3.8kg/mm (213lb/in) rated rears deliver a desirable 35mm to the vehicle. Boasting a 24mm 2 point adjustable front sway bar and 24mm 2 point adjustable rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this GS1 Kit.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Sway Bar Kit	Location	Sway Bar	Diameter (mm)	Diameter (in) Fraction	Diameter (in) Decimal	Material	Sway Bar Adjustment Type	Sway Bar Link Included
BMK012	Front	BMF64Z	24	61/64"	0.944	Solid Spring Steel	2 Point Adjustable	No
BMK012	Rear	BMR93Z	24	61/64"	0.944	Solid Spring Steel	2 Point Adjustable	No

Sway Bar Kit	BMK012	BMK012
Location	Front	Rear
Sway Bar	BMF64Z	BMR93Z
Diameter (mm)	24	24
Diameter (in) Fraction	61/64"	61/64"
Diameter (in) Decimal	0.944	0.944
Material	Solid Spring Steel	Solid Spring Steel
Sway Bar Adjustment Type	2 Point Adjustable	2 Point Adjustable
Sway Bar Link Included	No	No

Location	Lowering (mm)	Lowering (in)	Spring Rate

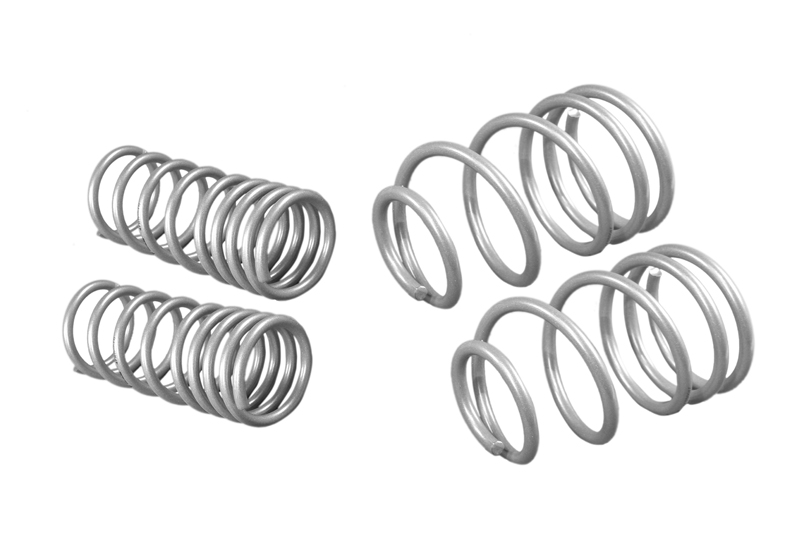

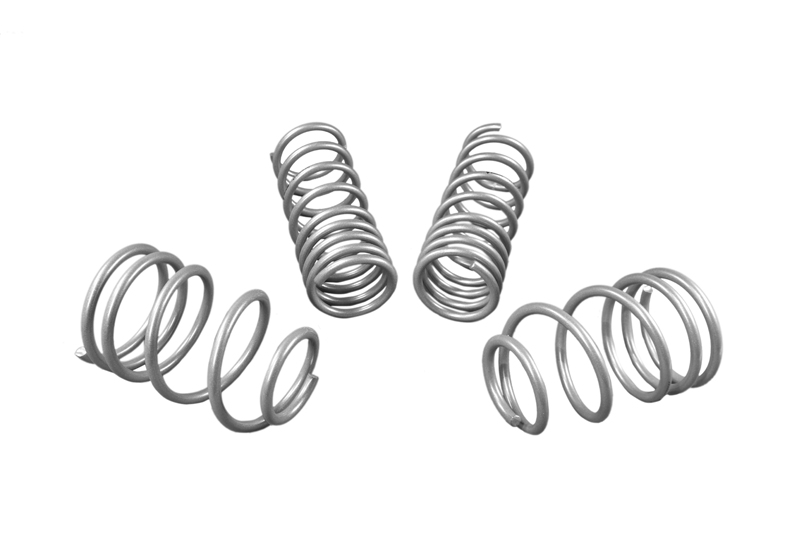

Front	35	1.378	4.2kg/mm (235lb/in)
Rear	35	1.378	3.8kg/mm (213lb/in)

Location	Front	Rear
Lowering (mm)	35	35
Lowering (in)	1.378	1.378
Spring Rate	4.2kg/mm (235lb/in)	3.8kg/mm (213lb/in)

Misc. Product Information

More Information
SKU	GS1-FRD004

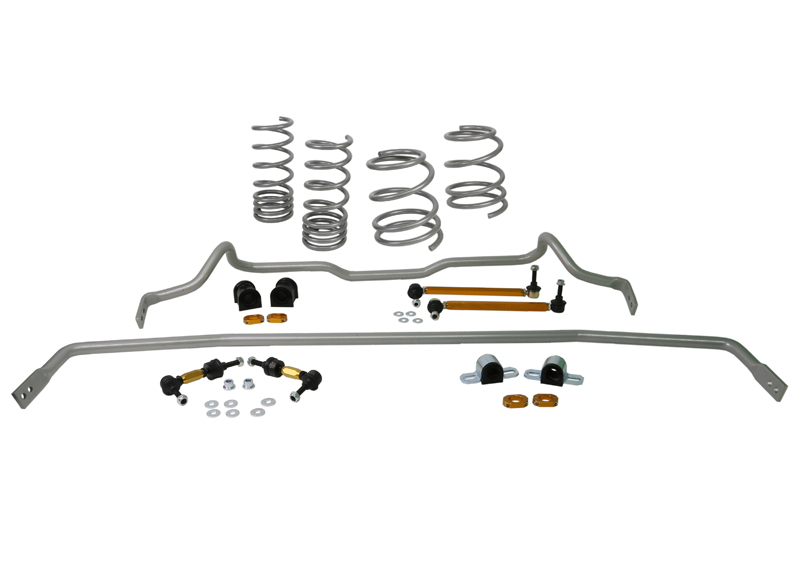

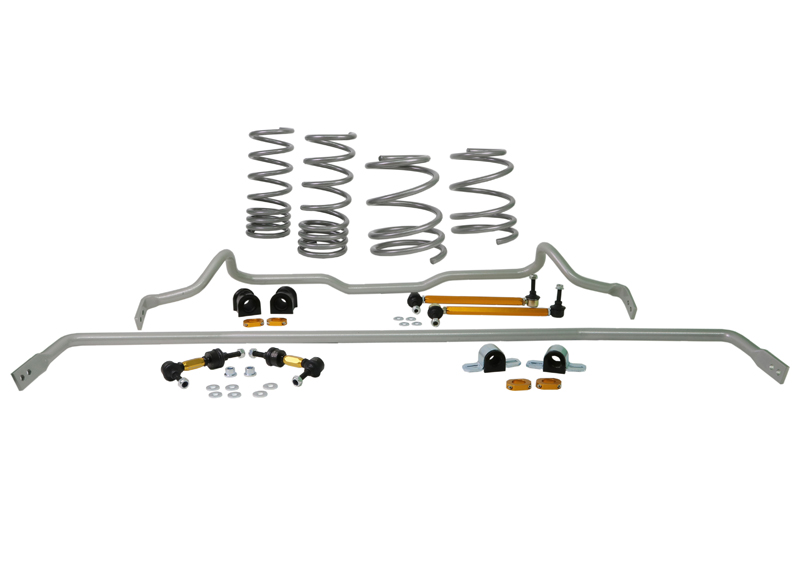

Components Per	4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 10 Washers, 2 Nuts
Kits Required	1
Kit Contents	4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 10 Washers, 2 Nuts
EAN	9319924408092

Installation & Fitment Guide

More Information
Installation Time	7 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	No Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item, we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Whiteline are covered by a national warranty. The product's warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Whiteline with a receipt to be eligible for a refund. See full warranty claim criteria here.
