What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

GS1-VWN005

Grip Series Performance Suspension Kit VW Golf MK7 & MK7.5 GTI 2013-2020

Grip Series Performance Suspension Kit VW Golf MK7 & MK7.5 GTI 2013-2020

Item Price

$1123.88

SKU	GS1-VWN005
Warranty	Limited Lifetime
Installation Time	7 Hours
Fitting Position	Front and Rear

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature front and rear adjustable (where applicable) sway bars, drop links and performance lowering springs. Whiteline Springs deliver improved vehicle performance while maintaining safety and ride quality characteristics. This kit contains 4.1kg/mm (229lb/in) front rated springs that provide a 30mm drop while the 4.3kg/mm (241lb/in) rated rears deliver a desirable 35mm to the vehicle. Boasting a 24mm 2 point adjustable front sway bar and 22mm 2 point adjustable rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this GS1 Kit.

*Tax is calculated at checkout based on local regions tax laws. For international orders, tax is removed, local import duties or taxes may apply but will not be charged by us.

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

Kit Specifications

Sway Bar Kit	Location	Sway Bar	Diameter (mm)	Diameter (in) Fraction	Diameter (in) Decimal	Material	Sway Bar Adjustment Type	Sway Bar Link Included

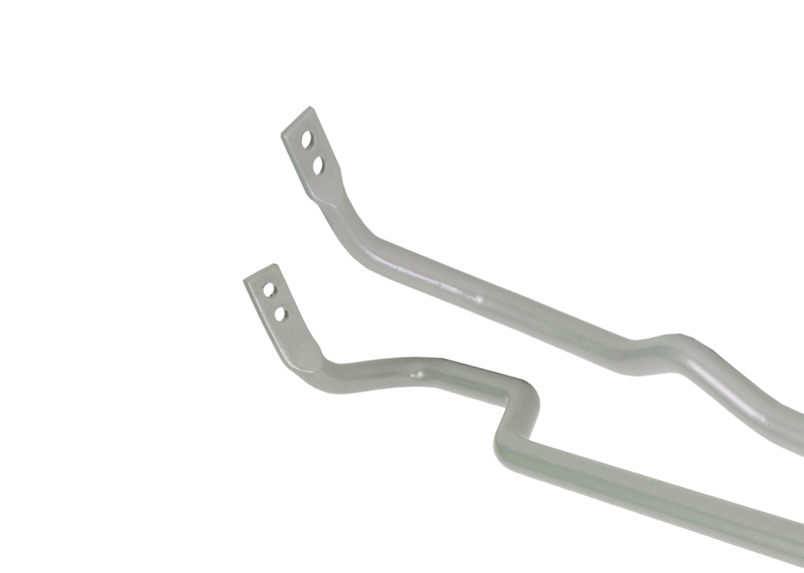

BWK018	Front	BWF21XZ	24	61/64"	0.944	Solid Spring Steel	2 Point Adjustable	Yes
BWK018	Rear	BWR24Z	22	7/8"	0.866	Solid Spring Steel	2 Point Adjustable	Yes

Sway Bar Kit	BWK018	BWK018
Location	Front	Rear
Sway Bar	BWF21XZ	BWR24Z
Diameter (mm)	24	22
Diameter (in) Fraction	61/64"	7/8"
Diameter (in) Decimal	0.944	0.866
Material	Solid Spring Steel	Solid Spring Steel
Sway Bar Adjustment Type	2 Point Adjustable	2 Point Adjustable
Sway Bar Link Included	Yes	Yes

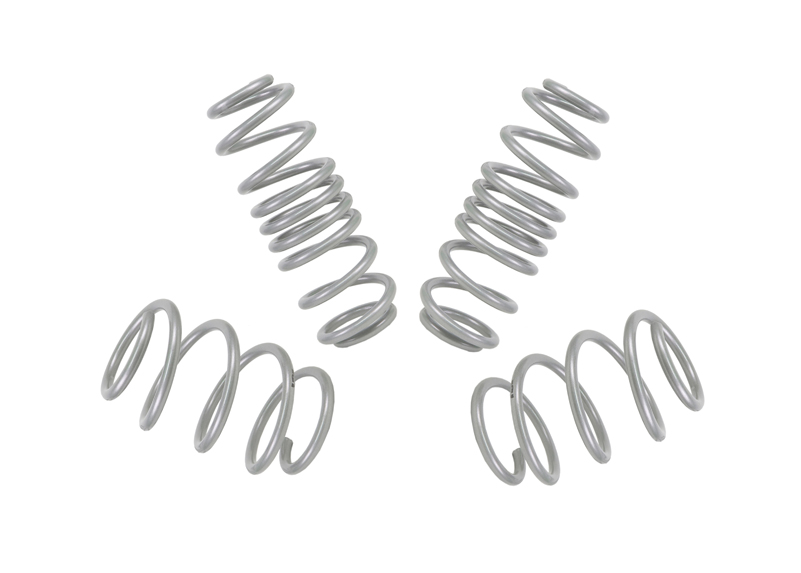

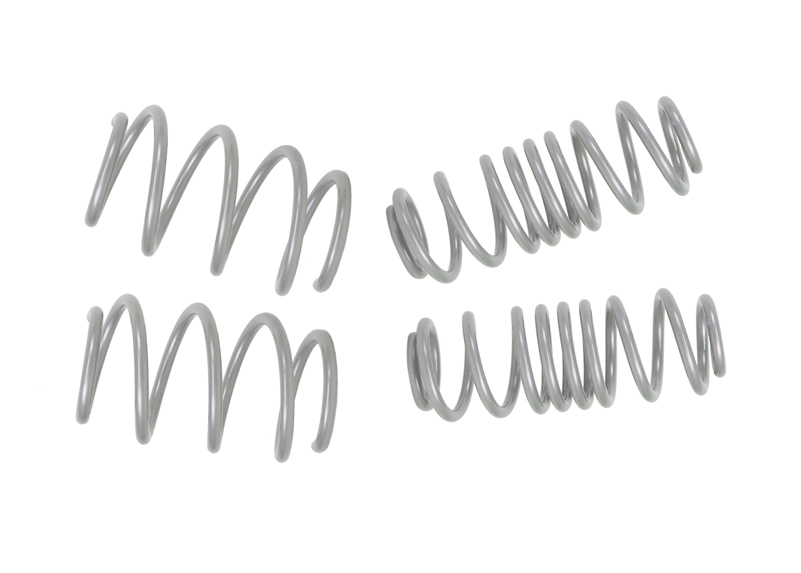

Location	Lowering (mm)	Lowering (in)	Spring Rate
Front	30	1.181	4.1kg/mm (230lb/in)
Rear	25	1	4.3kg/mm (241lb/in)

Location	Front	Rear
Lowering (mm)	30	25
Lowering (in)	1.181	1
Spring Rate	4.1kg/mm (230lb/in)	4.3kg/mm (241lb/in)

Misc. Product Information

More Information
SKU	GS1-VWN005
Components Per	4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Saddles, 2 Lateral Locks, 2 Plates, 4 Spacers, 4 Bolt
Kits Required	1

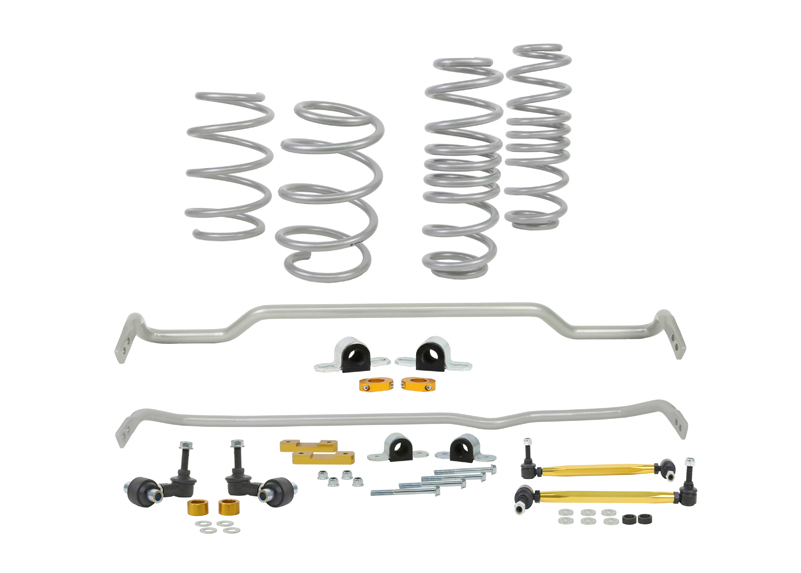

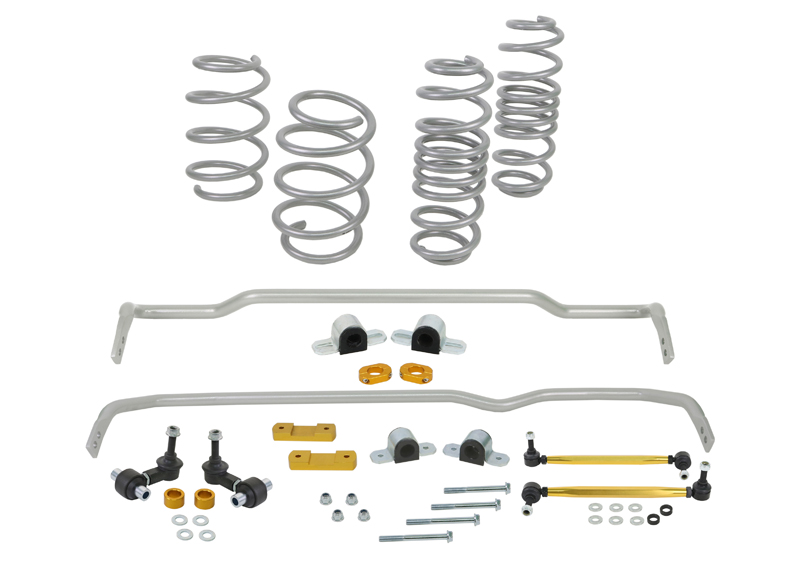

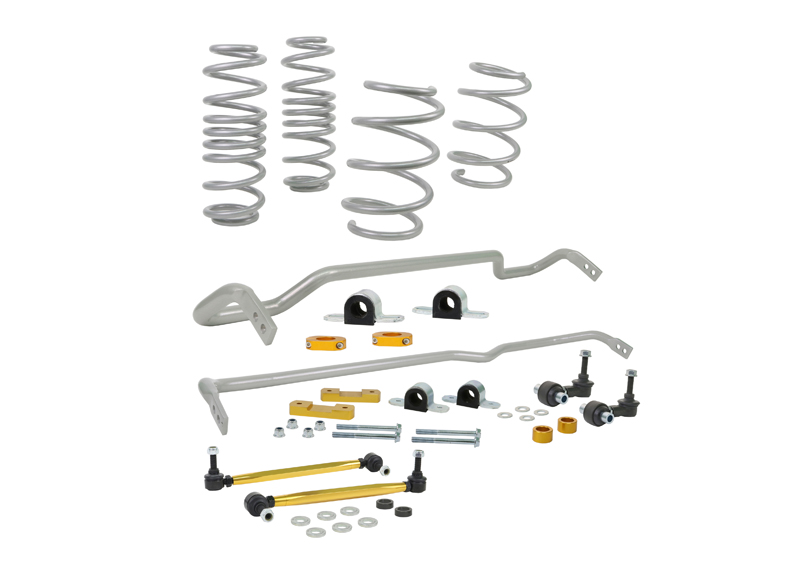

Kit Contents	4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Saddles, 2 Lateral Locks, 2 Plates, 4 Spacers, 4 Bolts, 10 Washers, 4 Nuts
Sub brand	Performance
Product Note	Reduces body roll and lowers your centre of gravity for sharper grip and stability through corners; a complete, premium upgrade. Includes: 24mm 2-Point Front, 22mm 2-Point Rear Adjustable Sway Bars, Links and Front and Rear Coil Springs.
EAN	9319924408344

Installation & Fitment Guide

More Information
Installation Time	7 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front and Rear Wheel Alignment
