- Following pre-upgrade track testing, the BRZ goes onto the hoist for a complete suspension overhaul ahead of Mighty Car Mods Drift Night.
- Worn factory bushings are replaced throughout the car, including suspension arms, differential mounts, subframe inserts, and a transmission mount insert to restore precision and reduce unwanted movement.
- Adjustable lower control arms and toe arms are installed to unlock proper alignment control, supported by upgraded anti roll bars and aanti roll bar links to reduce vehicle sway and refine balance.
- Whiteline lowering springs complete the suspension package, followed by a full wheel alignment and a tyre and wheel upgrade using Bridgestone Potenza Sport tyres on 8.5-inch Rotiform wheels.
- With only a week to complete the build, the BRZ successfully handles the 10-hour drive to Sydney and delivers a sharper, more predictable performance on the skidpan.
After completing the pre-upgrade track testing, the Whiteline BRZ build was ready to move from baseline results to meaningful development. The data highlighted exactly where the Gen 1 BRZ felt strong and where its ageing suspension was beginning to hold it back. With Mighty Car Mods Drift Night in Sydney only a week away, there was limited time to rebuild the car before it needed to survive a 10-hour drive and a full evening on the skidpan.

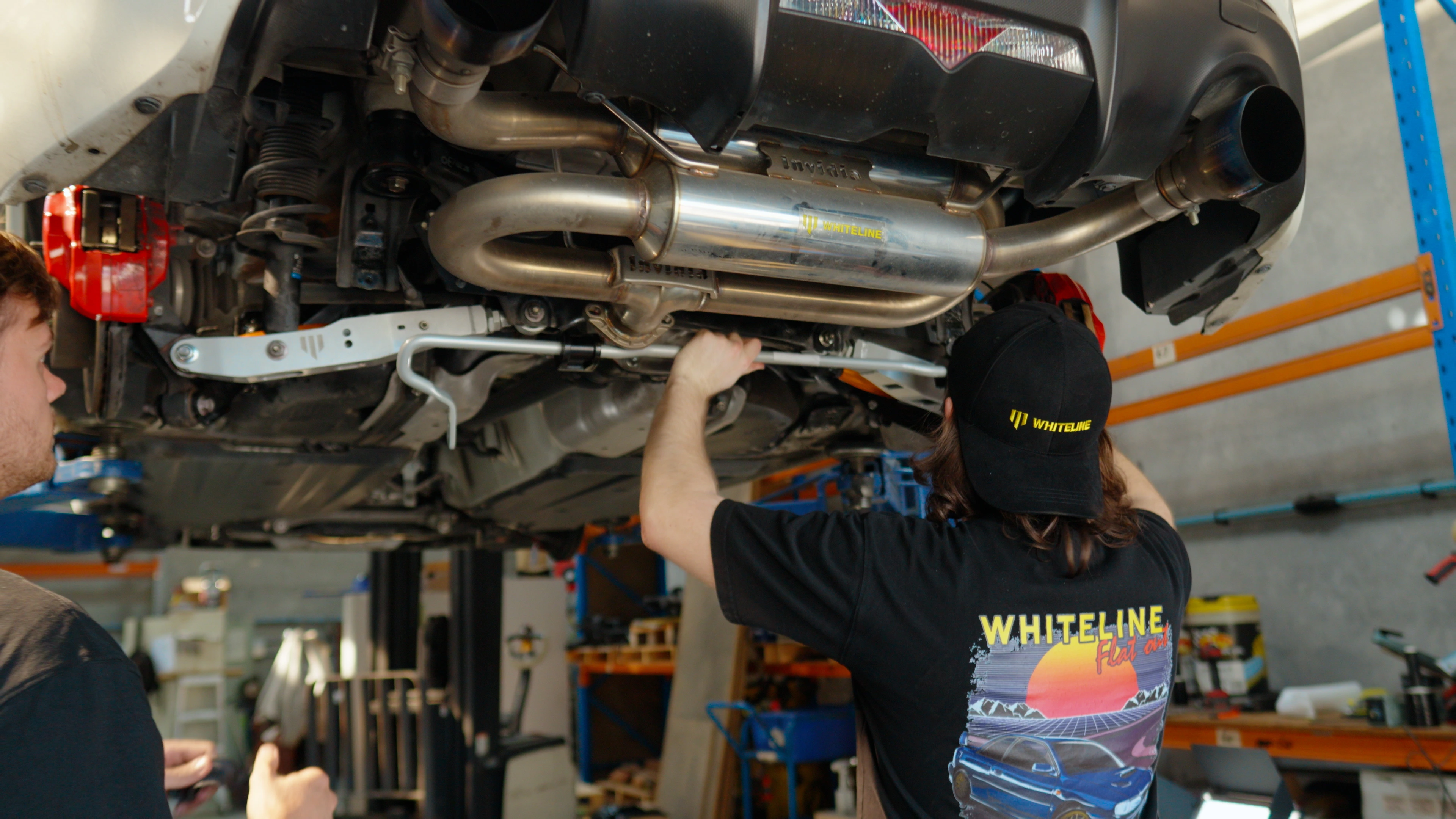

The BRZ went onto the hoist for a complete suspension overhaul. The objective was to restore precision, introduce proper adjustability, reduce unwanted movement, and create a balanced setup capable of handling both grip driving and controlled oversteer.
Assessing the Factory Setup
Once lifted, the weaknesses were clear. The factory bushings were worn and cracking, the end links had deteriorated, and the rear control arms offered no alignment adjustment. While the car performed respectably during baseline testing, pushing further without addressing these issues would only increase inconsistency.
This stage of the build reflects what many owners discover when researching the best BRZ upgrades. Before increasing power, the suspension foundation must be corrected. Precision, stability, and adjustability unlock more usable performance than horsepower alone.

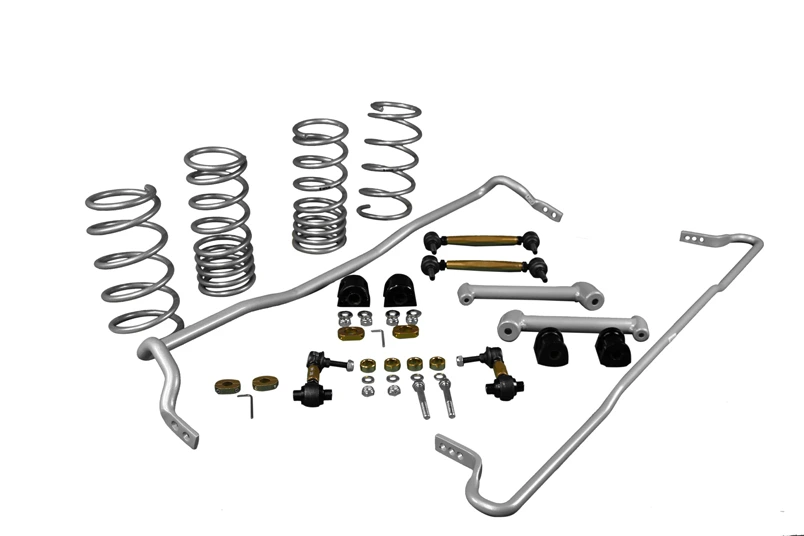

Suspension Upgrades
Rather than replacing isolated components, this phase focused on building a complete handling package. The upgrades combined refreshed bushings, adjustable arms, sway control improvements, and revised ride height to create a cohesive system. This approach defines properly engineered Whiteline BRZ suspension upgrades, where each component supports the next to improve overall balance and consistency.
Bushings
The first major step was addressing worn factory rubber throughout the suspension and drivetrain. As bushings degrade, they introduce unwanted compliance that allows suspension geometry to shift under load. This reduces predictability and dulls driver feedback, particularly during hard cornering or quick transitions.
By refreshing key bushings across the car, the BRZ regained structural integrity and mechanical precision.
Suspension Arm Bushings: The control arms and trailing arms were fitted with upgraded bushings to restore alignment consistency. Under braking, acceleration, and lateral load, these bushings now maintain geometry far more effectively, improving tyre contact and stability.
This foundational upgrade ensures that the rest of the suspension components operate correctly rather than compensating for worn rubber.
Differential Mount Inserts: Differential mount inserts were installed to reduce drivetrain movement. Excess movement in the diff can soften throttle response and introduce slack during on and off power transitions, particularly noticeable when attempting to control rotation on the skidpan. By stiffening the differential mounts, power delivery becomes more direct and predictable while maintaining road usability.
Subframe Insert Bushings: Rear subframe inserts were added to further stabilise the rear assembly. Subframe movement can subtly affect handling precision, especially during rapid direction changes. Reinforcing this area improves rear-end consistency and helps maintain confidence under load.
Transmission Mount Insert: A transmission mount insert completed the driveline reinforcement. Reducing gearbox movement sharpens shift feel and improves mechanical connection between driver and drivetrain. Although subtle compared to larger suspension components, it contributes significantly to the overall cohesiveness of the build.
Lower Control Arms
With the bushings refreshed, attention turned to alignment capability. The factory rear lower control arms lacked adjustability, which becomes problematic once ride height is altered.
Adjustable lower control arms were installed to correct camber after lowering, optimise tyre contact patch, improve stability under load, and allow tuning flexibility for grip or drift balance. This upgrade transforms alignment from a compromise into a controllable variable.
Toe Arms
Adjustable rear toe arms were added to further refine handling balance. Rear toe has a substantial influence on how the BRZ behaves at speed and during transitions. Toe-in enhances high-speed stability, toe-out increases rotation, and incorrect settings can make the car unpredictable.
With adjustable toe arms in place, the car can be dialled in precisely rather than relying on fixed factory geometry.
Anti Roll Bars
Upgraded front and rear anti roll bars were installed to reduce vehicle sway and improve weight transfer control. Anti roll bars play a critical role in defining how the chassis loads through corners, affecting steering response, balance, and transition behaviour.
The chosen setup aimed to maintain strong front-end grip while allowing the rear to rotate progressively. The rear anti roll bar was set to a middle stiffness setting, while the front was kept slightly softer to preserve balance. Reducing vehicle sway enhances steering precision and makes transitions more deliberate in a rear-wheel-drive platform.
Anti Roll Bar Links
Adjustable anti roll bar links were installed to ensure proper operation at the revised ride height. Correct link length prevents preload and binding, allowing the anti roll bars to function consistently and deliver their intended effect.
These supporting components ensure the larger anti roll bar upgrades perform as designed.
Lowering Springs
Whiteline lowering springs completed the suspension transformation. Lowering the car improves centre of gravity and reduces excess movement while refining stance and chassis response.
The benefits include improved cornering traction, reduced chassis movement, sharper steering feel, and a more purposeful stance. All suspension components were torqued at ride height to prevent premature bushing stress and ensure long-term reliability.
Tyres and Rims Upgrade
With the suspension sorted, attention turned to tyres and wheels.
The BRZ received Bridgestone Potenza Sport tyres in a 225 width, mounted to 8.5-inch Rotiform wheels. The wider wheel supports the tyre more effectively, while the performance-focused compound enhances front-end bite and overall grip.
A full wheel alignment followed, bringing together the newly installed adjustable arms and ensuring the geometry matched the intended balance of the build.

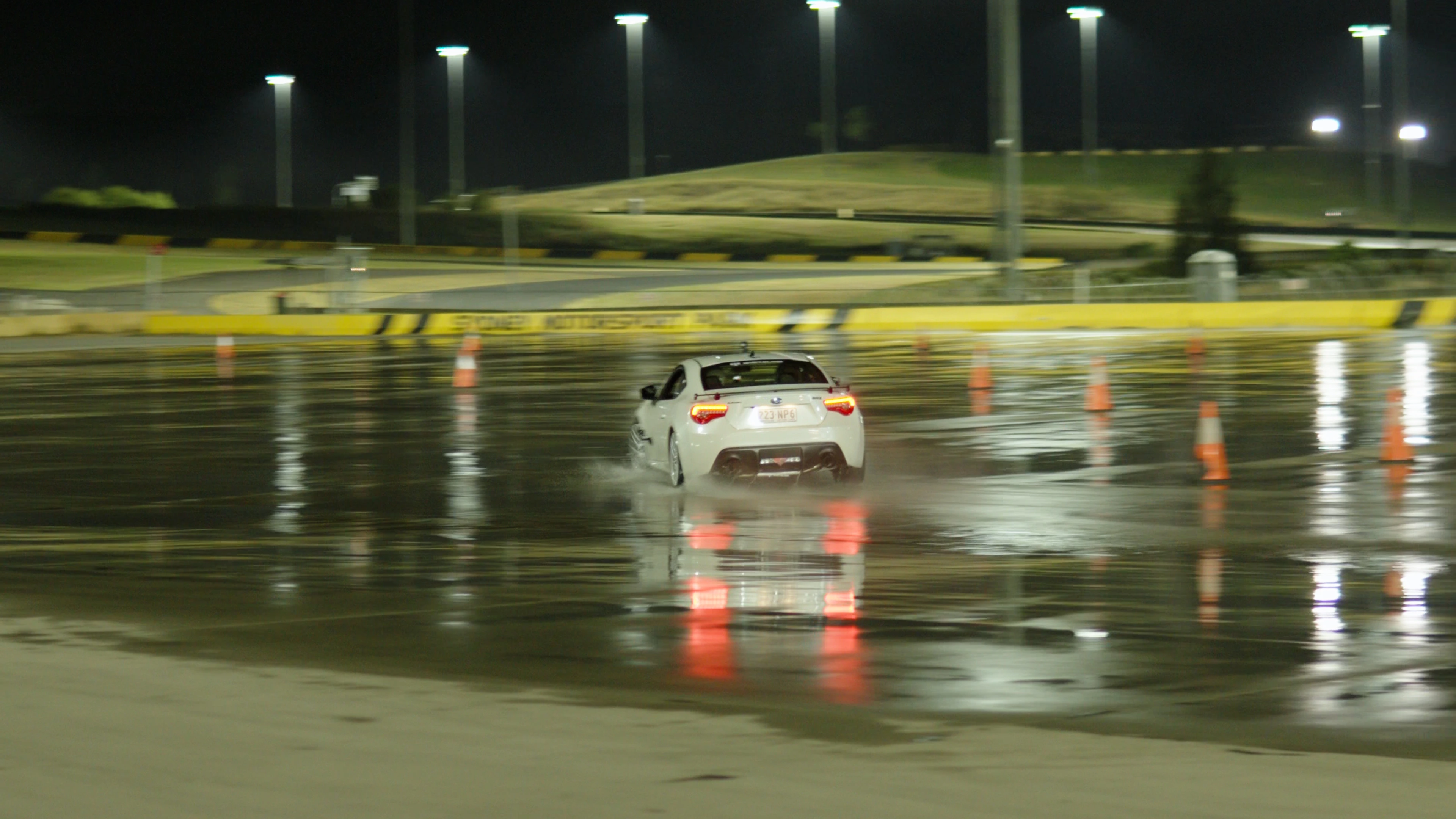

Road Test and Drift Night
Before reaching the skidpan, the BRZ first had to prove itself on the road. The 10-hour drive to Sydney confirmed that the suspension overhaul had been completed correctly and that the car remained composed over long distance.
At Mighty Car Mods Drift Night, the improvements became clear. The car felt more stable, more predictable, and far more responsive than during its earlier testing phase. The combination of refreshed bushings, adjustable arms, reduced vehicle sway, and improved tyre support created a chassis that was controllable and confidence-inspiring.
Where the car once relied on factory compliance, it now operated as a properly sorted performance platform.
Where the Build Now Stands
With its suspension foundation rebuilt and aligned correctly, the Gen 1 BRZ has progressed well beyond stock limitations. Having established a clear baseline during the earlier track session, the improvements can now be measured against real-world performance rather than assumption.
BRZ Suspension FAQs
Need more information about BRZ suspension upgrades? Below we answer the most commonly asked questions.
