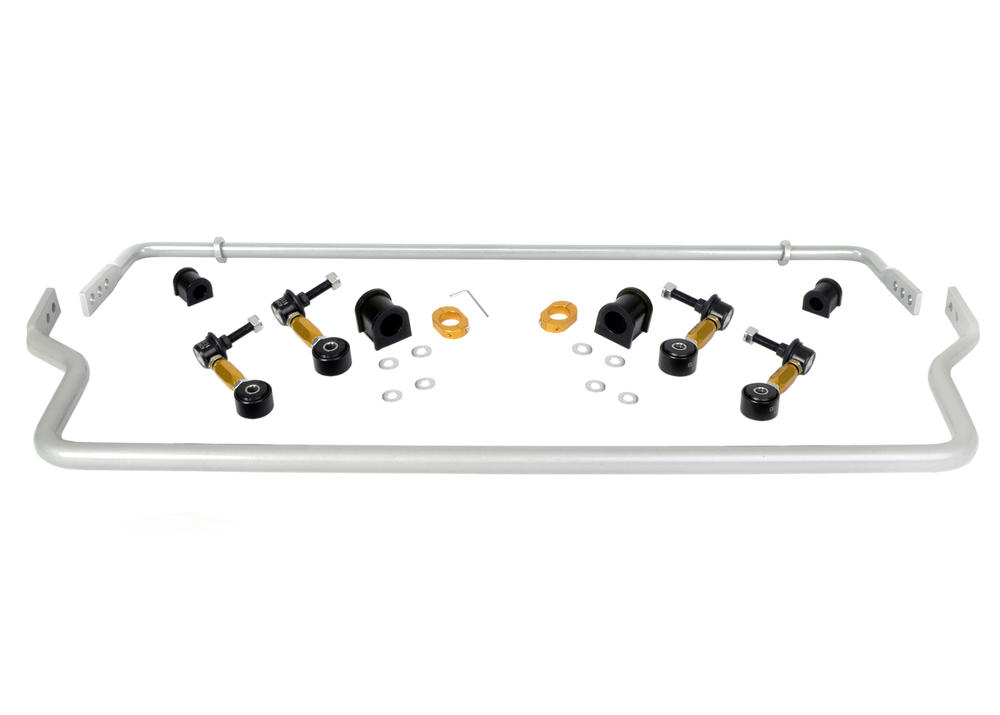

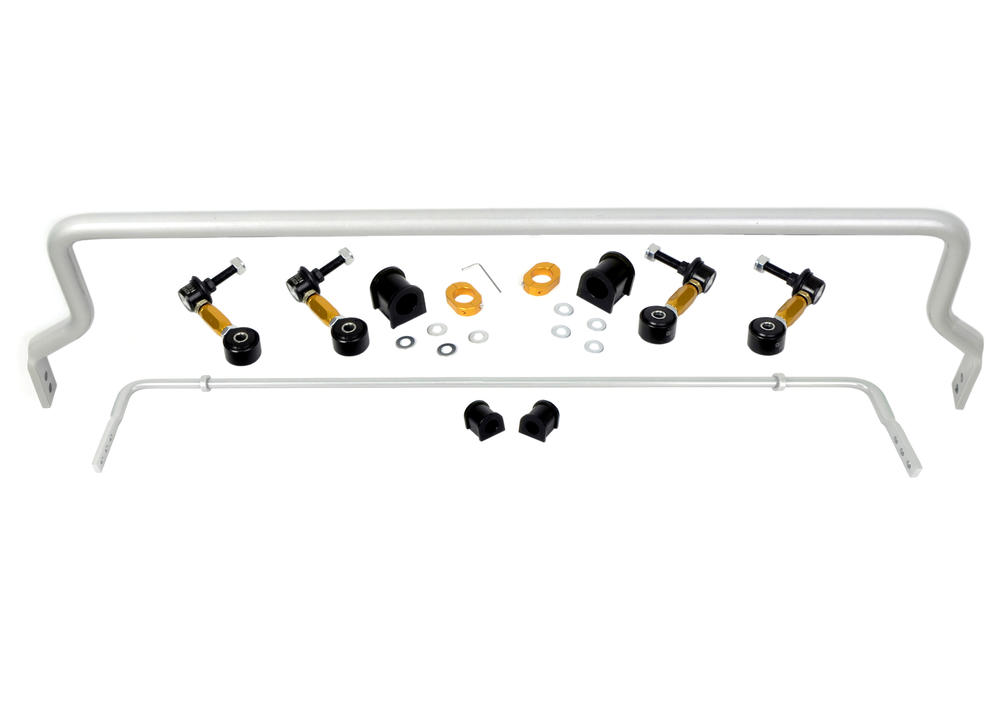

United StatesFront and Rear Anti Roll Bar - Vehicle Kit to Suit Mazda MX-5 NA
 SKU | BMK002 |
|---|---|
 Installation Time | 4 Hours |
 Fitting Position | Front and Rear |
- Front Sway bar - 24mm 2 point adjustable
- Rear Sway bar - 16mm 3 point adjustable
- Front Sway bar - link kit
- Rear Sway bar - link kit
- Minimising excess body roll
- Dramatically improving handling performance
- Tyre life
- Steering response
- Braking stability and response
- No compromise to ride quality, NVH or comfort of the vehicle
*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.
Kit Specifications
| Location | Sway Bar | Diameter (mm) | Diameter (in) Fraction | Diameter (in) Decimal | Material | Sway Bar Adjustment Type | Sway Bar Link Included |
|---|---|---|---|---|---|---|---|
| Front | BMF63Z | 24 | 61/64" | 0.944 | Solid Spring Steel | 2 Point Adjustable | Yes |
| Rear | BMR12Z | 16 | 5/8" | 0.629 | Solid Spring Steel | 3 Point Adjustable | Yes |
| Location | Front | Rear |
|---|---|---|
| Sway Bar | BMF63Z | BMR12Z |
| Diameter (mm) | 24 | 16 |
| Diameter (in) Fraction | 61/64" | 5/8" |
| Diameter (in) Decimal | 0.944 | 0.629 |
| Material | Solid Spring Steel | Solid Spring Steel |
| Sway Bar Adjustment Type | 2 Point Adjustable | 3 Point Adjustable |
| Sway Bar Link Included | Yes | Yes |
Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.
Front Sway Bar Adjustment Settings
| Setting | Effective Bar Size (mm) | % Change vs Previous Setting | ~% Stiffer Than OE |
|---|---|---|---|
| Soft - Comfort / low grip | 23.5 mm | - | +30% |
| Hard - Maximum roll control | 24.5 mm | +20% | +55% |
Rear Sway Bar Adjustment Settings
| Setting | Effective Bar Size (mm) | % Change vs Previous Setting | ~% Stiffer Than OE |
|---|---|---|---|
| Soft - Comfort / low grip | 15 mm | - | -25% |
| Medium - Balanced | 16 mm | +30% | 0% |
| Hard - Maximum roll control | 17 mm | +25% | +25% |
Misc. Product Information
| SKU | BMK002 |
| Components Per | 2 Sway Bars, 4 Links, 4 Bushings, 2 Lateral Locks, 4 Washers |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Improves grip and boosts stability; a complete, premium upgrade. Includes: 24mm 2 point adjustable Front Sway bar, 16mm 3 point adjustable Rear Sway bar & Front and Rear Sway bar link kits. |
| EAN | 9319924397488 |
 Install Guide | Downloads |
|---|---|
| Installation Time | 4 Hours |
 Wheel Alignment Required | Yes |
| Recommend Wheel Alignment | Front and Rear Wheel Alignment |
