What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

KCA346

Front Lower Inner Rear Bushings Caster & Anti Lift to Suit Holden Astra LD and Nissan Pulsar N13, N14

Front Lower Inner Rear Bushings Caster & Anti Lift to Suit Holden Astra LD and Nissan Pulsar N13, N14

Performance Alignment - adds +0.5deg caster + anti-lift, Performance Alignment - adds +1.0deg caster + anti-lift

Item Price

€187.03

SKU	KCA346
Warranty	3 years warranty or up to 60,000km
Installation Time	2.5 Hours
Fitting Position	Front Axle

Select your car to check fitment.

in stock

Ships within 48hrs

Description

Benefit Note:
Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

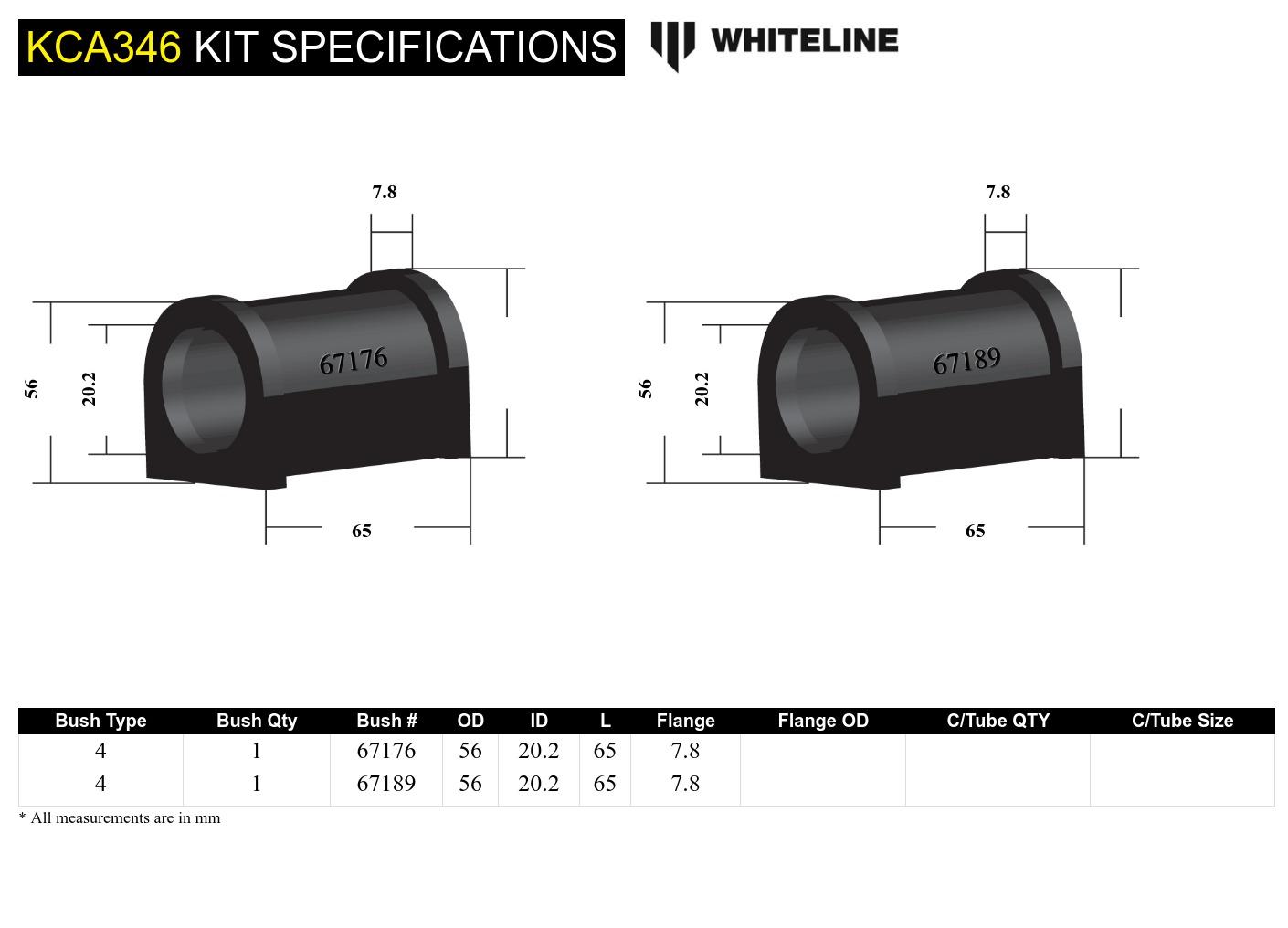

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
4	1	56	20.2	65.0	7.8				Click Here
4	1	56	20.2	65.0	7.8				Click Here

Bush Type	4	4
QTY	1	1
OD (A)	56	56
ID (B)	20.2	20.2
Length (C)	65.0	65.0
FL (D)	7.8	7.8
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.04kg	10cm	26cm	16cm
in/lbs	2.29lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.04kg	2.29lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	KCA346
Components Per	2 Bushings, 4 Plates, 4 Bolts, 10 Washers
Kits Required	1
Sub brand	Performance
Product Note	Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings, 4 Plates, 4 Bolts, 10 Washers
EAN	9319924342518

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
