What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

KCA486

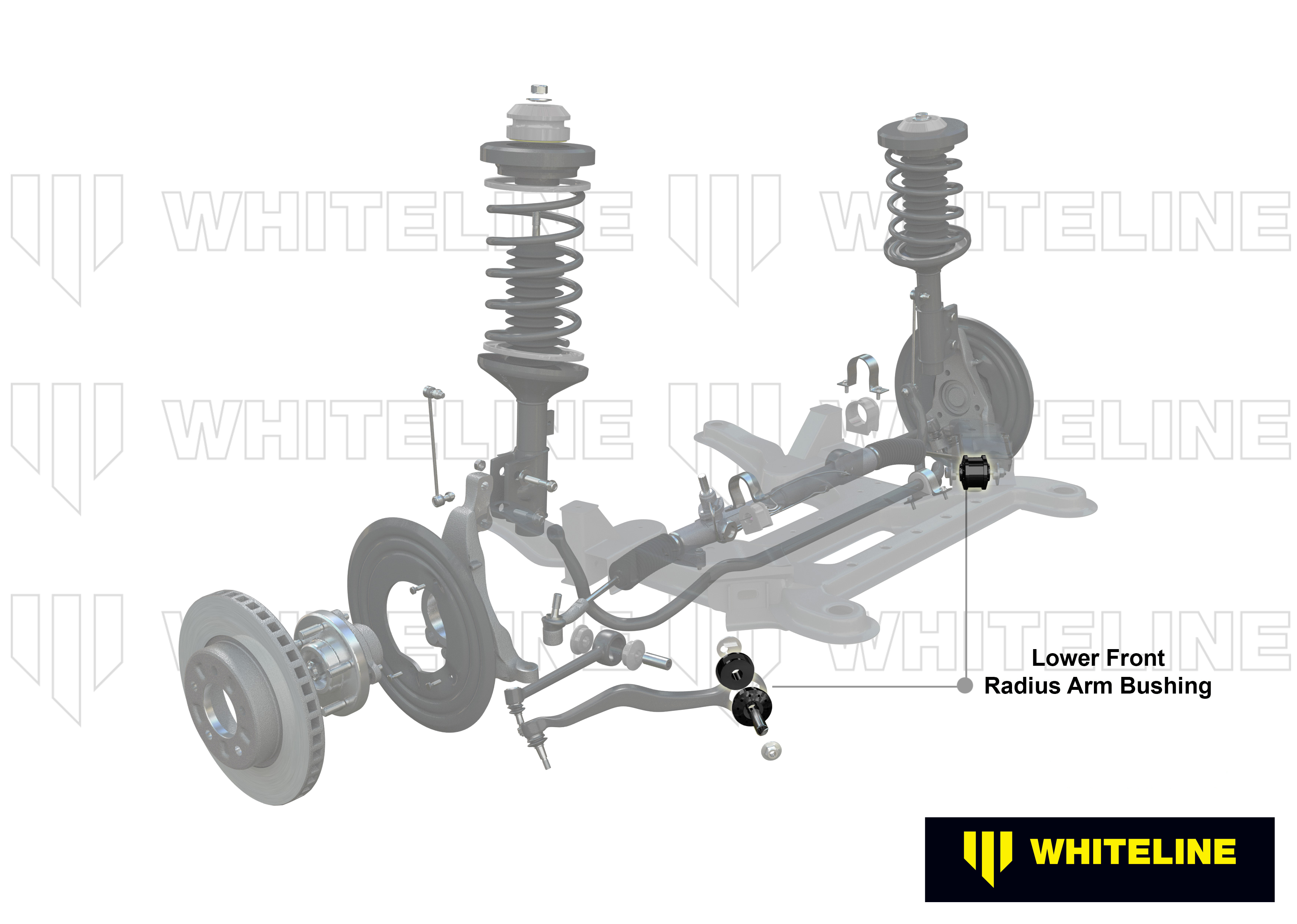

Front Radius Arm Lower - Bushing Double Offset Caster Kit to Suit Ford Mustang S550 & S650

Front Radius Arm Lower - Bushing Double Offset Caster Kit to Suit Ford Mustang S550 & S650

Performance Alignment - adds +/-1.0deg caster

Item Price

€99.04

SKU	KCA486
Warranty	lifetime warranty
Installation Time	3 Hours
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder.

Description

Benefit Note:
Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	2 mm	72.2 mm	32 mm	84.2 mm	21.4 mm	50 mm	2	32x16.3x88.4 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	2 mm
OD (A)	72.2 mm
ID (B)	32 mm
Length (C)	84.2 mm
Flange Thickness (D)	21.4 mm
Flange OD (E)	50 mm
C/Tube Quantity	2
C/Tube ODxIDxL	32x16.3x88.4 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Eccentric	Yes

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	2	72.2	32	84.2	21.4	50	2	32x16.3x88.4	Click Here

Bush Type	16
QTY	2
OD (A)	72.2
ID (B)	32
Length (C)	84.2
FL (D)	21.4
FLOD (E)	50
C/Tube Qty	2
C/Tube Size	32x16.3x88.4
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.5kg	10cm	26cm	16cm
in/lbs	1.1lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.5kg	1.1lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	KCA486

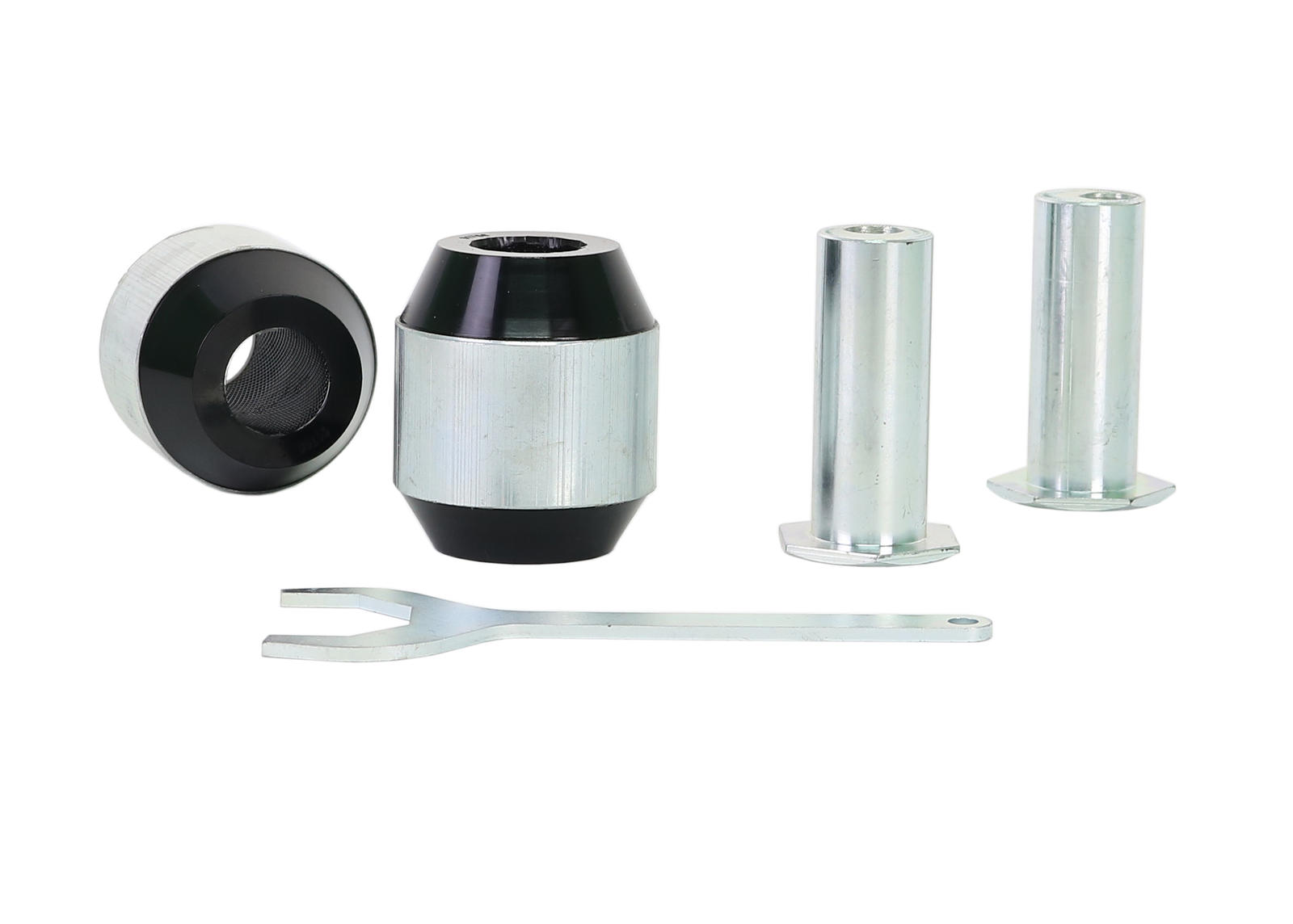

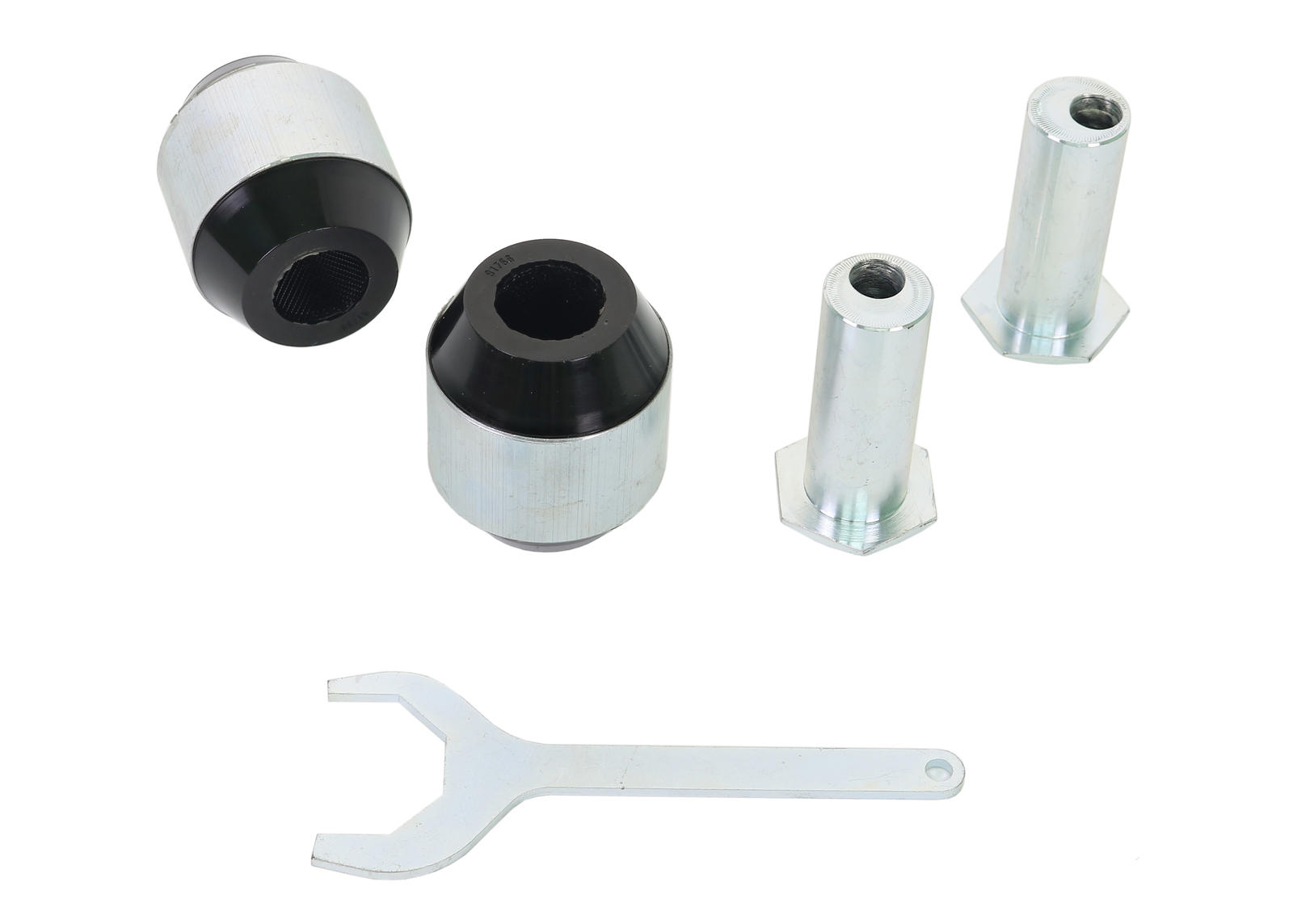

Components Per	2 Shell Bushings, 2 Tubes, 1 Tool
Kits Required	1
Sub brand	Performance
Product Note	Enhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes, 1 Tool
EAN	9319924463152

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
