What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

W91107

Front Subframe - Bushing Kit to Suit Holden HQ-WB and Torana LH-LX

Front Subframe - Bushing Kit to Suit Holden HQ-WB and Torana LH-LX

Item Price

€42.76 €34.21

SKU	W91107
Warranty	lifetime warranty
Installation Time	4 Hours
Fitting Position	Front Axle

Select your car to check fitment.

SALE ENDS IN

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
The Whiteline kit replaces the bushings in the front subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.

*All prices shown on the Whiteline website include GST. You will not be charged any additional fees related to tax.

Specifications

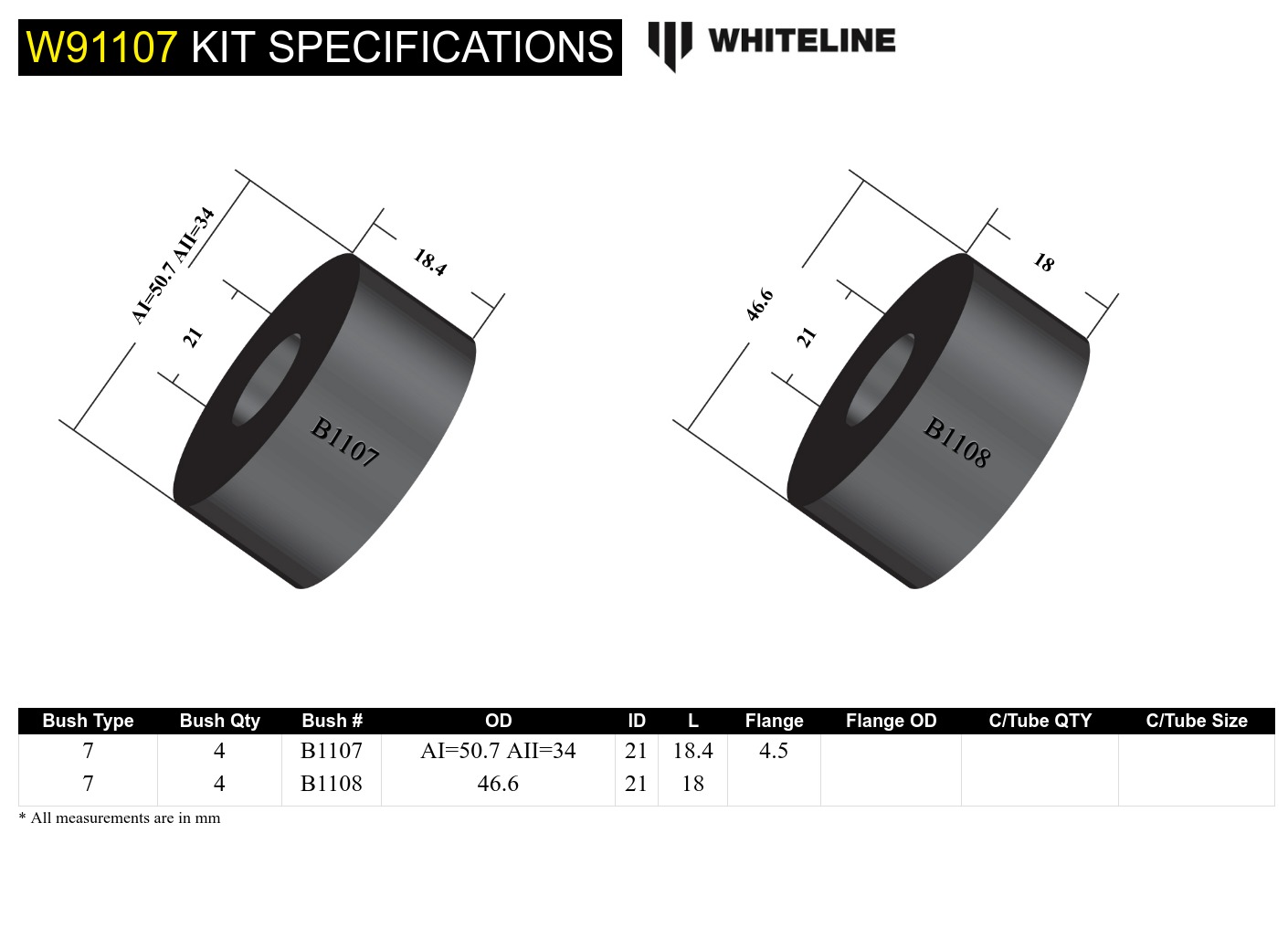

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
7	4	46.6	21	18.0					Click Here
7	4	AI=50.7 AII=34	21	18.4	4.5				Click Here

Bush Type	7	7
QTY	4	4
OD (A)	46.6	AI=50.7 AII=34
ID (B)	21	21
Length (C)	18.0	18.4
FL (D)		4.5
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.762kg	10cm	26cm	16cm
in/lbs	1.68lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.762kg	1.68lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	W91107

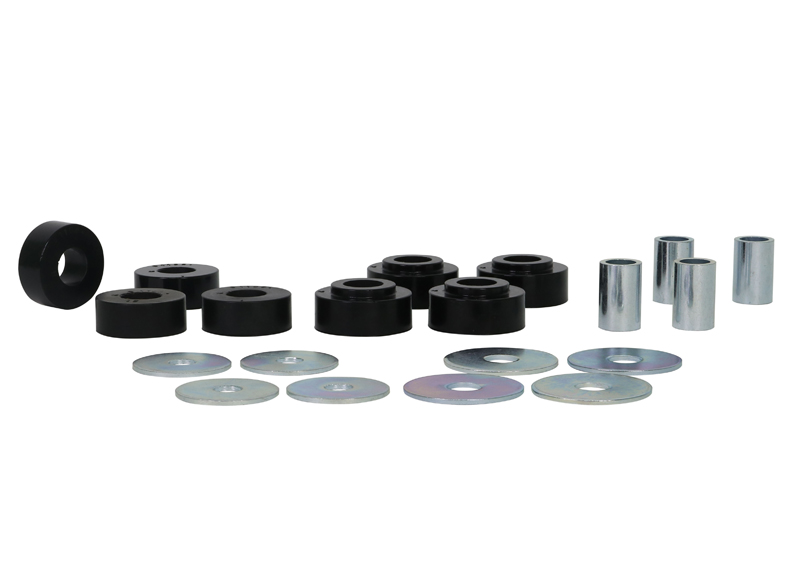

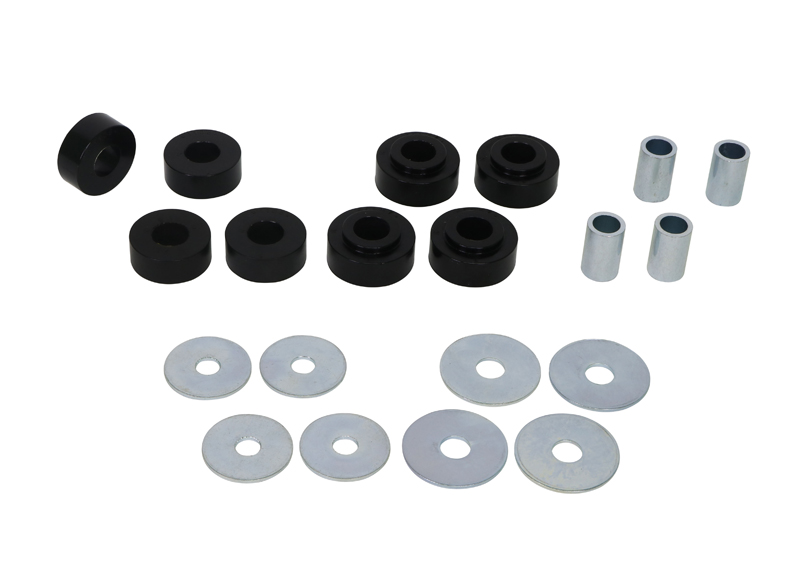

Components Per	8 Bushings, 4 Tubes, 8 Washers
Kits Required	1
Sub brand	Replacement
Product Note	Creates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 8 Washers
EAN	9319924357604

Installation & Fitment Guide

More Information
Installation Time	4 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
