What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

W23685

Front Anti Roll Bar Mount - Bushing Kit 23mm to Suit Mazda CX-5, Mazda3 and Mazda6

Front Anti Roll Bar Mount - Bushing Kit 23mm to Suit Mazda CX-5, Mazda3 and Mazda6

23mm

Item Price

€33.00

SKU	W23685
Warranty	lifetime warranty
Installation Time	1 Hour
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder.

Description

Benefit Note:
Designed to fit a 23mm sway bar. Whiteline's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Backed up by a Limited Lifetime Warranty. Whiteline bushings are made from the latest highest quality synthetic elastomer and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

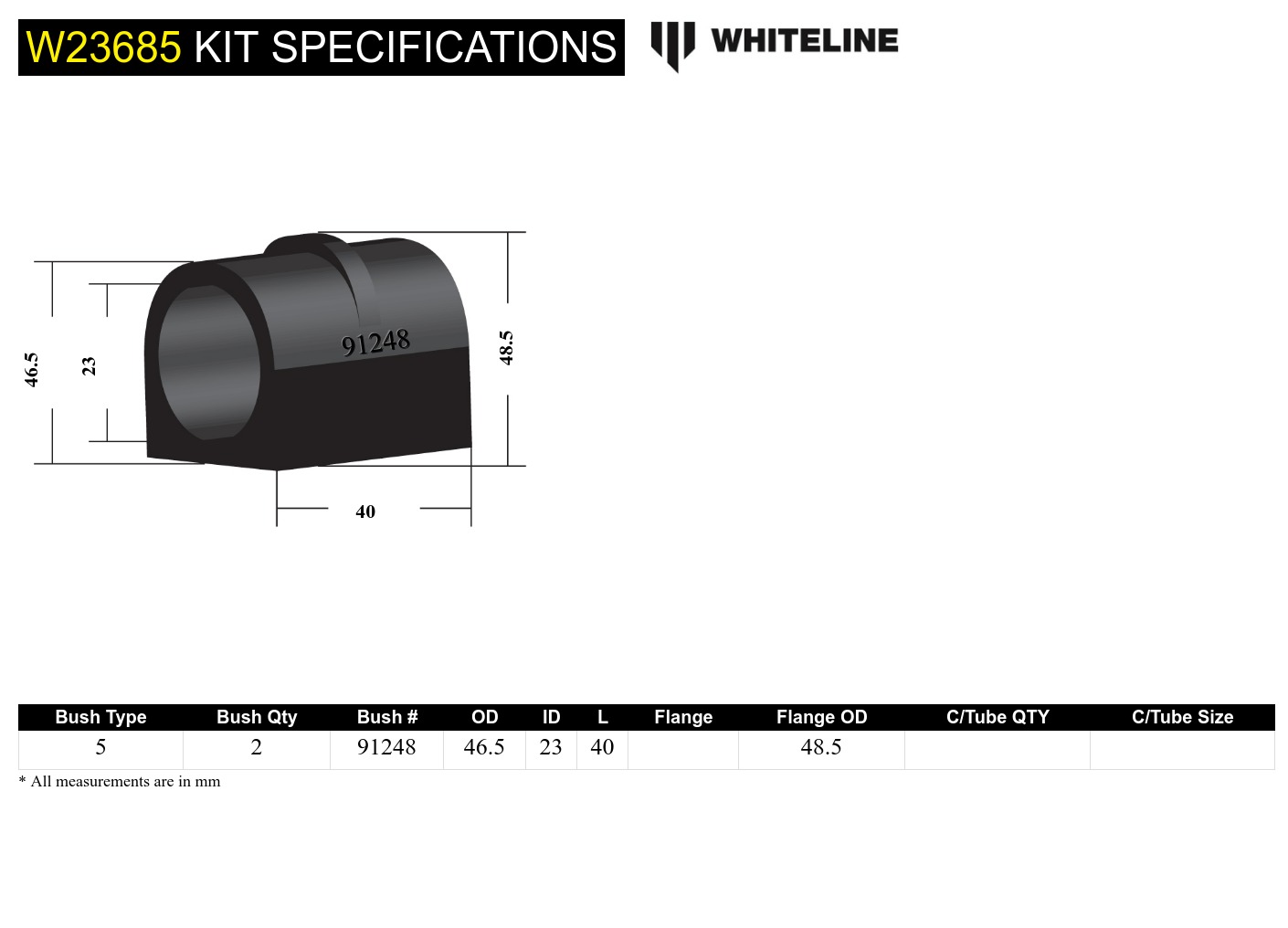

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
5	2	46.5	23	40.0		48.5			Click Here

Bush Type	5
QTY	2
OD (A)	46.5
ID (B)	23
Length (C)	40.0
FL (D)
FLOD (E)	48.5
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.161kg	7cm	20cm	14cm
in/lbs	0.35lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.161kg	0.35lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	W23685
Components Per	2 Bushings
Kits Required	1
Sub brand	Replacement
Product Note	Engineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 2 Bushings
EAN	9319924457687

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
