W71687

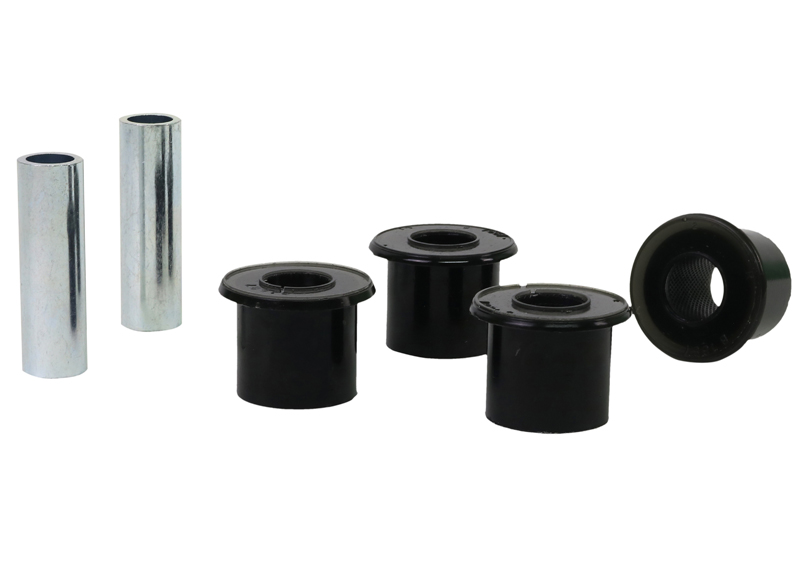

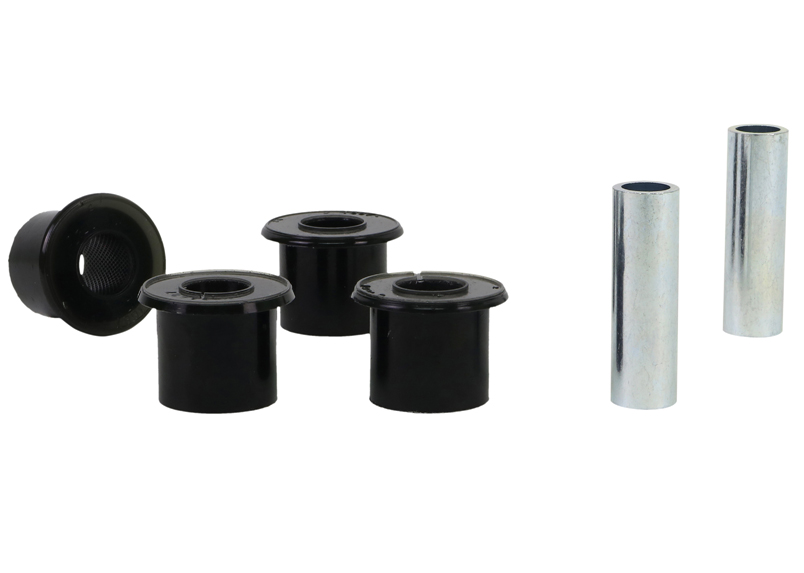

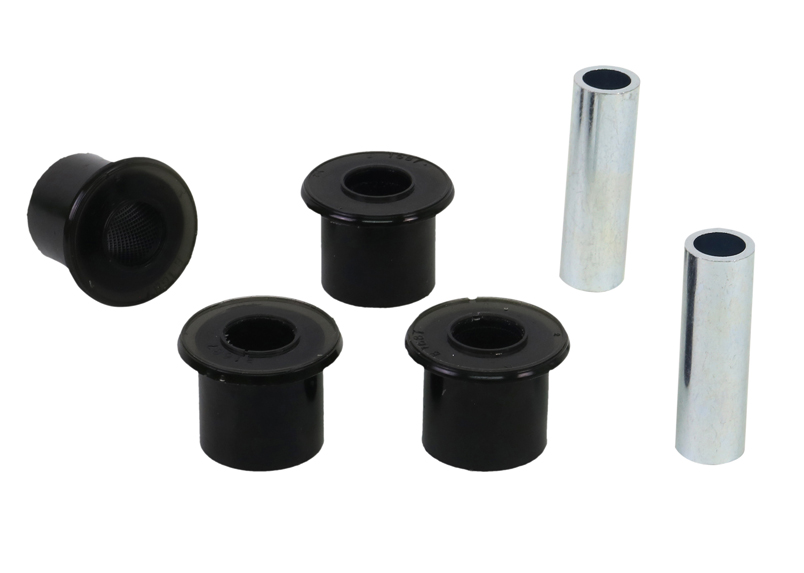

Leaf Spring - Front and Rear Eye Bushing Kit to Suit Toyota Coaster and Dyna

Leaf Spring - Front and Rear Eye Bushing Kit to Suit Toyota Coaster and Dyna

Suits BU60, 61, 62 models

Item Price

€40.66

SKU	W71687
Warranty	lifetime warranty
Installation Time	1 Hour
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

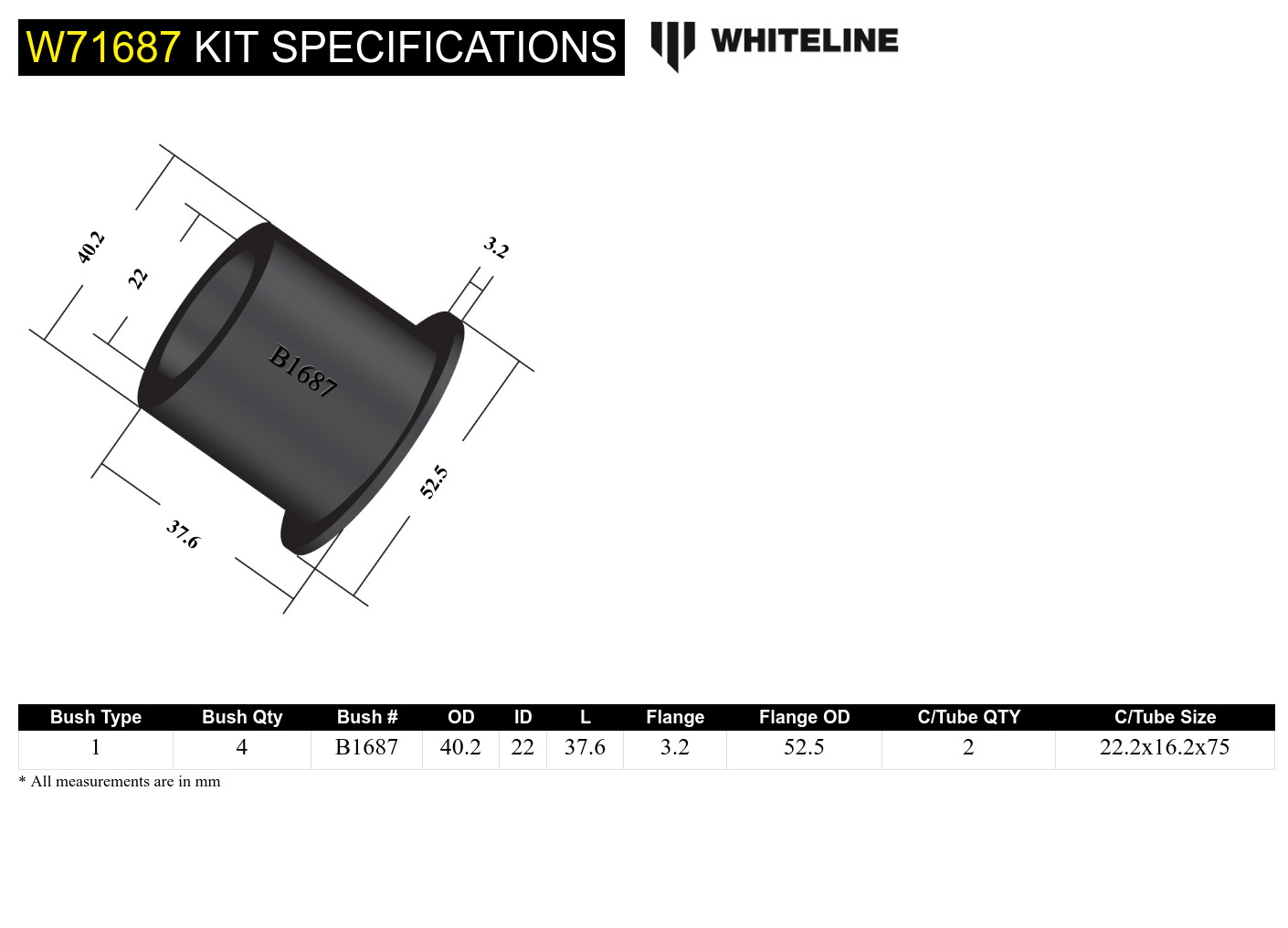

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	40.2 mm	22 mm	37.6 mm	3.2 mm	52.5 mm	2	22.2x16.2x75 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	40.2 mm
ID (B)	22 mm
Length (C)	37.6 mm
Flange Thickness (D)	3.2 mm
Flange OD (E)	52.5 mm
C/Tube Quantity	2
C/Tube ODxIDxL	22.2x16.2x75 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	40.2	22	37.6	3.2	52.5	2	22.2x16.2x75	Click Here

Bush Type	1
QTY	4
OD (A)	40.2
ID (B)	22
Length (C)	37.6
FL (D)	3.2
FLOD (E)	52.5
C/Tube Qty	2
C/Tube Size	22.2x16.2x75
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.387kg	7cm	20cm	14cm
in/lbs	0.85lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.387kg	0.85lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	W71687
Components Per	4 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Creates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN	9319924356119

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
