What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

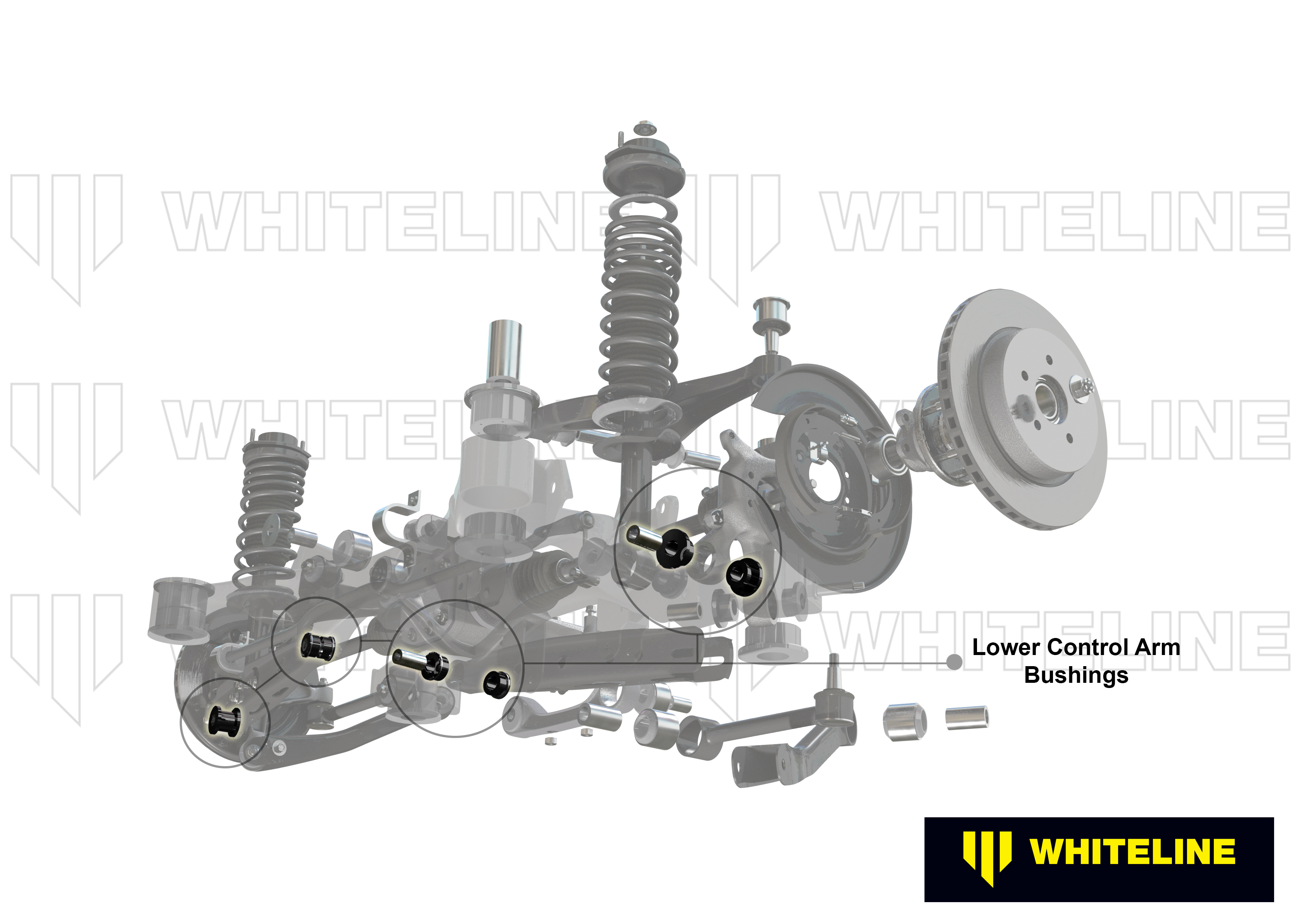

Rear Control Arm Lower Rear - Bushing Kit to Suit Nissan Pathfinder R51

Description

Benefit Note:
Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

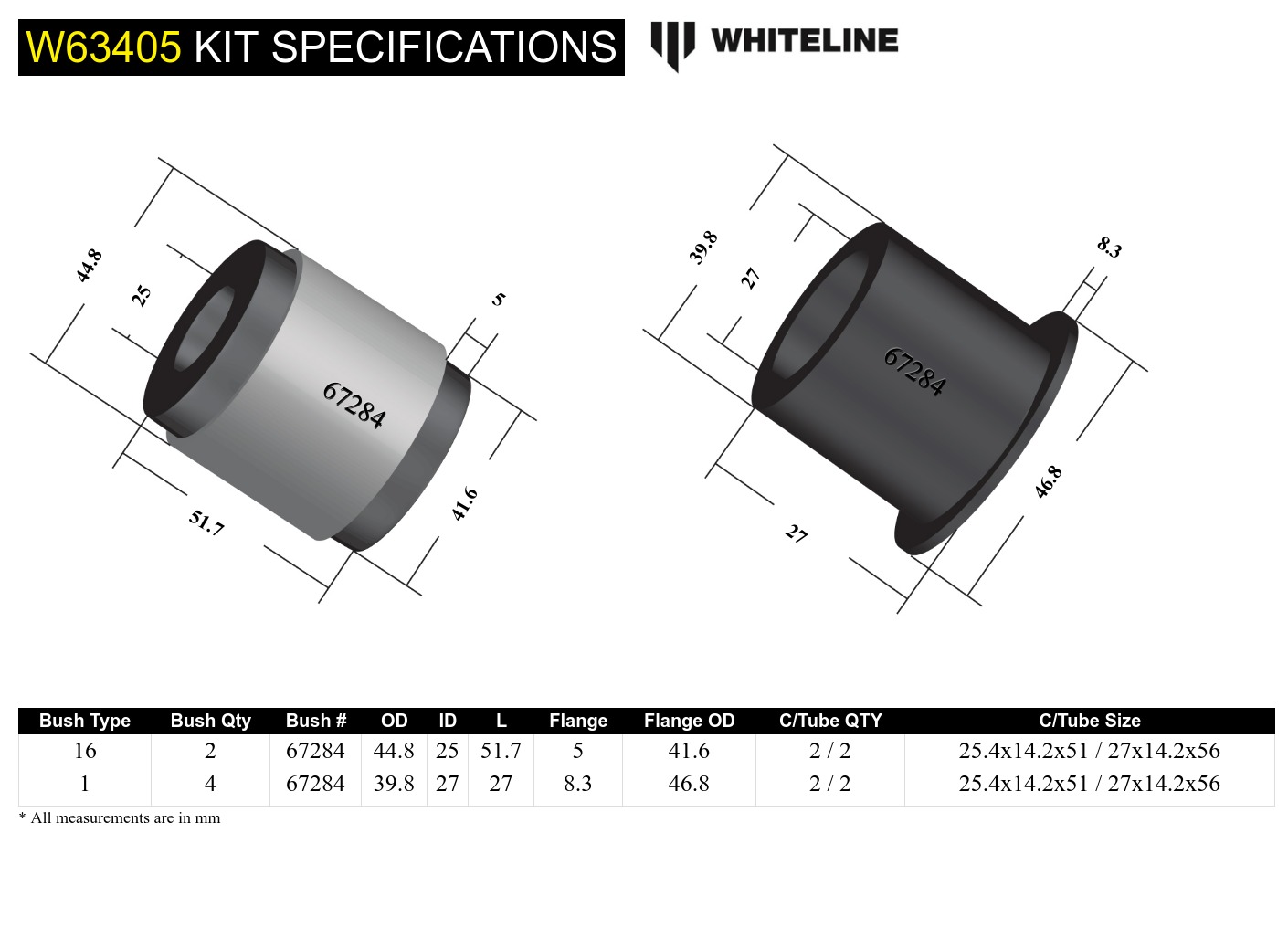

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	2 mm	44.8 mm	25 mm	51.7 mm	5 mm	41.6 mm	2 / 2	25.4x14.2x51 / 27x14.2x56 mm	Click Here
1 - Shackle Bushing	4 mm	39.8 mm	27 mm	27 mm	8.3 mm	46.8 mm	2 / 2	25.4x14.2x51 / 27x14.2x56 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	4 mm
OD (A)	44.8 mm	39.8 mm
ID (B)	25 mm	27 mm
Length (C)	51.7 mm	27 mm
Flange Thickness (D)	5 mm	8.3 mm
Flange OD (E)	41.6 mm	46.8 mm
C/Tube Quantity	2 / 2	2 / 2
C/Tube ODxIDxL	25.4x14.2x51 / 27x14.2x56 mm	25.4x14.2x51 / 27x14.2x56 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	2	44.8	25	51.7	5	41.6	2 / 2	25.4x14.2x51 / 27x14.2x56	Click Here
1	4	39.8	27	27.0	8.3	46.8	2 / 2	25.4x14.2x51 / 27x14.2x56	Click Here

Bush Type	16	1
QTY	2	4
OD (A)	44.8	39.8
ID (B)	25	27
Length (C)	51.7	27.0
FL (D)	5	8.3
FLOD (E)	41.6	46.8
C/Tube Qty	2 / 2	2 / 2
C/Tube Size	25.4x14.2x51 / 27x14.2x56	25.4x14.2x51 / 27x14.2x56
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Misc. Product Information

More Information
SKU	W63405

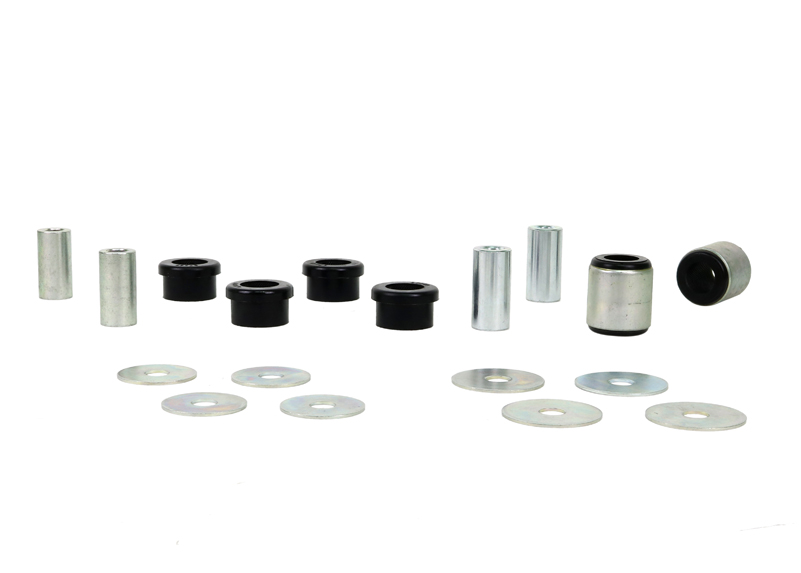

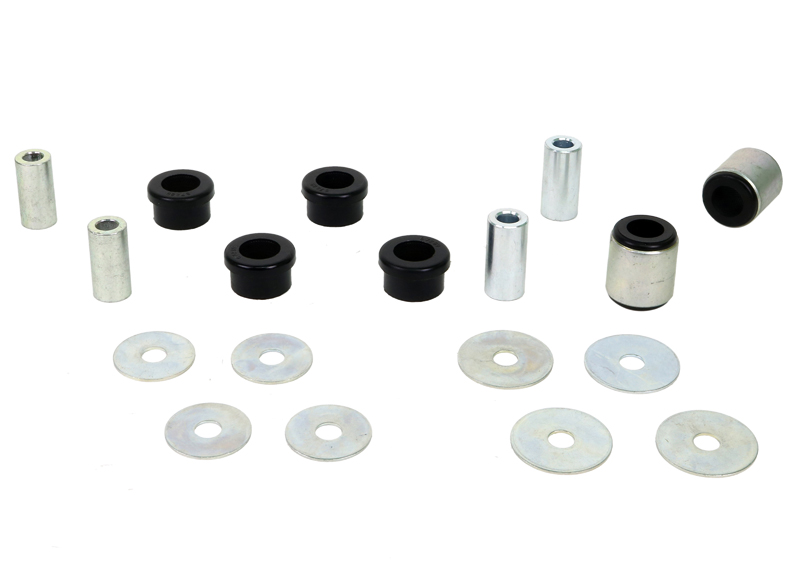

Components Per	2 Shell Bushings, 4 Bushings, 4 Tubes, 8 Washers
Kits Required	1
Sub brand	Replacement
Product Note	Greatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 4 Tubes, 8 Washers
EAN	9330074011178

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
