What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

W93402

Rear Differential Mount - Front Bushing Kit to Suit Ford Falcon/Fairlane BA-FGX, Territory SX-SZ and FPV

Rear Differential Mount - Front Bushing Kit to Suit Ford Falcon/Fairlane BA-FGX, Territory SX-SZ and FPV

Fitter friendly design - excludes models with 30mm extension on differential support on drivers side

Item Price

€134.93

SKU	W93402
Warranty	lifetime warranty
Installation Time	2.5 Hours

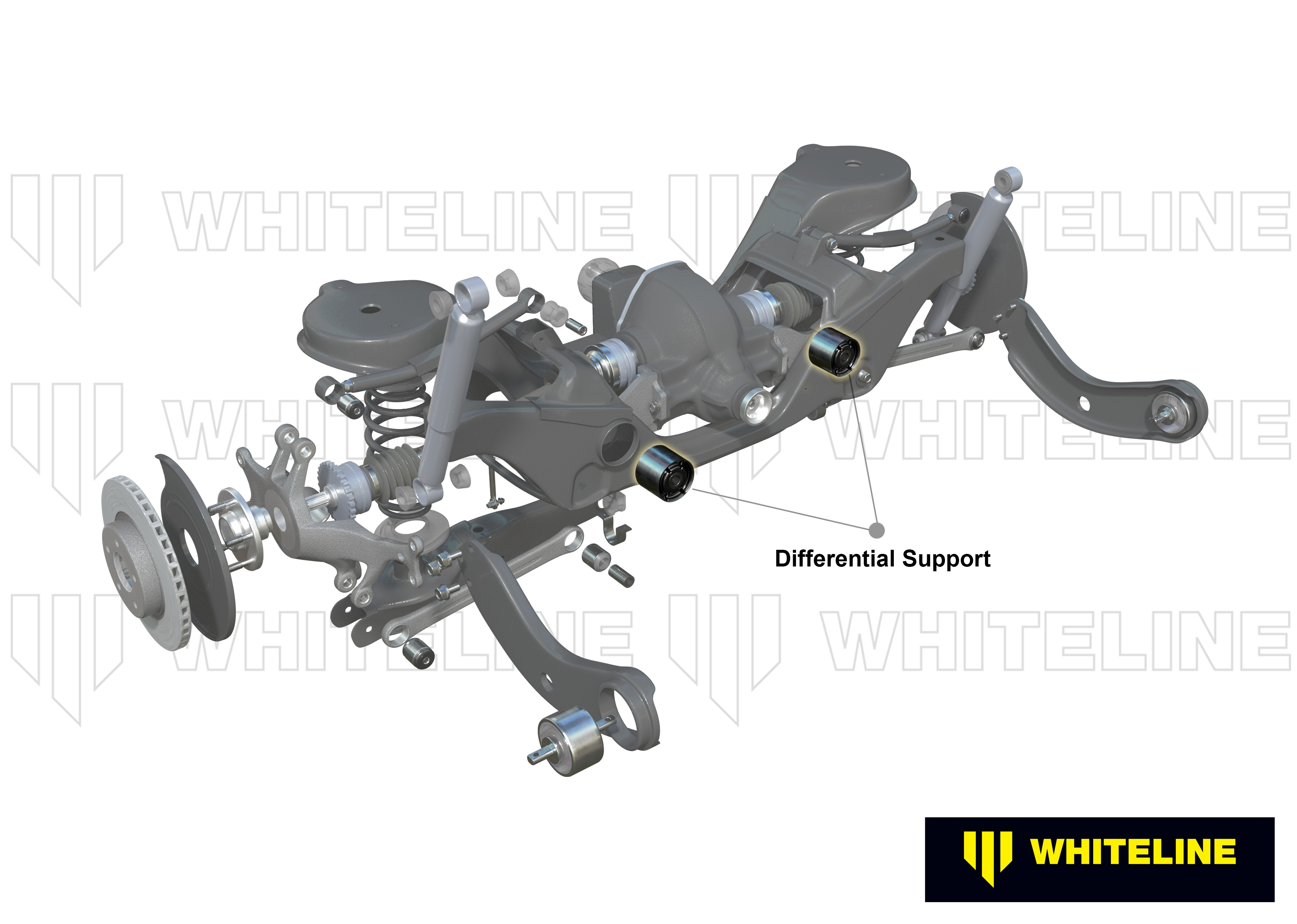

Fitting Position	Rear Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
Critical service item for the rear suspension. Whiteline's direct replacement differential solution replaces the OEM high wearing front mounts on the rear of the Falcon/ Territory differential. Steel cased design and dampening zones ensures optimum performance and superior durability to original equipment.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

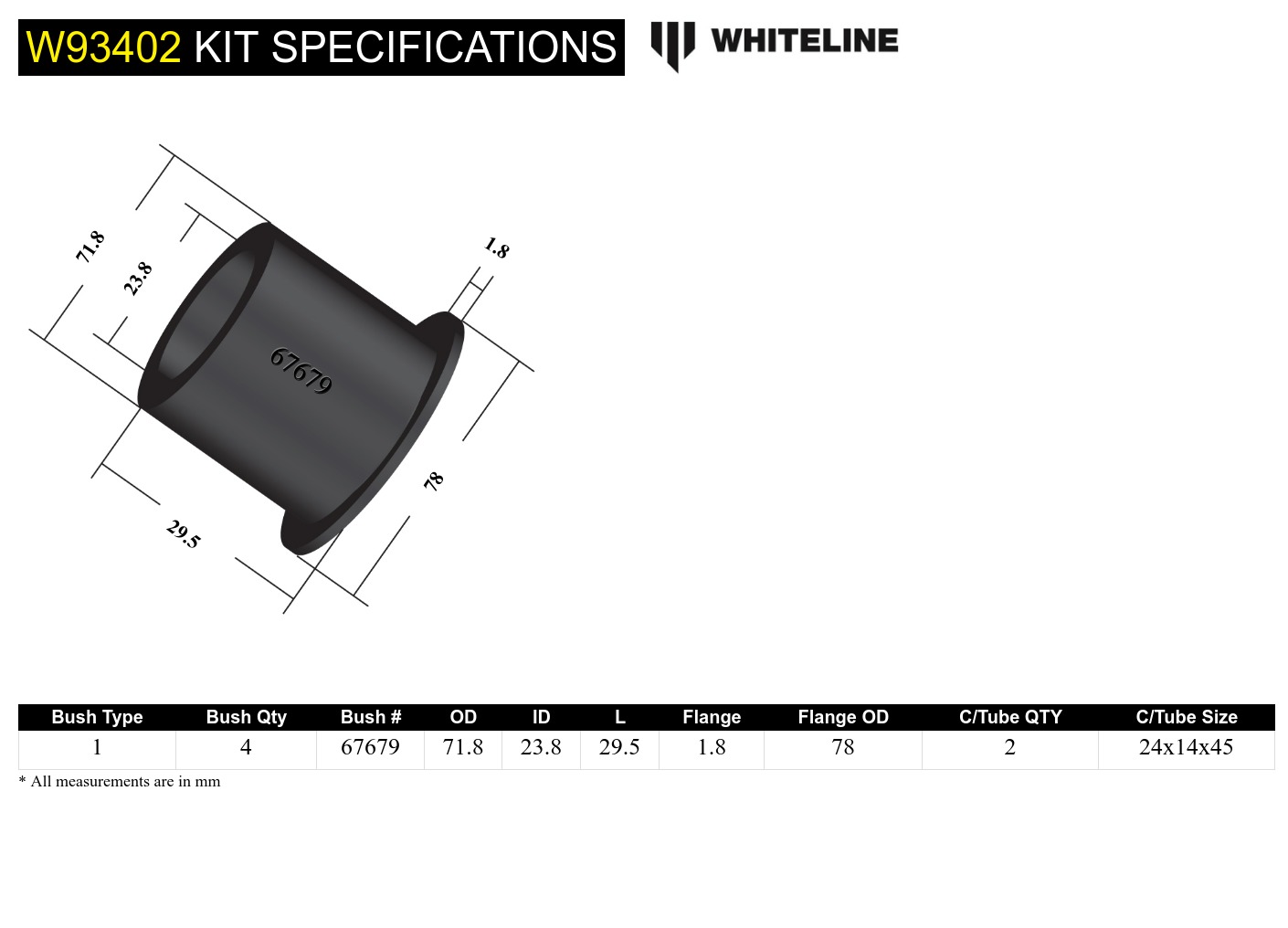

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	71.8 mm	23.8 mm	29.5 mm	1.8 mm	78 mm	2	24x14x45 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	71.8 mm
ID (B)	23.8 mm
Length (C)	29.5 mm
Flange Thickness (D)	1.8 mm
Flange OD (E)	78 mm
C/Tube Quantity	2
C/Tube ODxIDxL	24x14x45 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	71.8	23.8	29.5	1.8	78	2	24x14x45	Click Here

Bush Type	1
QTY	4
OD (A)	71.8
ID (B)	23.8
Length (C)	29.5
FL (D)	1.8
FLOD (E)	78
C/Tube Qty	2
C/Tube Size	24x14x45
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.992kg	10cm	26cm	16cm
in/lbs	2.19lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.992kg	2.19lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	W93402

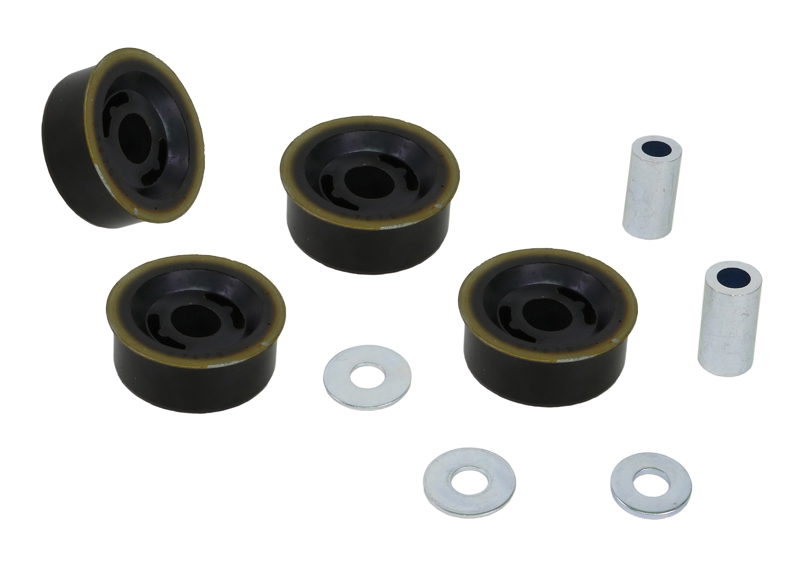

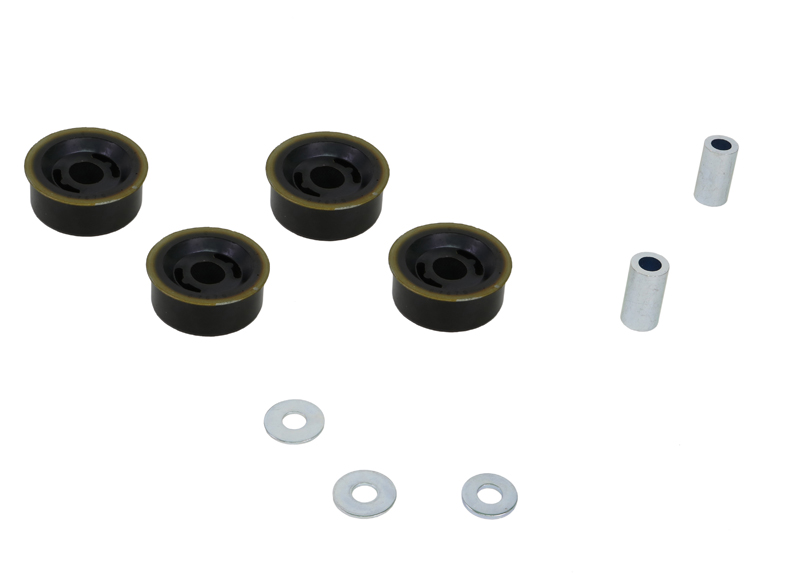

Components Per	4 Bushings, 2 Tubes, 3 Washers
Kits Required	1
Sub brand	Replacement
Product Note	Built tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 3 Washers
EAN	9319924388677

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
