What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

W93394

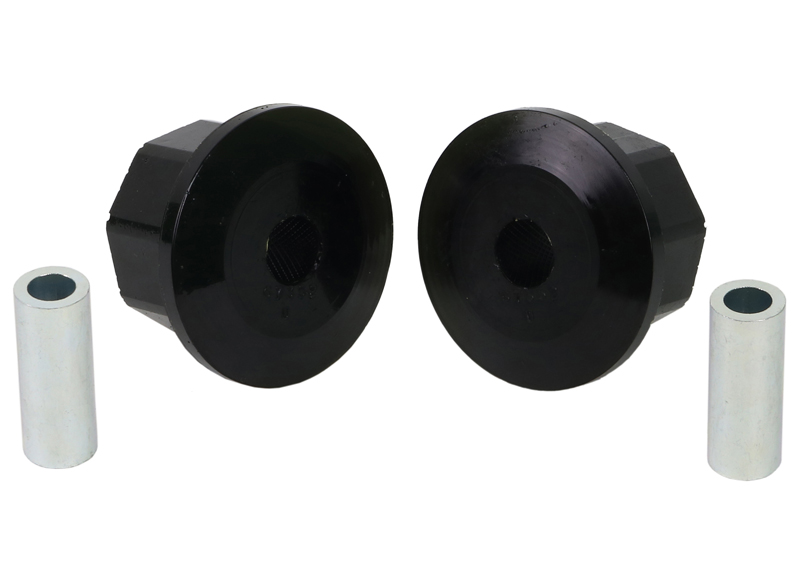

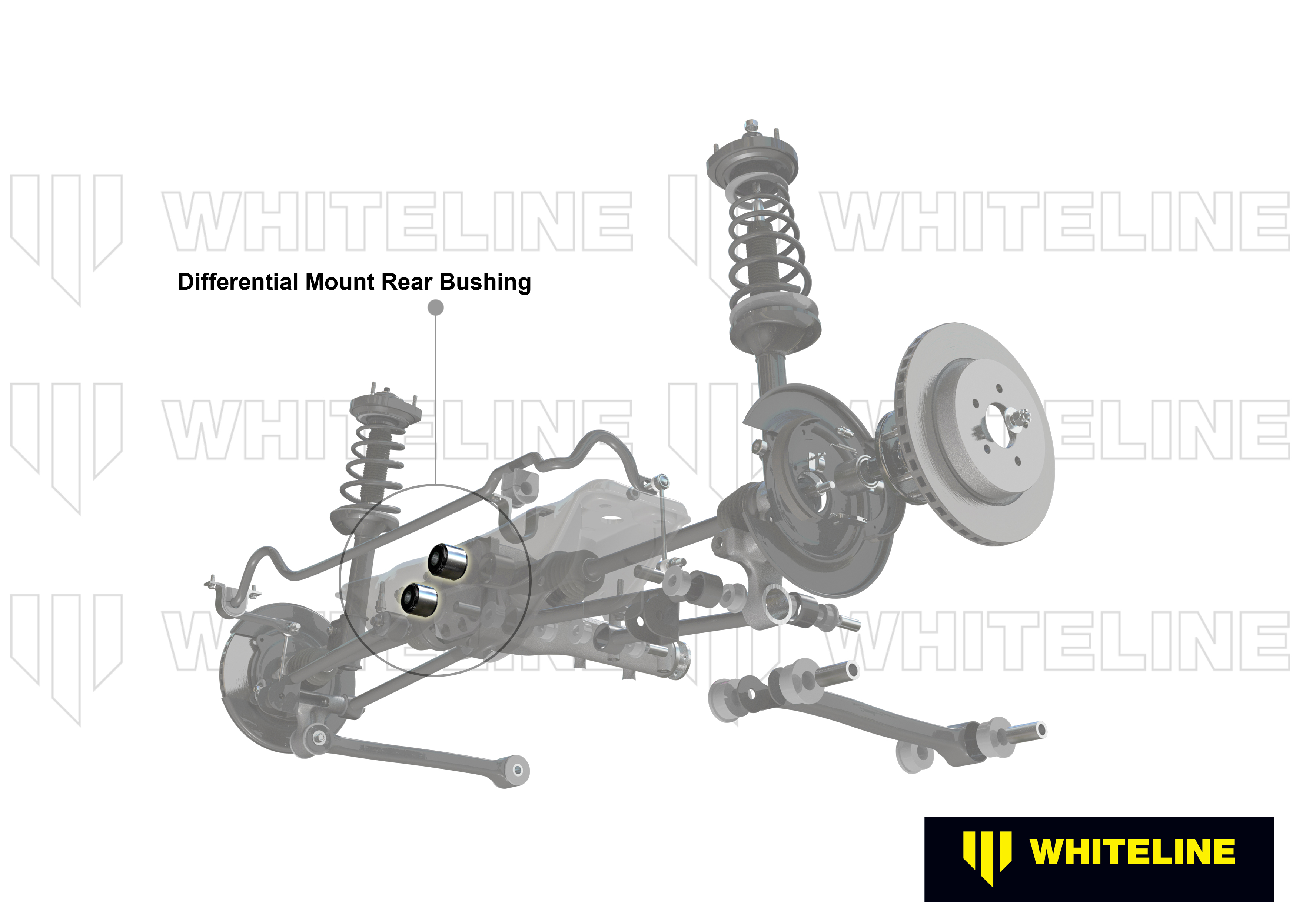

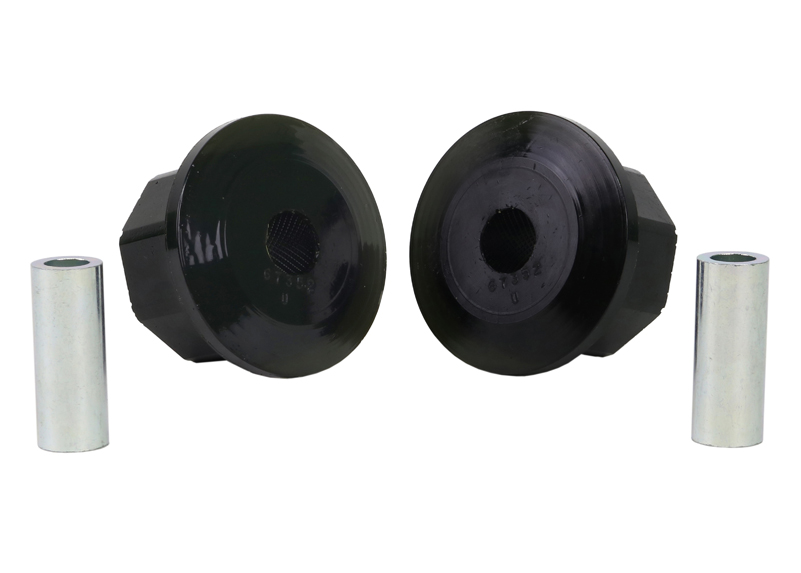

Rear Differential Mount - Rear Bushing Kit to Suit Mazda MX-5 NC and RX-8 FE

Rear Differential Mount - Rear Bushing Kit to Suit Mazda MX-5 NC and RX-8 FE

Item Price

€46.06

SKU	W93394
Installation Time	4 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

Pre-Order

Available for Preorder.

Description

Benefit Note:
Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

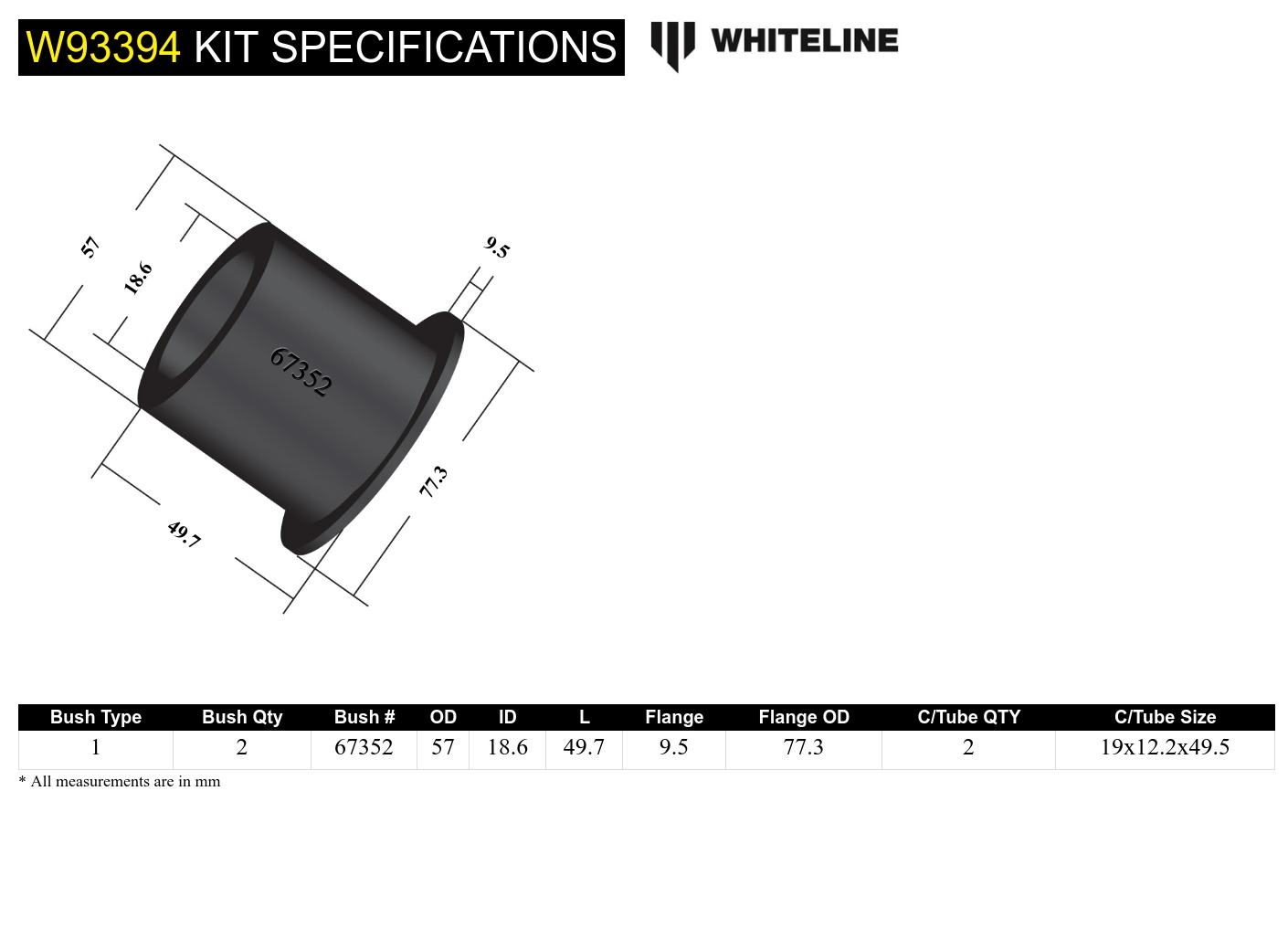

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	2 mm	57 mm	18.6 mm	49.7 mm	9.5 mm	77.3 mm	2	19x12.2x49.5 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	2 mm
OD (A)	57 mm
ID (B)	18.6 mm
Length (C)	49.7 mm
Flange Thickness (D)	9.5 mm
Flange OD (E)	77.3 mm
C/Tube Quantity	2
C/Tube ODxIDxL	19x12.2x49.5 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	2	57	18.6	49.7	9.5	77.3	2	19x12.2x49.5	Click Here

Bush Type	1
QTY	2
OD (A)	57
ID (B)	18.6
Length (C)	49.7
FL (D)	9.5
FLOD (E)	77.3
C/Tube Qty	2
C/Tube Size	19x12.2x49.5
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Misc. Product Information

More Information
SKU	W93394
Components Per	2 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN	9319924383382

Installation & Fitment Guide

More Information
Installation Time	4 Hours
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
