What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

W93398

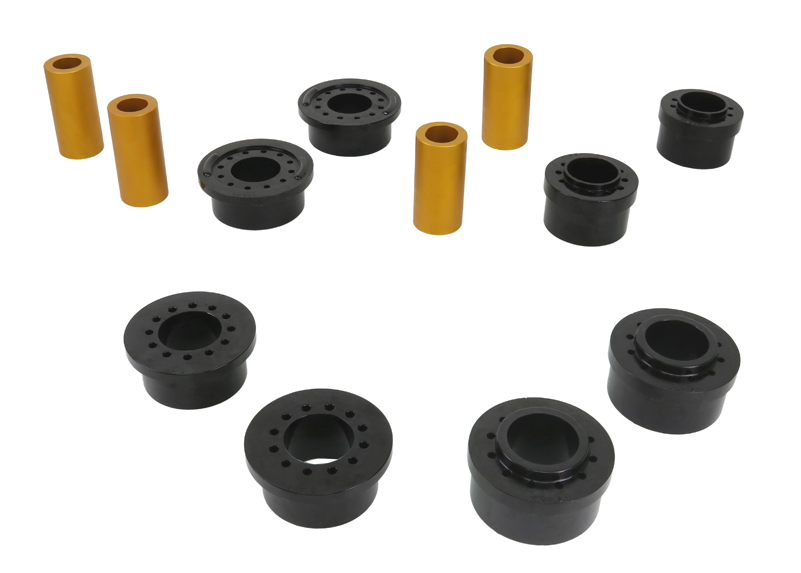

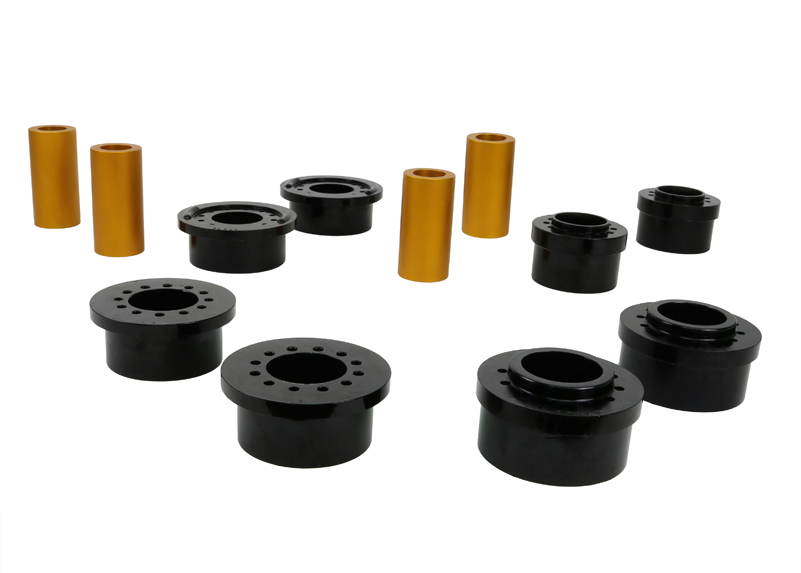

Rear Subframe - Bushing Kit to Suit Cadillac CTS 2nd Gen

Rear Subframe - Bushing Kit to Suit Cadillac CTS 2nd Gen

Item Price

€234.43 €187.54

SKU	W93398
Warranty	lifetime warranty
Installation Time	2 Hours

SALE ENDS IN

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:

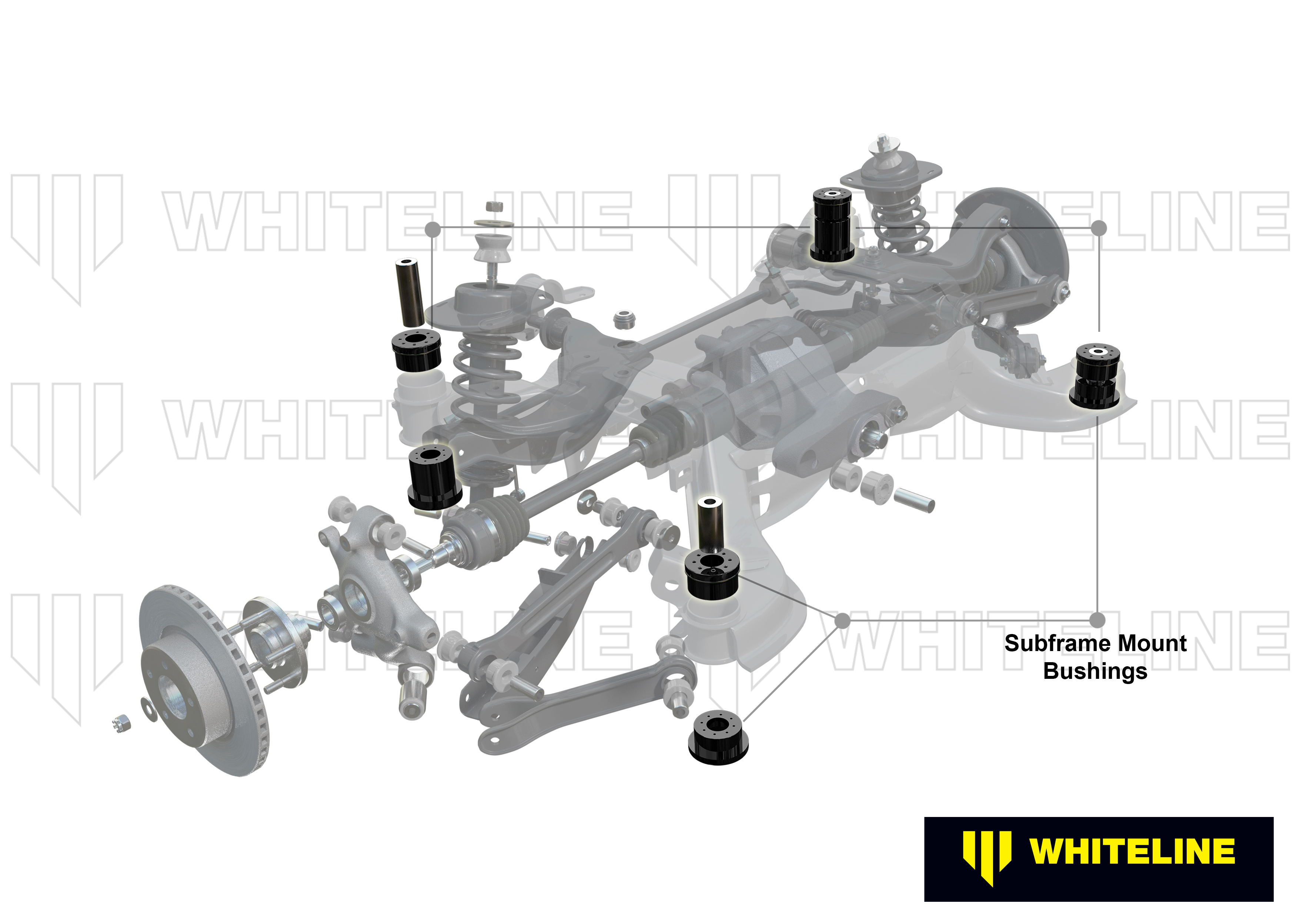

The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.

*All prices shown on the Whiteline website include GST. You will not be charged any additional fees related to tax.

Specifications

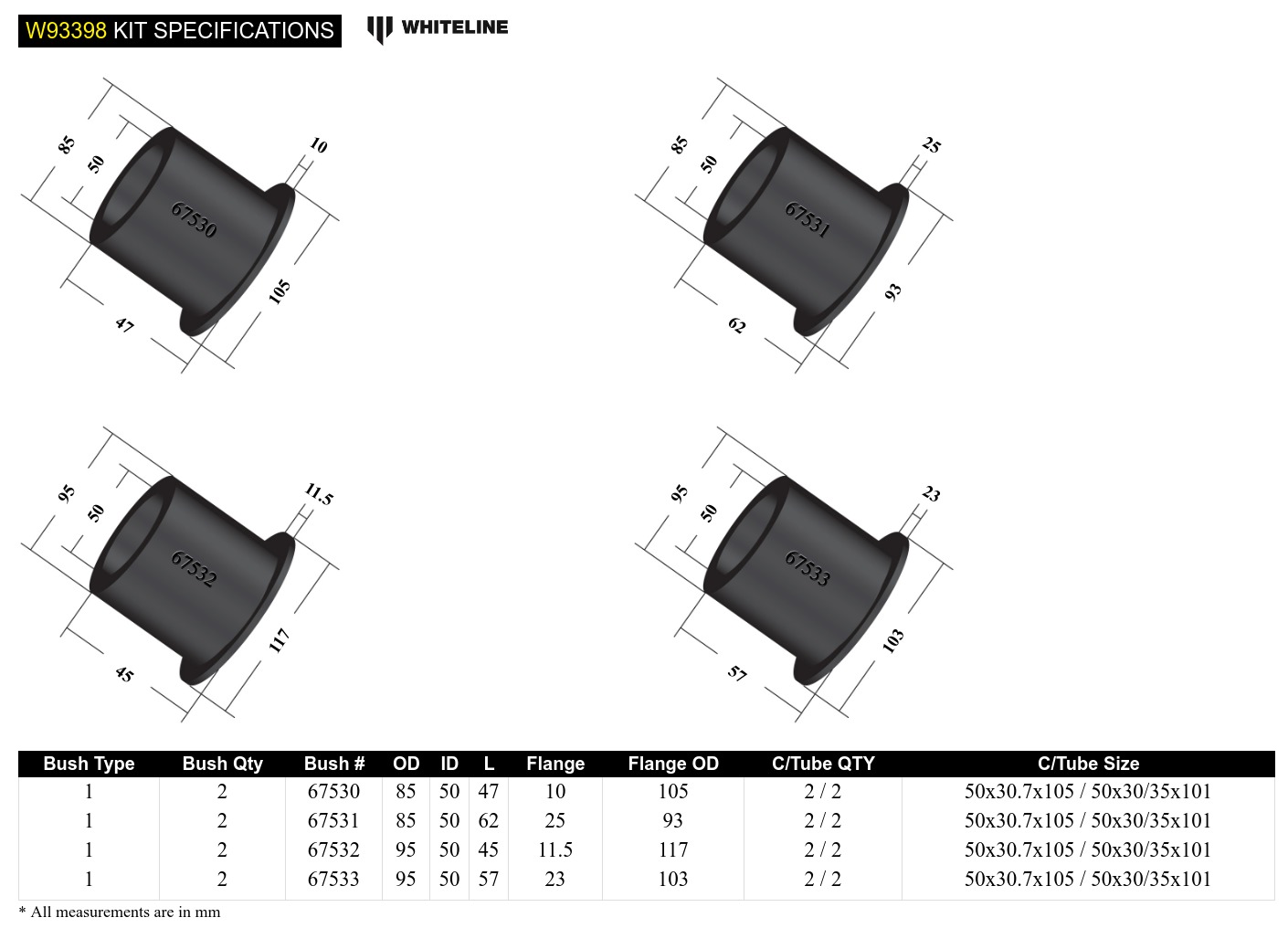

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	2	85	50	47.0	10	105	2 / 2	50x30.7x105 / 50x30/35x101	Click Here
1	2	95	50	45.0	11.5	117	2 / 2	50x30.7x105 / 50x30/35x101	Click Here
1	2	85	50	62.0	25	93	2 / 2	50x30.7x105 / 50x30/35x101	Click Here
1	2	95	50	57.0	23	103	2 / 2	50x30.7x105 / 50x30/35x101	Click Here

Bush Type	1	1	1	1
QTY	2	2	2	2
OD (A)	85	95	85	95
ID (B)	50	50	50	50
Length (C)	47.0	45.0	62.0	57.0
FL (D)	10	11.5	25	23
FLOD (E)	105	117	93	103
C/Tube Qty	2 / 2	2 / 2	2 / 2	2 / 2
C/Tube Size	50x30.7x105 / 50x30/35x101	50x30.7x105 / 50x30/35x101	50x30.7x105 / 50x30/35x101	50x30.7x105 / 50x30/35x101
Similar Bushings	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	3.62kg	25cm	18cm	22cm
in/lbs	7.98lbs	9.84"	7.09"	8.66"

Units	cm/kg	in/lbs
Weight	3.62kg	7.98lbs
Length	25cm	9.84"
Width	18cm	7.09"
Height	22cm	8.66"

Misc. Product Information

More Information
SKU	W93398
Components Per	8 Bushings, 4 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes
EAN	9319924387786

Installation & Fitment Guide

More Information
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
