What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

W31704

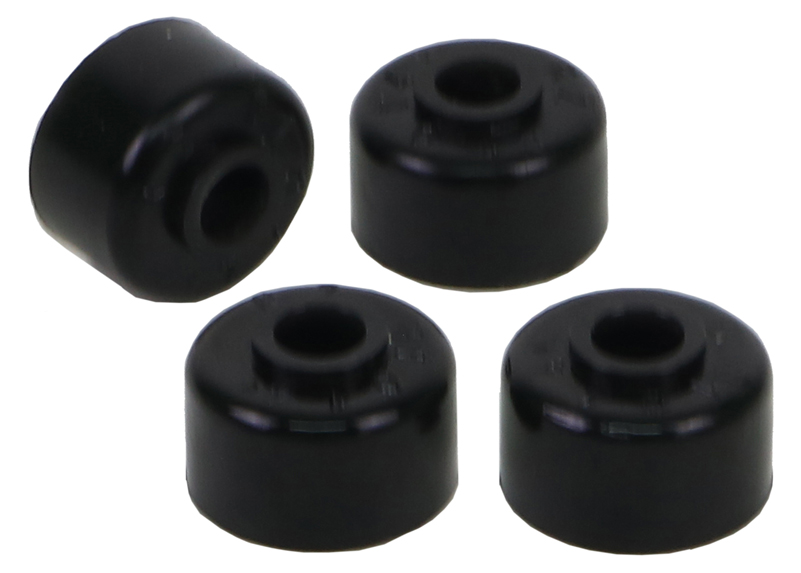

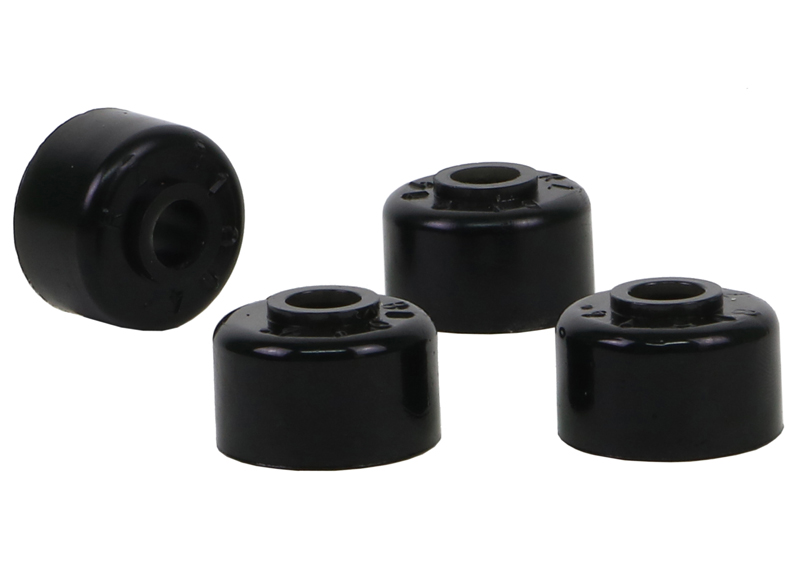

Shock Absorber - Bushing Kit to Suit Various Applications

Shock Absorber - Bushing Kit to Suit Various Applications

OD=28.5, ID=10, L=21mm, locator OD=14mm

Item Price

€17.95

SKU	W31704
Warranty	lifetime warranty
Installation Time	1 Hour
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Compatible Vehicles

UNIVERSAL PART Fits by dimension

This is a universal part designed to suit a wide range of vehicles based on its dimensions and specifications, rather than a specific make and model. The vehicles listed below are confirmed fitments we have verified. This part may also fit hundreds of other vehicles directly, or can be modified to suit your application. Check the part dimensions against your vehicle's requirements before ordering. Any modification required is carried out by the purchaser or installer, not by us.

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Specifications

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
7 - Pin Bush With & Without Spigot	4	28.5	10	15	3	14			Click Here

Bush Type	7 - Pin Bush With & Without Spigot
QTY	4
OD (A)	28.5
ID (B)	10
Length (C)	15
FL (D)	3
FLOD (E)	14
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.048kg	7cm	20cm	14cm
in/lbs	0.11lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.048kg	0.11lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	W31704
Components Per	4 Bushings
Kits Required	1
Sub brand	Replacement
Product Note	Link Bushes OD=28.5, ID=10, L=21mm, locator OD=14mm
EAN	9319924351237

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
