What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

W81650

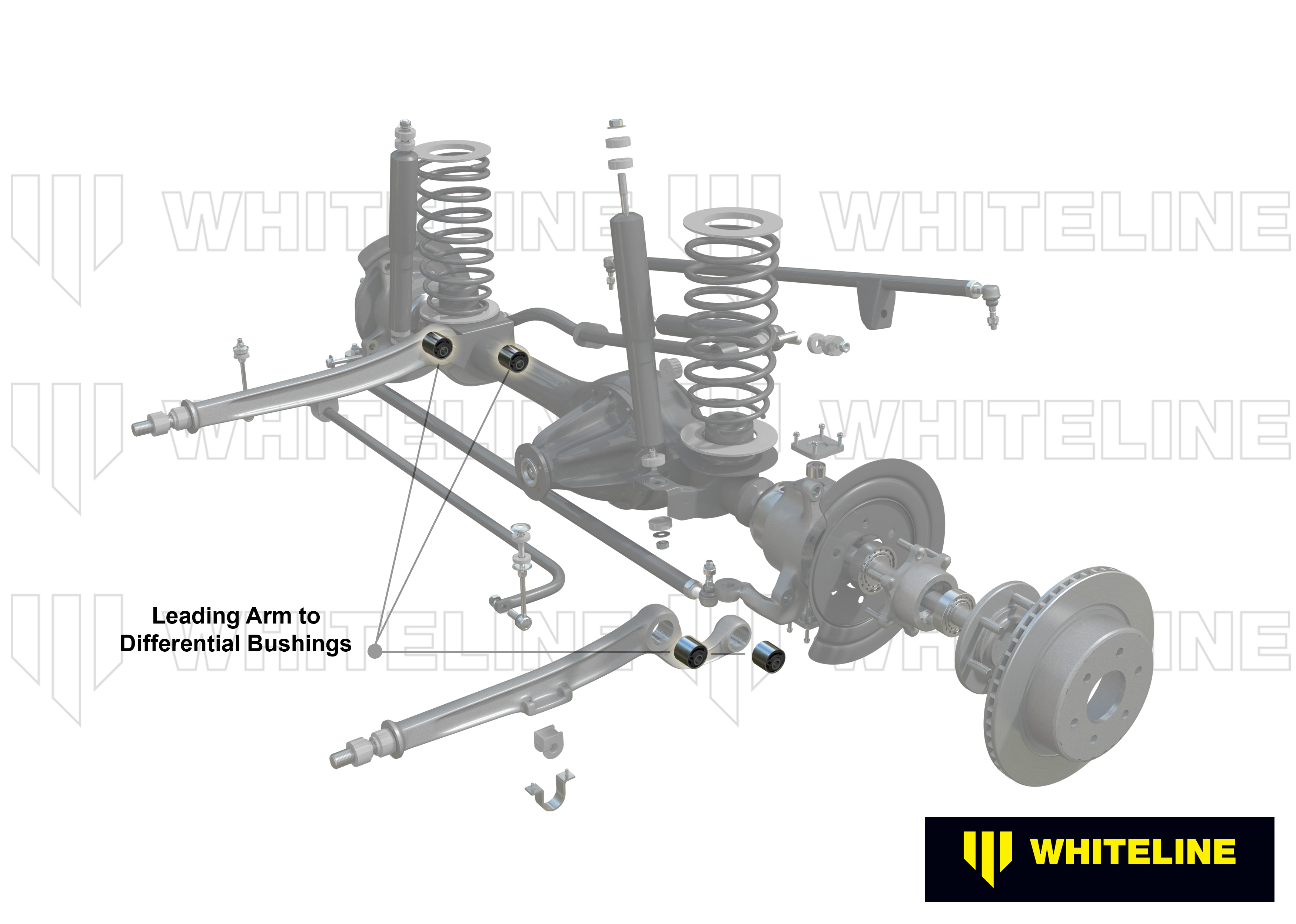

Front Leading Arm - To Differential Bushing Kit to Suit Land Rover Defender and Range Rover Classic

Front Leading Arm - To Differential Bushing Kit to Suit Land Rover Defender and Range Rover Classic

Standard Alignment - 2 piece bushing design - suits 38mm wide arm to - 1992

Item Price

£40.15

SKU	W81650
Warranty	lifetime warranty
Installation Time	3 Hours
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder.

Description

Benefit Note:
Not many know but worn suspension bushings have an effect on braking performance. Leading arm bushings in particular tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

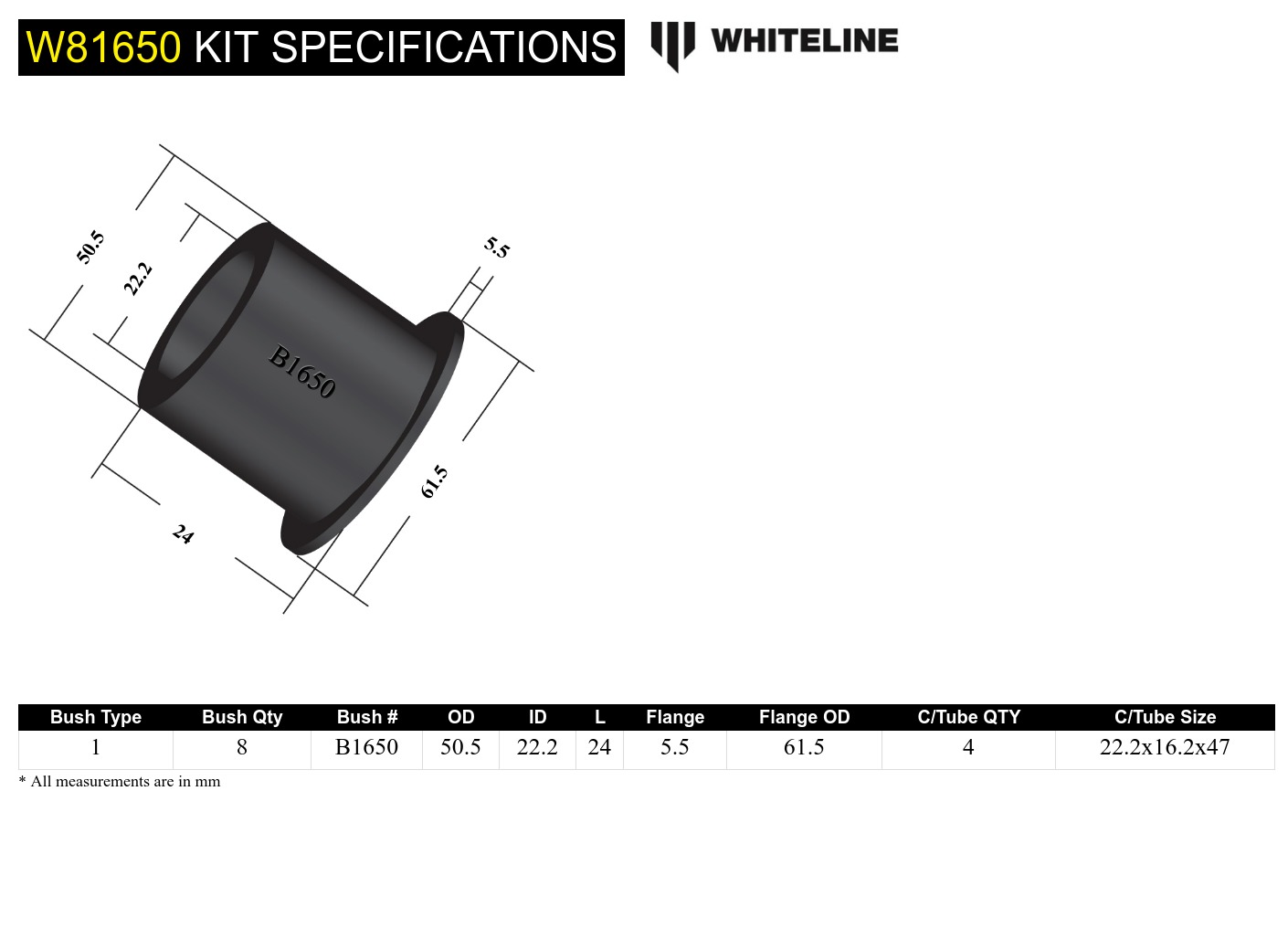

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	8 mm	50.5 mm	22.2 mm	24 mm	5.5 mm	61.5 mm	4	22.2x16.2x47 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	8 mm
OD (A)	50.5 mm
ID (B)	22.2 mm
Length (C)	24 mm
Flange Thickness (D)	5.5 mm
Flange OD (E)	61.5 mm
C/Tube Quantity	4
C/Tube ODxIDxL	22.2x16.2x47 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	8	50.5	22.2	24.0	5.5	61.5	4	22.2x16.2x47	Click Here

Bush Type	1
QTY	8
OD (A)	50.5
ID (B)	22.2
Length (C)	24.0
FL (D)	5.5
FLOD (E)	61.5
C/Tube Qty	4
C/Tube Size	22.2x16.2x47
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.682kg	10cm	26cm	16cm
in/lbs	1.5lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.682kg	1.5lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	W81650

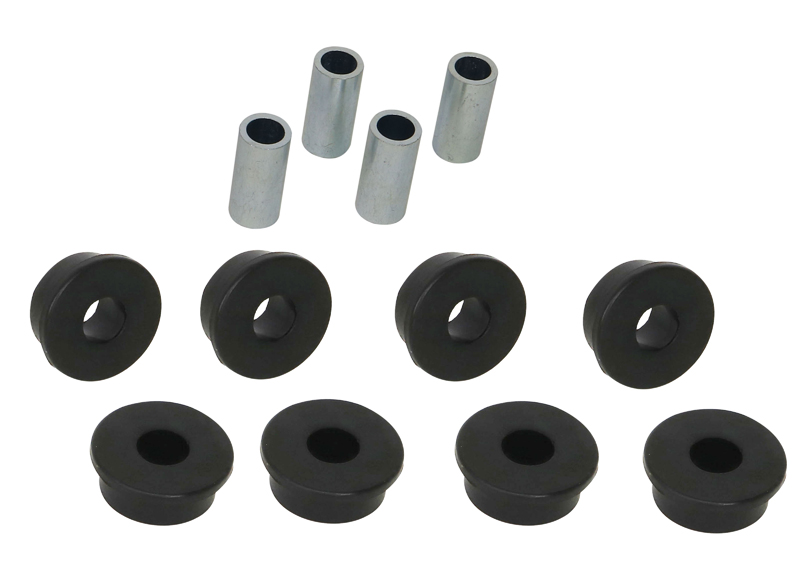

Components Per	8 Bushings, 4 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Delivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN	9319924357116

Installation & Fitment Guide

More Information
Installation Time	3 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
