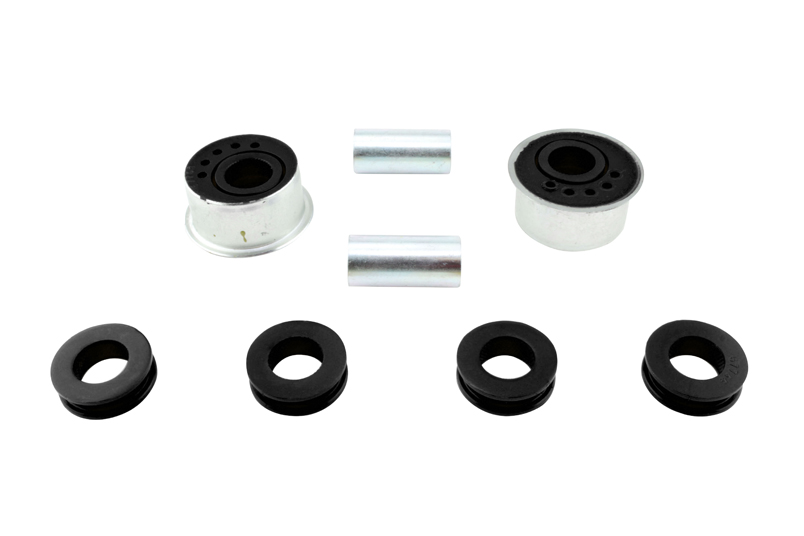

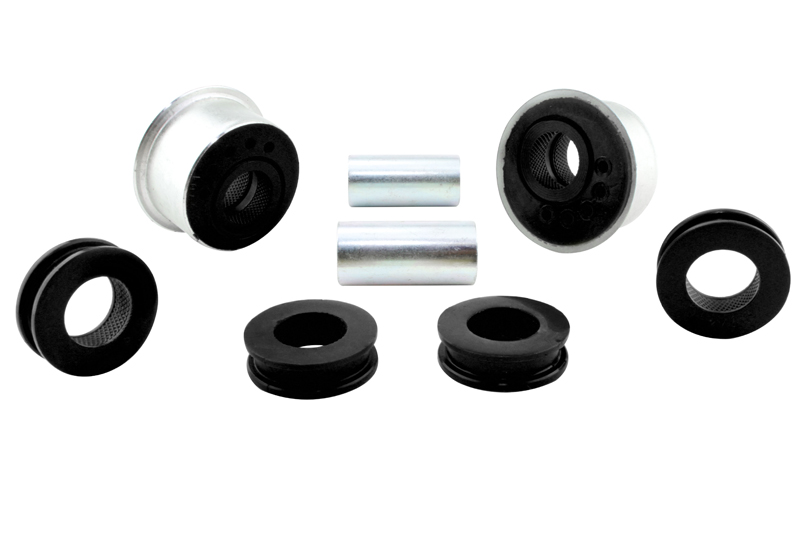

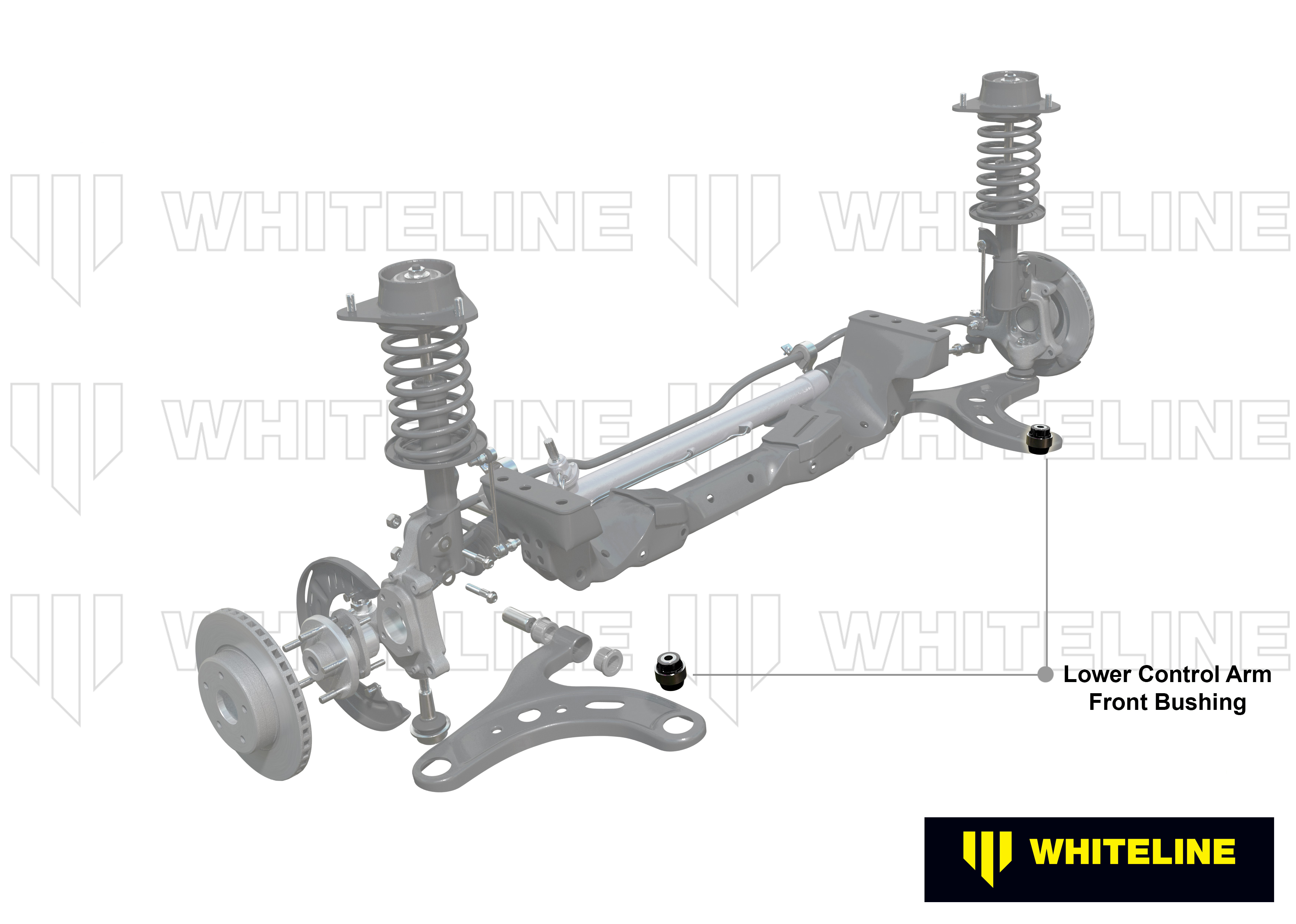

Front Lower Control Arm - Inner Front Bushing Kit Double Offset to Suit Subaru BRZ and Toyota 86

Description

Benefit Note:
Whiteline Anti Dive Kits are primarily designed to improve traction, cornering grip and minimise toe change under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

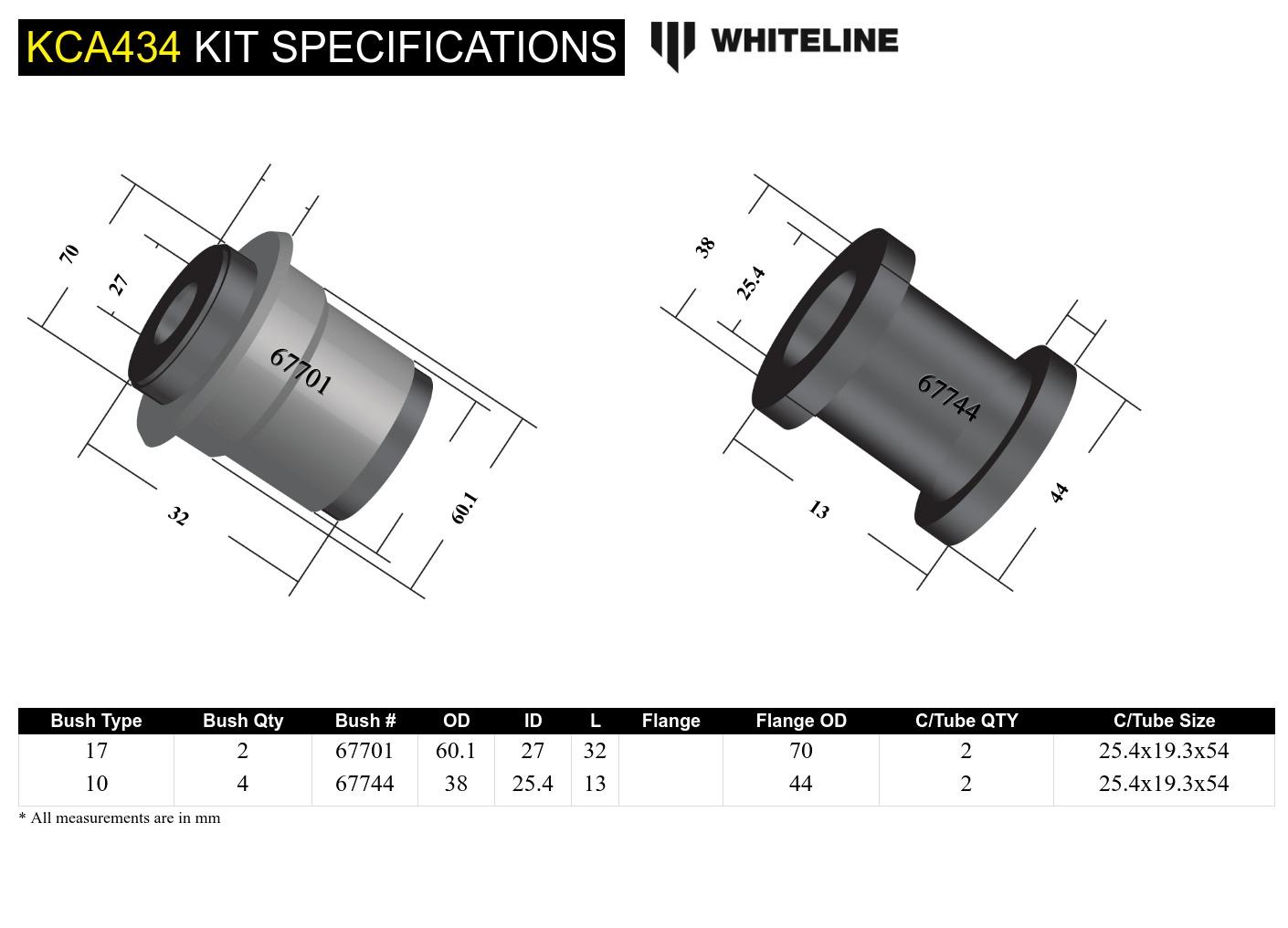

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
17 - Shell With Flange Bushing	2 mm	60.1 mm	27 mm	32 mm		70 mm	2	25.4x19.3x54 mm	Click Here
10 - Cotton Reel With & Without Tapper Bushing	4 mm	38 mm	25.4 mm	13 mm		44 mm	2	25.4x19.3x54 mm	Click Here

Bush Type	17 - Shell With Flange Bushing	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	2 mm	4 mm
OD (A)	60.1 mm	38 mm
ID (B)	27 mm	25.4 mm
Length (C)	32 mm	13 mm
Flange Thickness (D)
Flange OD (E)	70 mm	44 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	25.4x19.3x54 mm	25.4x19.3x54 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster / Anti-dive	Offset	No
Caster / Anti-dive	Offset	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
17	2	60.1	27	32.0		70	2	25.4x19.3x54	Click Here
10	4	38	25.4	13.0		44	2	25.4x19.3x54	Click Here

Bush Type	17	10
QTY	2	4
OD (A)	60.1	38
ID (B)	27	25.4
Length (C)	32.0	13.0
FL (D)
FLOD (E)	70	44
C/Tube Qty	2	2
C/Tube Size	25.4x19.3x54	25.4x19.3x54
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.596kg	10cm	26cm	16cm
in/lbs	1.31lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.596kg	1.31lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	KCA434
Components Per	2 Shell Bushings, 4 Bushings, 2 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 2 Tubes
EAN	9319924388516

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
