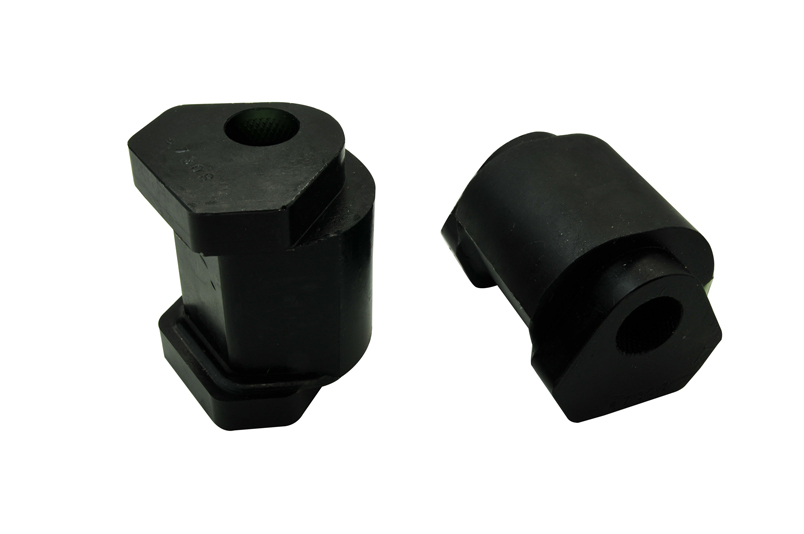

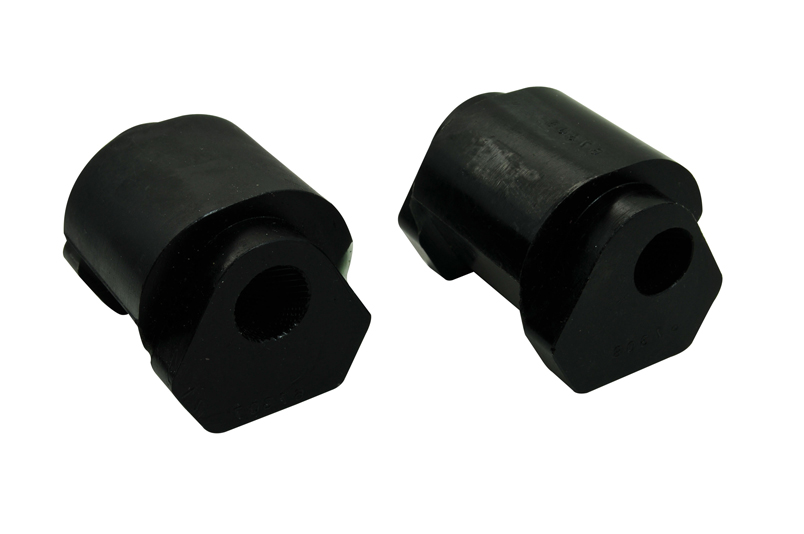

Front Lower Control Arm - Inner Rear Bushing Single Offset Kit to Suit Nissan Elgrand E50 and Pathfinder R50

Description

Benefit Note:
Not all roads are flat, believe it or not sometimes the road can cause the car to pull either left or right. This Whiteline kit is supplied with a passenger side offset bushing to increase caster and a drivers side standard bushing to maintain OEM caster. This will allow the wheel alignment geometry to be adjusted accordingly to rectify the pull in the car by staggering the offset of the caster. This is a non tyre wearing geometry change that has a substantial effect on a vehicles ability to track straight.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

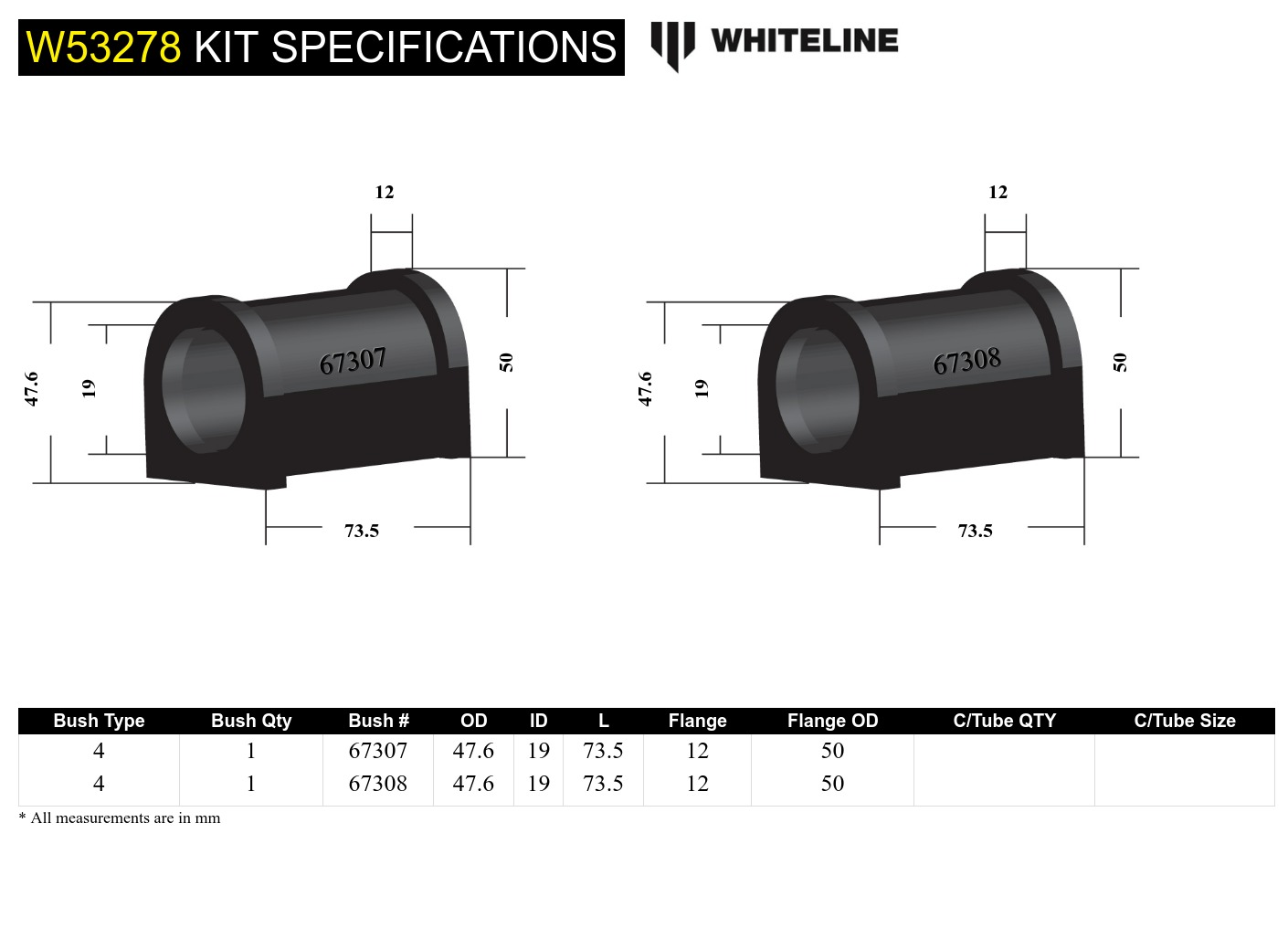

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
4 - D-bushing With Flange	1 mm	47.6 mm	19 mm	73.5 mm	12 mm	50 mm			Click Here
4 - D-bushing With Flange	1 mm	47.6 mm	19 mm	73.5 mm	12 mm	50 mm			Click Here

Bush Type	4 - D-bushing With Flange	4 - D-bushing With Flange
Bush Quantity	1 mm	1 mm
OD (A)	47.6 mm	47.6 mm
ID (B)	19 mm	19 mm
Length (C)	73.5 mm	73.5 mm
Flange Thickness (D)	12 mm	12 mm
Flange OD (E)	50 mm	50 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Offset	No
Caster	Offset	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
4	1	47.6	19	73.5	12	50			Click Here
4	1	47.6	19	73.5	12	50			Click Here

Bush Type	4	4
QTY	1	1
OD (A)	47.6	47.6
ID (B)	19	19
Length (C)	73.5	73.5
FL (D)	12	12
FLOD (E)	50	50
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.325kg	7cm	20cm	14cm
in/lbs	0.72lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.325kg	0.72lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	W53278
Components Per	2 Bushings
Kits Required	1
Sub brand	Replacement
Product Note	Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings
EAN	9319924376254

Installation & Fitment Guide

More Information
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item, we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Whiteline are covered by a national warranty. The product's warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Whiteline with a receipt to be eligible for a refund. See full warranty claim criteria here.

SKU	W53278
Warranty	lifetime warranty
Installation Time	2.5 Hours
Fitting Position	Front Axle
