What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

W71439

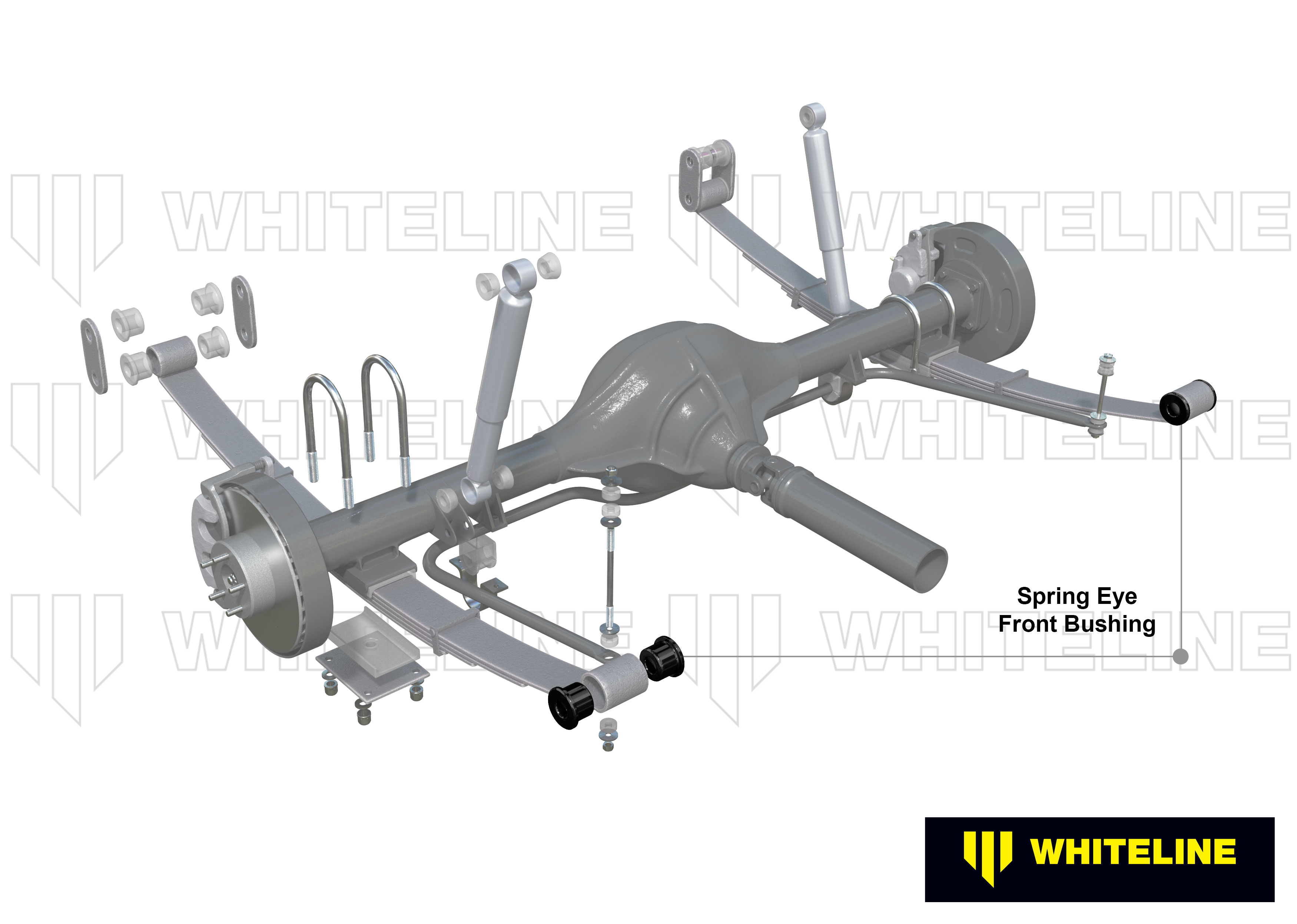

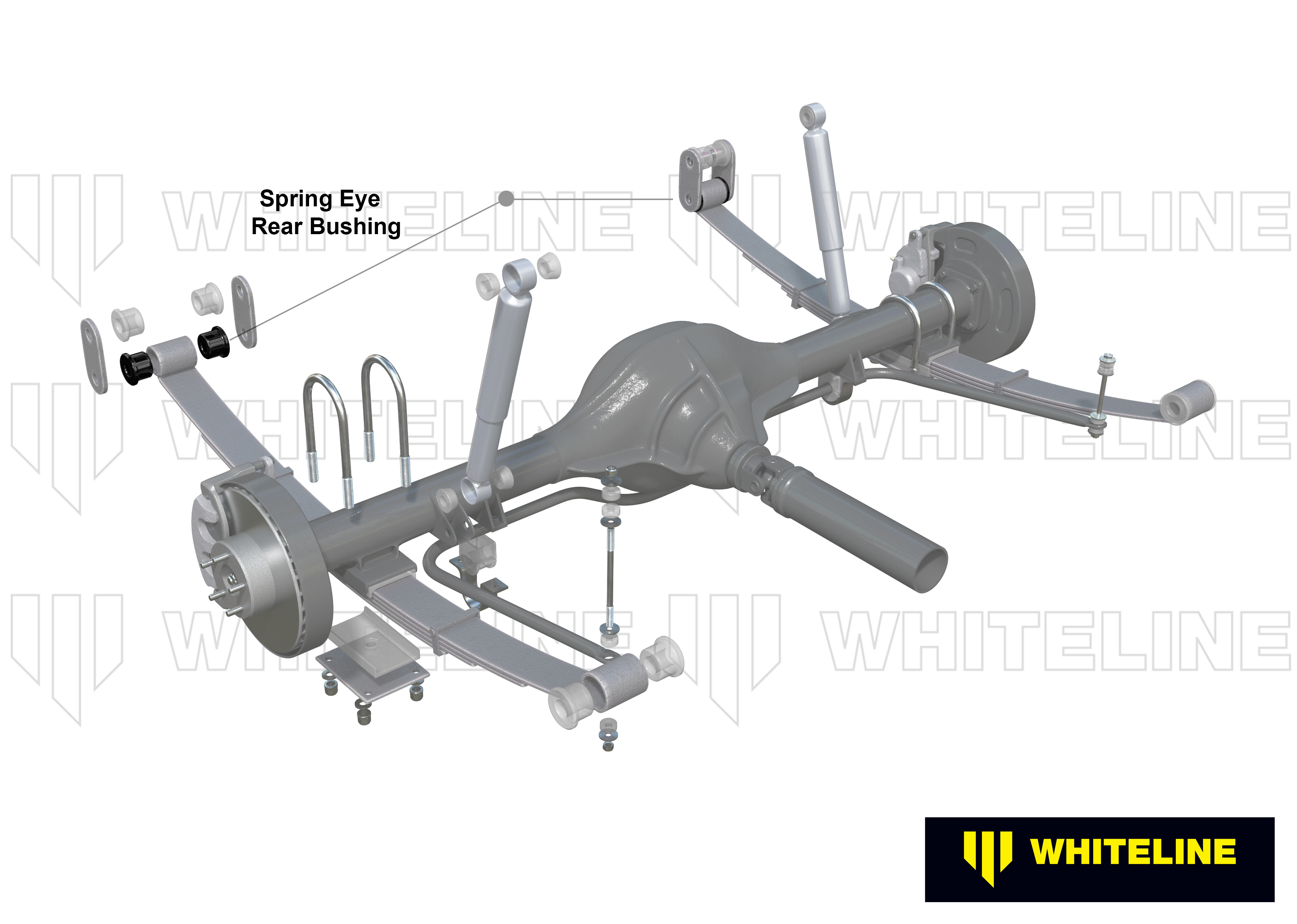

Leaf Spring - Bushing Kit to Suit Mazda T Series 1st and 2nd Gen

Leaf Spring - Bushing Kit to Suit Mazda T Series 1st and 2nd Gen

Item Price

£18.07

SKU	W71439
Warranty	lifetime warranty
Installation Time	4 Hours
Fitting Position	Front Axle

Pre-Order

Available for Preorder.

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

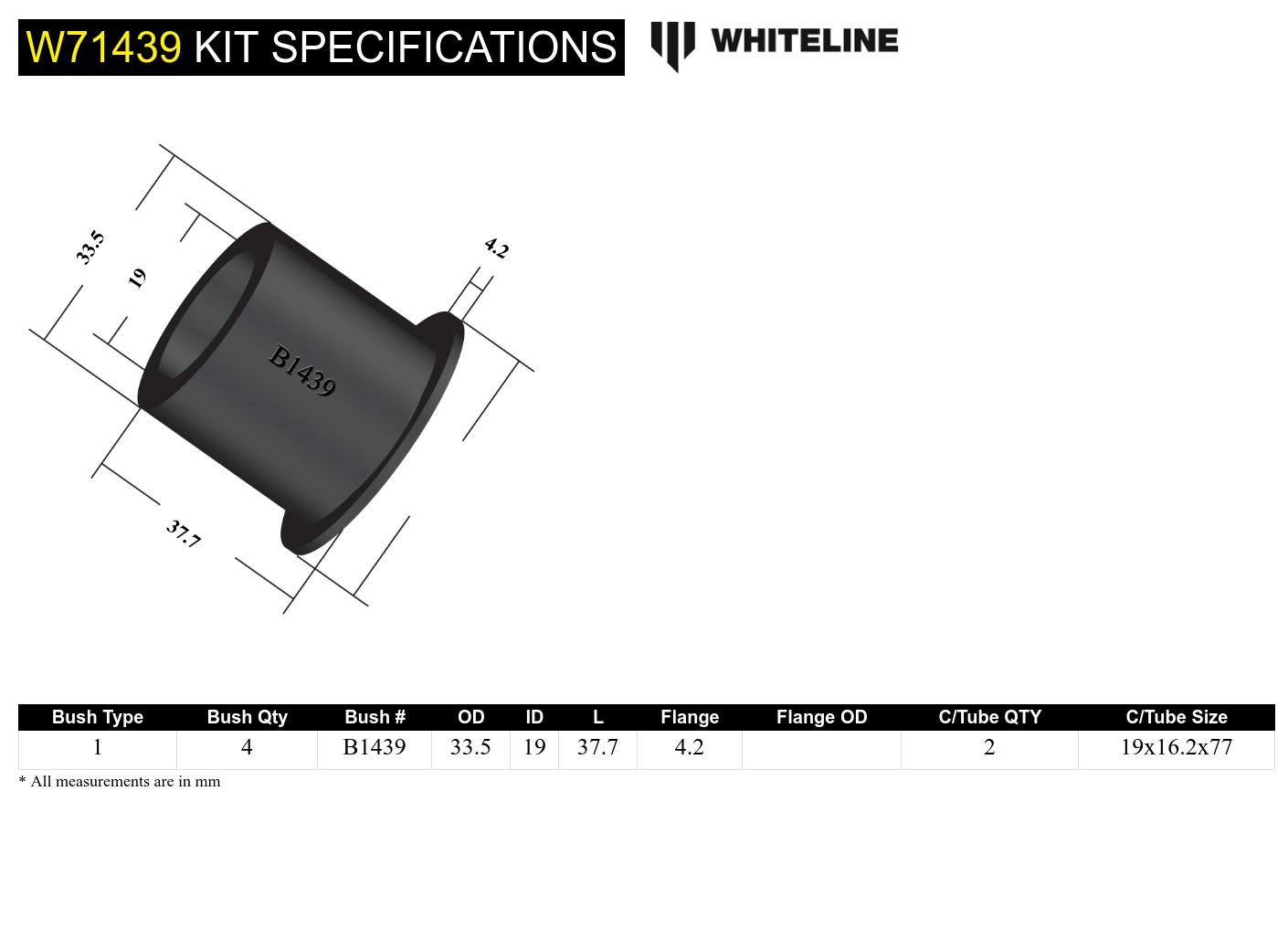

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	33.5 mm	19 mm	37.7 mm	4.2 mm		2	19x16.2x77 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	33.5 mm
ID (B)	19 mm
Length (C)	37.7 mm
Flange Thickness (D)	4.2 mm
Flange OD (E)
C/Tube Quantity	2
C/Tube ODxIDxL	19x16.2x77 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	33.5	19	37.7	4.2		2	19x16.2x77	Click Here

Bush Type	1
QTY	4
OD (A)	33.5
ID (B)	19
Length (C)	37.7
FL (D)	4.2
FLOD (E)
C/Tube Qty	2
C/Tube Size	19x16.2x77
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.25kg	7cm	20cm	14cm
in/lbs	0.55lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.25kg	0.55lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	W71439

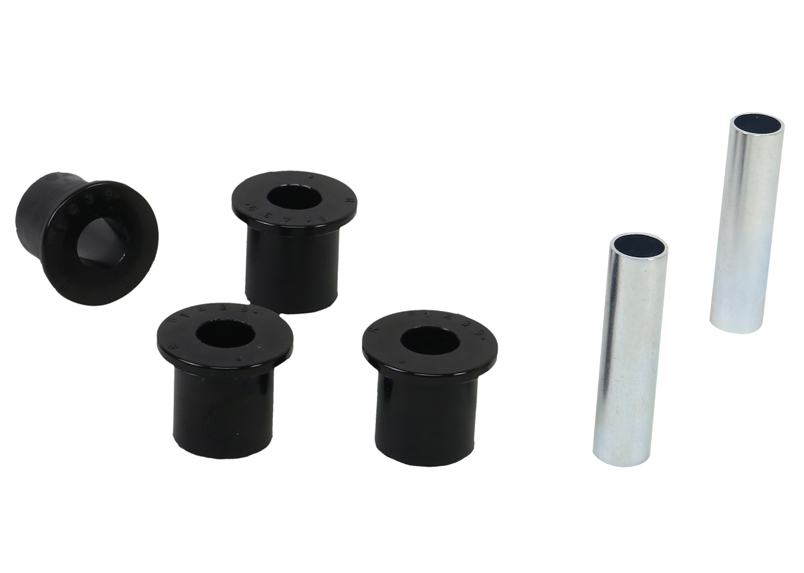

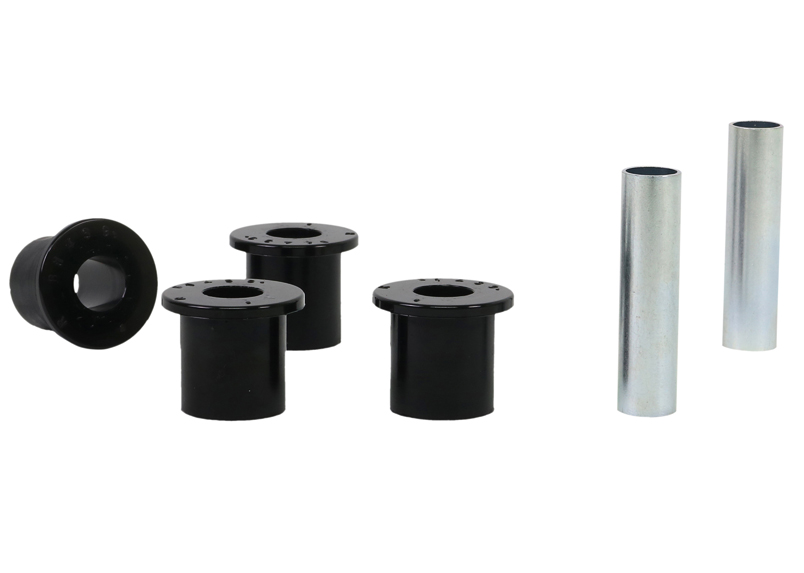

Components Per	4 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN	9319924355655

Installation & Fitment Guide

More Information
Installation Time	4 Hours
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
