W63388

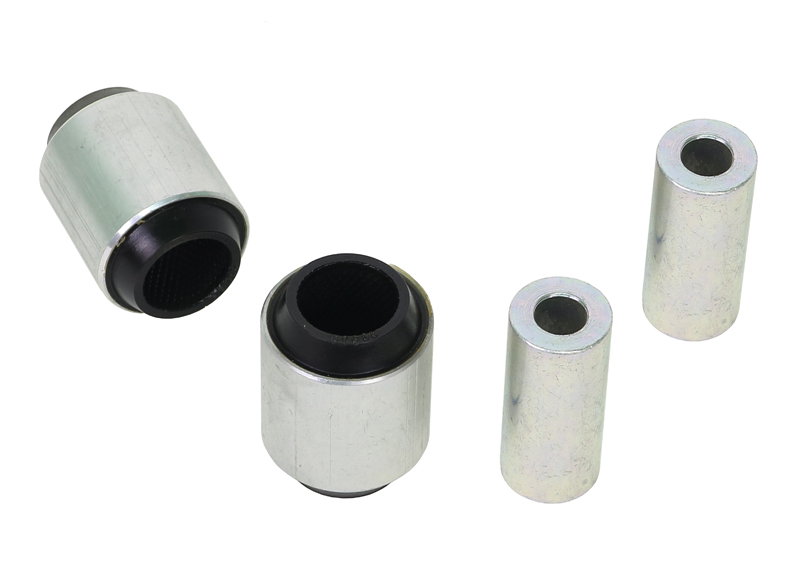

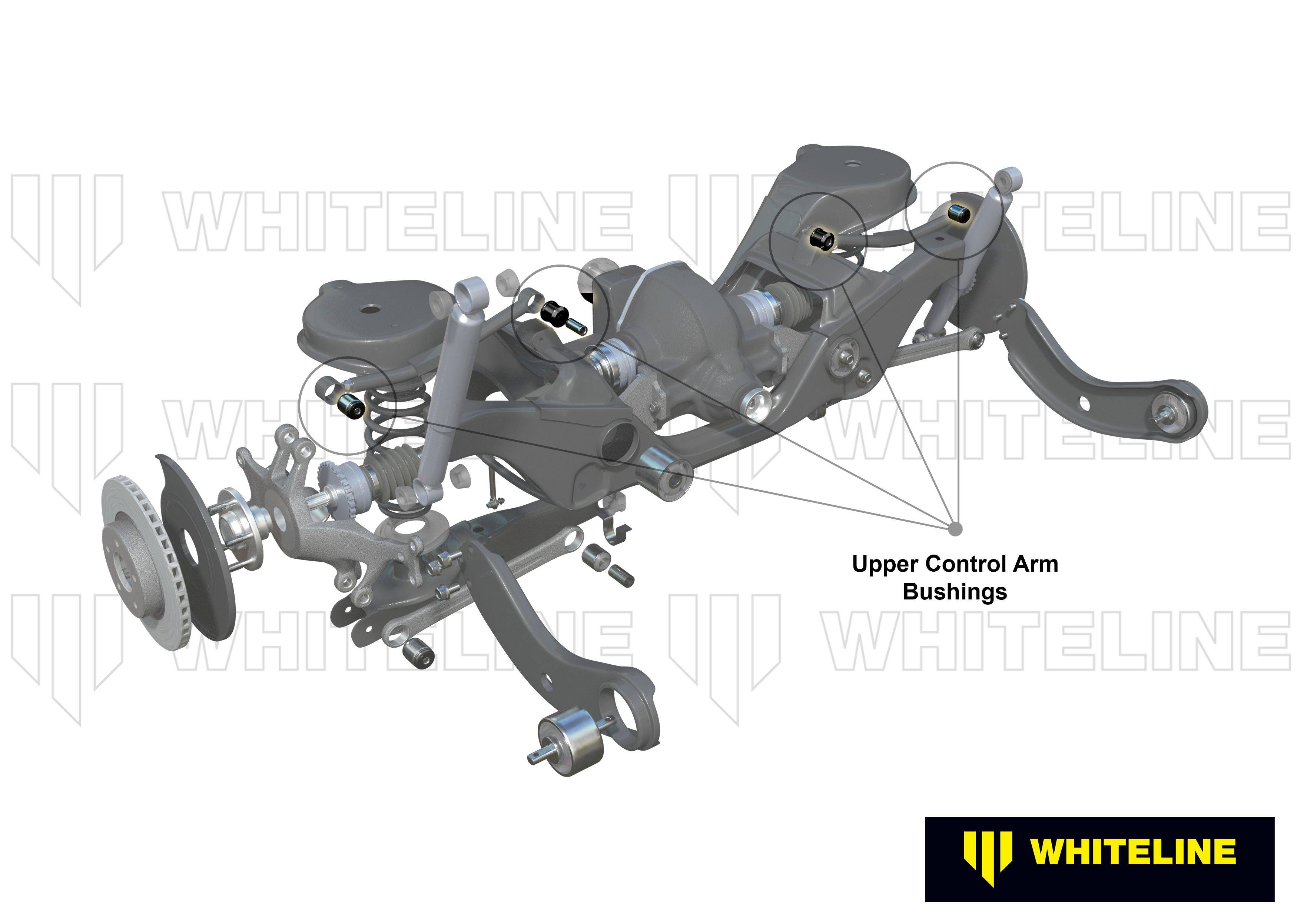

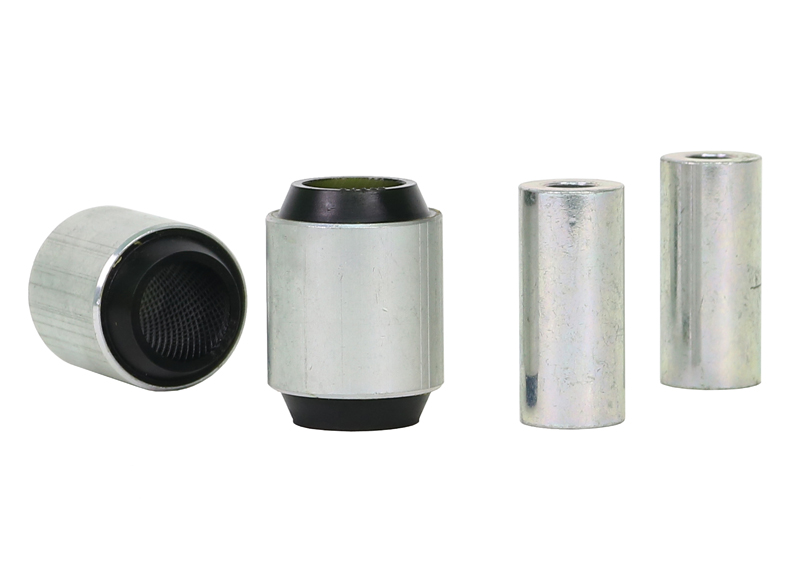

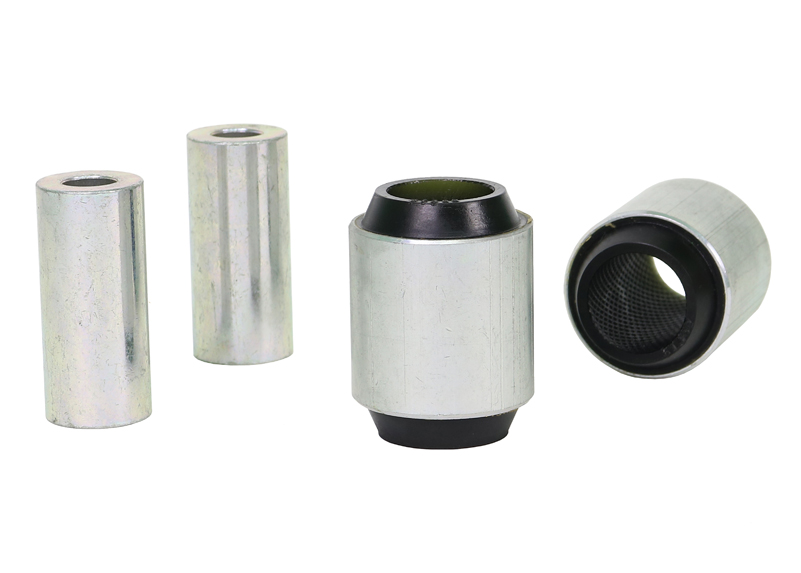

Rear Control Arm Upper - Bushing Kit to Suit Mazda RX-8 FE

Rear Control Arm Upper - Bushing Kit to Suit Mazda RX-8 FE

Item Price

£72.14 £57.72

SKU	W63388
Warranty	lifetime warranty
Installation Time	3 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

SALE ENDS IN

Pre-Order

Available for Preorder. Stock due on 8/8/2026.

Description

Benefit Note:
Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

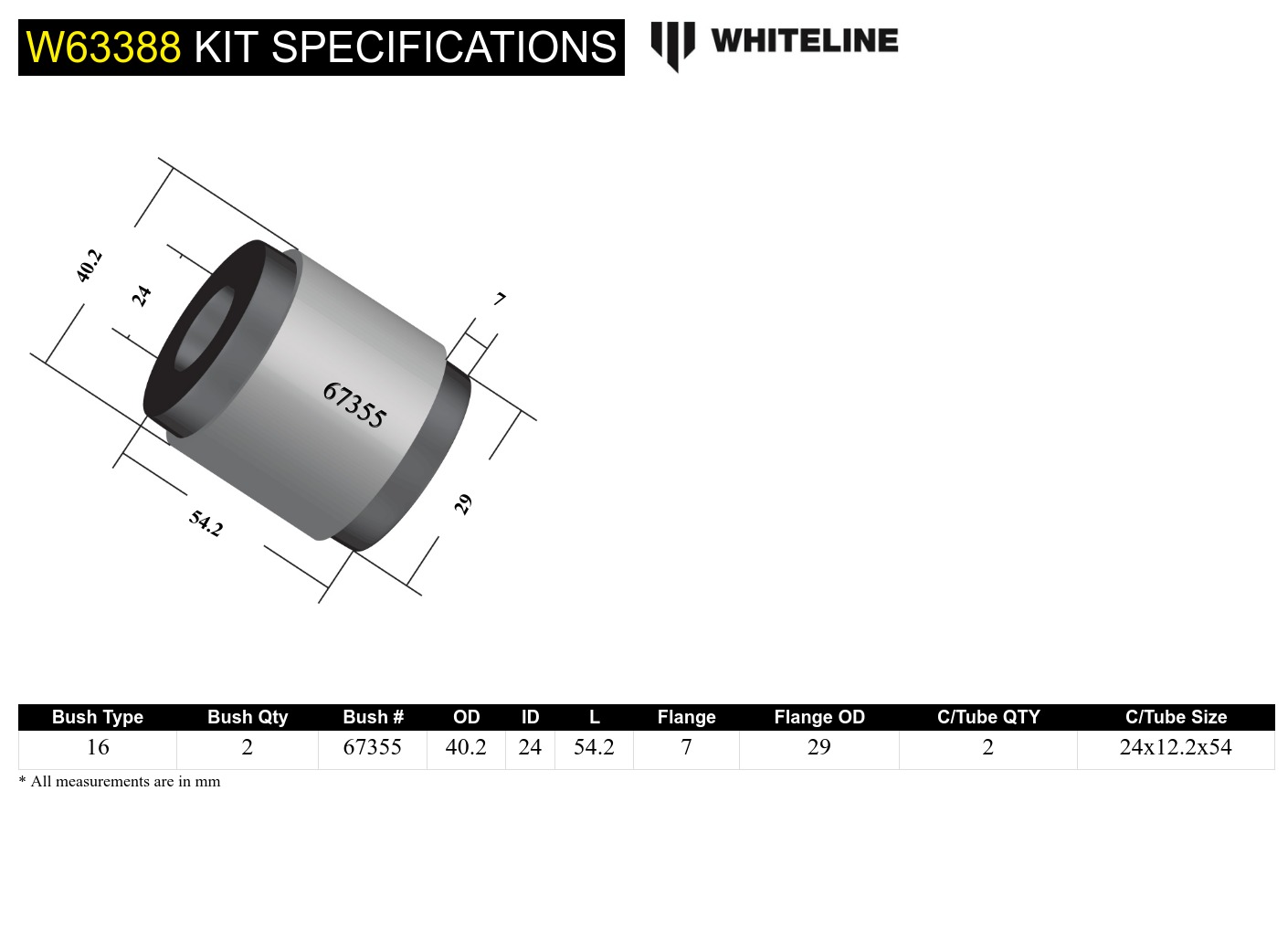

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	2 mm	40.2 mm	24 mm	54.2 mm	7 mm	29 mm	2	24x12.2x54 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	2 mm
OD (A)	40.2 mm
ID (B)	24 mm
Length (C)	54.2 mm
Flange Thickness (D)	7 mm
Flange OD (E)	29 mm
C/Tube Quantity	2
C/Tube ODxIDxL	24x12.2x54 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	2	40.2	24	54.2	7	29	2	24x12.2x54	Click Here

Bush Type	16
QTY	2
OD (A)	40.2
ID (B)	24
Length (C)	54.2
FL (D)	7
FLOD (E)	29
C/Tube Qty	2
C/Tube Size	24x12.2x54
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.495kg	7cm	14cm	20cm
in/lbs	1.09lbs	2.76"	5.51"	7.87"

Units	cm/kg	in/lbs
Weight	0.495kg	1.09lbs
Length	7cm	2.76"
Width	14cm	5.51"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	W63388
Components Per	2 Shell Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Greatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN	9319924383320

Installation & Fitment Guide

More Information
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
