United StatesRear Subframe - Bushing Kit to Suit Subaru Forester, Impreza WRX/STi, Levorg, Liberty and Outback
 SKU | KDT937 |
|---|---|
 Warranty | 3 years warranty or up to 60,000km |
 Installation Time | 2 Hours |
 Fitting Position | Rear Axle |
Subaru's rear subframe is mounted on rubber voided bushings which allows for a significant amount of compliance/movement in the frame during high cornering loads. Whiteline's low compliance polymer bushings eliminate this condition by positively locking in the frame position and removing the 'lateral walking' found when using high grip tires. The polymer bushing design has soft 'stand-off' buffers on the top and bottom surfaces of the bushing to allow slight vertical bushing movement of the subframe to eliminate that 'rock-solid' NVH feel and cushion against minor bumps and allow solid positive location when high torque and power is applied.
*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

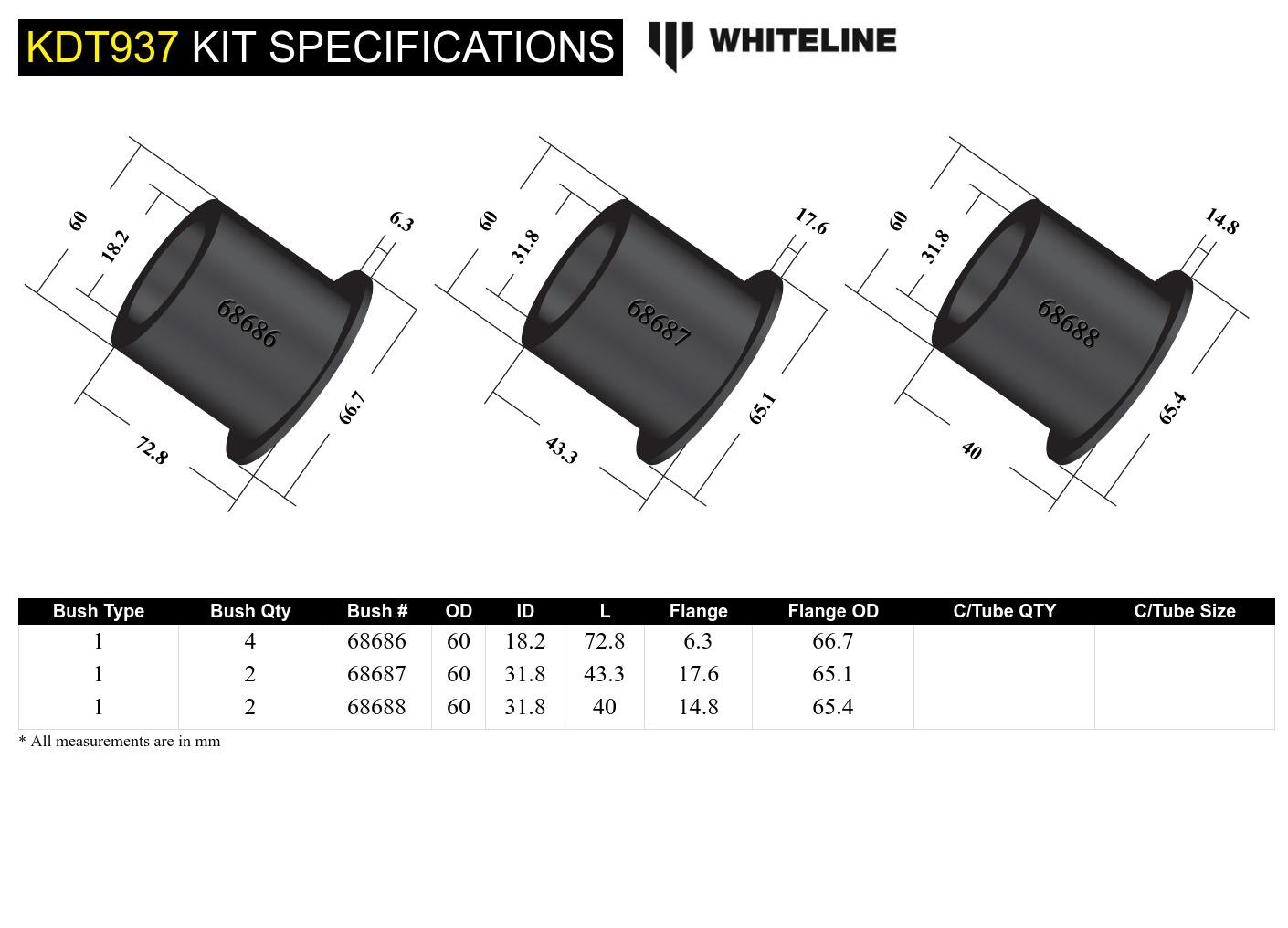

Bushing Design Dimensions (mm)
| Bush Type | QTY | OD (A) | ID (B) | Length (C) | FL (D) | FLOD (E) | C/Tube Qty | C/Tube Size | Similar Bushings |
|---|---|---|---|---|---|---|---|---|---|
| 1 - Shackle Bushing | 2 | 60 | 31.8 | 43.3 | 17.6 | 65.1 | Click Here | ||
| 1 - Shackle Bushing | 4 | 60 | 18.2 | 72.8 | 6.3 | 66.7 | Click Here | ||
| 1 - Shackle Bushing | 2 | 60 | 31.8 | 40 | 14.8 | 65.4 | Click Here |
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|---|
| QTY | 2 | 4 | 2 |
| OD (A) | 60 | 60 | 60 |
| ID (B) | 31.8 | 18.2 | 31.8 |
| Length (C) | 43.3 | 72.8 | 40 |
| FL (D) | 17.6 | 6.3 | 14.8 |
| FLOD (E) | 65.1 | 66.7 | 65.4 |
| C/Tube Qty | |||
| C/Tube Size | |||
| Similar Bushings | Click Here | Click Here | Click Here |
Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register
Packaged Weight and Dimensions
| Units | Weight | Length | Width | Height |
|---|---|---|---|---|
| cm/kg | 1.2kg | 30cm | 10cm | 20cm |
| in/lbs | 2.65lbs | 11.81" | 3.94" | 7.87" |
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1.2kg | 2.65lbs |
| Length | 30cm | 11.81" |
| Width | 10cm | 3.94" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | KDT937 |
| Components Per | 8 Bushings, 4 Tubes |
| Kits Required | 1 |
| Sub brand | Performance |

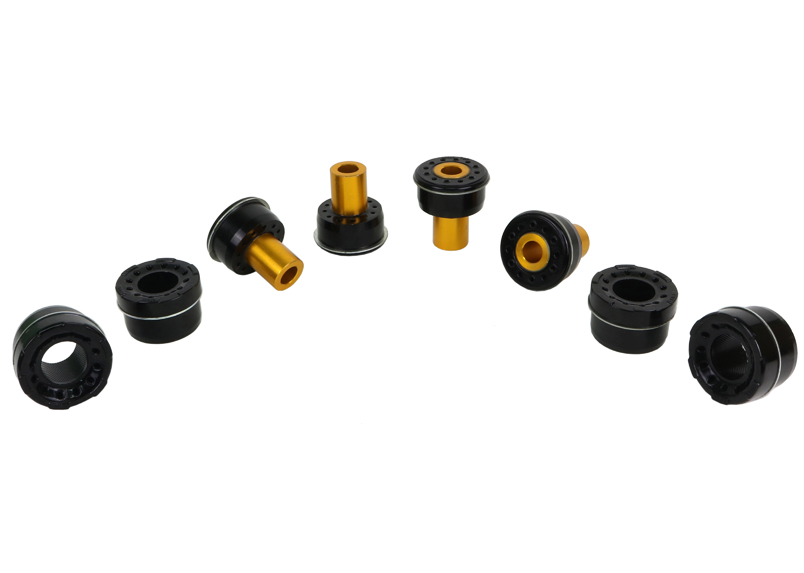

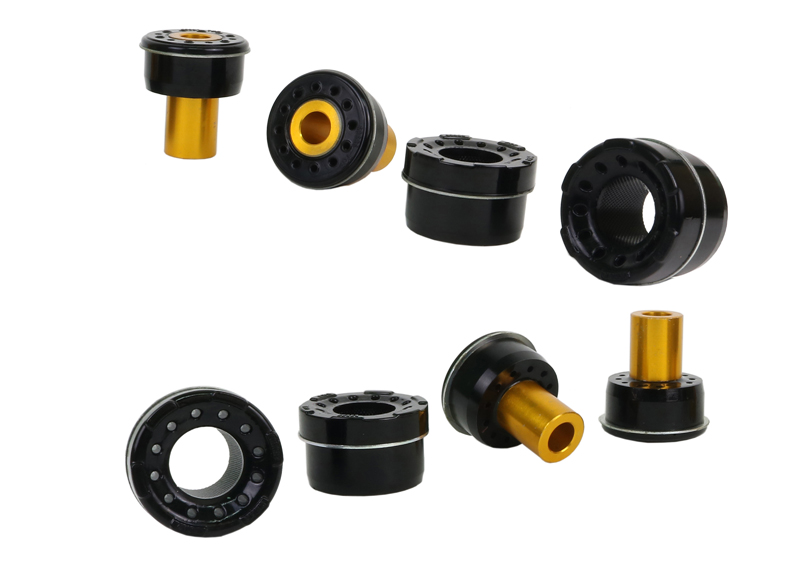

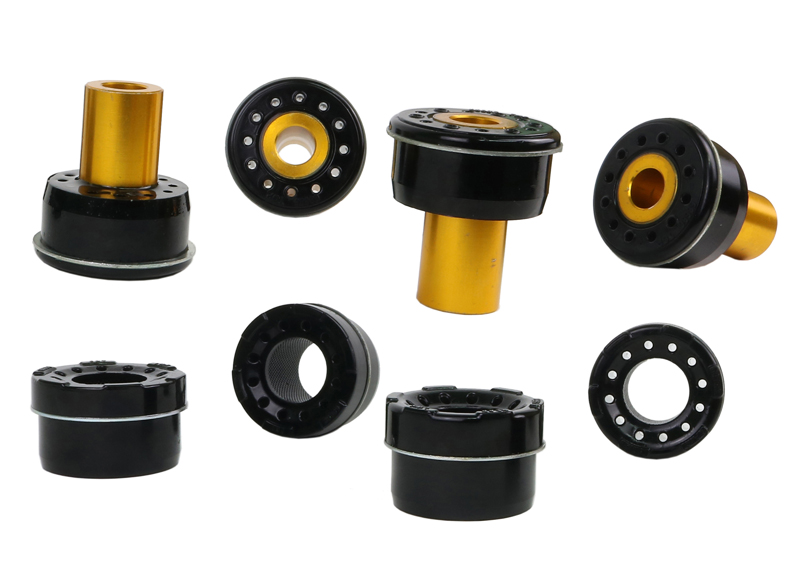

| Product Note | Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes |
| EAN | 9319924402595 |
 Install Guide | Downloads |
|---|---|
| Installation Time | 2 Hours |
 Installation Difficulty | Tricky installation may take longer then you think if you are not experienced. |
 Wheel Alignment Required | Yes |
| Recommend Wheel Alignment | Rear Wheel Alignment |
