What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

BTK017

Front and Rear Sway Bar - Vehicle Kit to Suit Toyota Fortuner GUN156 4wd

Front and Rear Sway Bar - Vehicle Kit to Suit Toyota Fortuner GUN156 4wd

Item Price

$723.80 $579.04

SKU	BTK017
Warranty	3 years warranty or up to 60,000km
Installation Time	2.5 Hours
Fitting Position	Front and Rear

Select your car to check fitment.

SALE ENDS IN

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

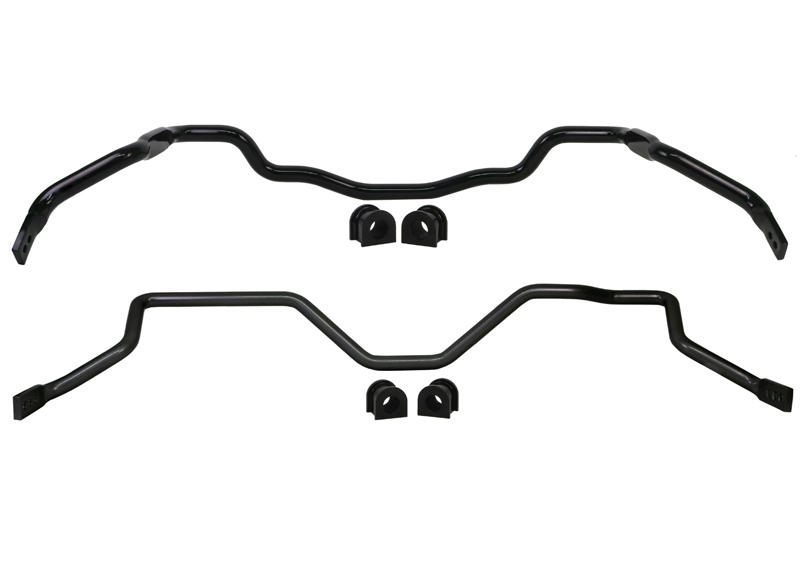

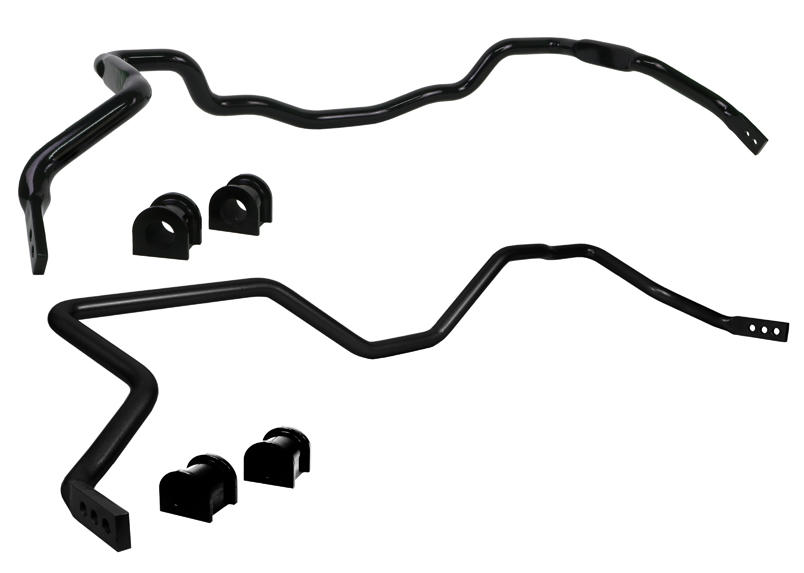

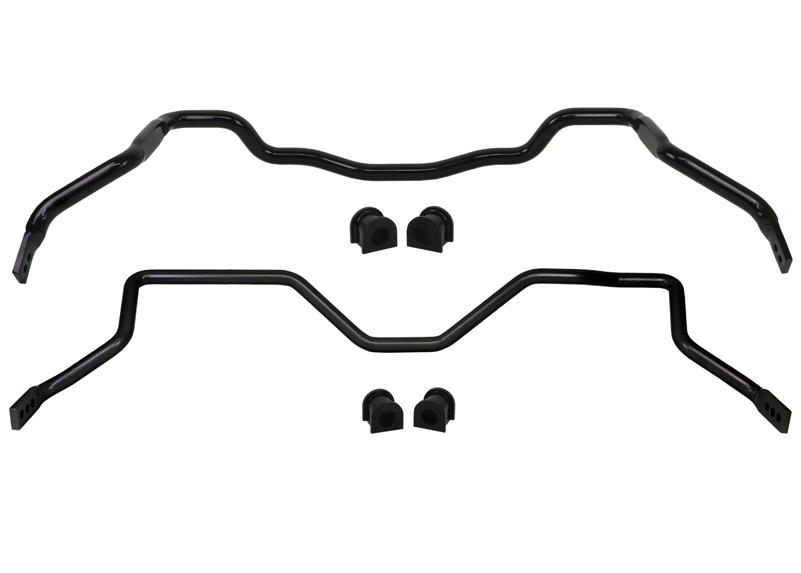

Kit Contains:

BTF93Z and BTR98Z - essential to 'Activate more grip'

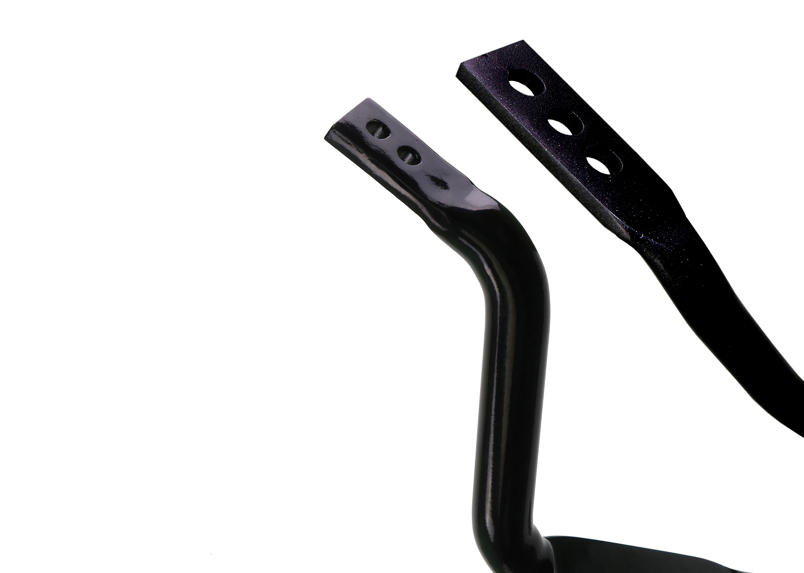

Front Sway Bar - 33mm 2 Point Adjustable
Rear Sway Bar - 24mm 3 Point Adjustable

Upgrading sway bars is not just limited to sports or passenger vehicles. 4x4’s and utility’s benefit greatly from larger sway bars particularly where heavier loads, towing and /or highway driving is involved.

Heavy duty 4x4 sway bars assist with;

Minimising excess body roll
Dramatically improving handling performance
Load carrying
Steering response
Braking stability and response
Most importantly improving safety

We recommend fitting this kit, to get a complete handling upgrade.Benefit Note: Engineered to 'Activate More Grip', BTK017 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 33mm 2 point adjustable front sway bar and 24mm 3 point adjustable rear sway bar, the kit is completed with front and rear sway bar links and mounting accessories (where applicable) that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Location	Sway Bar	Diameter (mm)	Diameter (in) Fraction	Diameter (in) Decimal	Material	Sway Bar Adjustment Type	Sway Bar Link Included
Front	BTF93Z	33	1 19/64"	1.299	Solid Spring Steel	2 Point Adjustable	No
Rear	BTR98Z	24	61/64"	0.944	Solid Spring Steel	3 Point Adjustable	No

Location	Front	Rear
Sway Bar	BTF93Z	BTR98Z
Diameter (mm)	33	24
Diameter (in) Fraction	1 19/64"	61/64"
Diameter (in) Decimal	1.299	0.944
Material	Solid Spring Steel	Solid Spring Steel
Sway Bar Adjustment Type	2 Point Adjustable	3 Point Adjustable
Sway Bar Link Included	No	No

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	19kg	200cm	20cm	20cm
in/lbs	41.89lbs	78.74"	7.87"	7.87"

Units	cm/kg	in/lbs
Weight	19kg	41.89lbs
Length	200cm	78.74"
Width	20cm	7.87"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	BTK017
Components Per	2 Sway Bars, 4 Bushings
Kits Required	1
Sub brand	Performance
Product Note	Improves grip and boosts stability; a complete, premium upgrade. Includes: 33mm 2 point adjustable Front Sway bar & 24mm 3 point adjustable Rear Sway bar.
EAN	9319924465194

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2.5 Hours
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front and Rear Wheel Alignment
