Diff Drop Kits

Diff drop kits are designed to reposition the front differential on lifted independent front suspension (IFS) 4WDs, helping correct CV shaft angles changed by increased ride height. A front diff drop kit typically uses purpose-designed mounting components to lower the differential relative to its lifted position, reducing the operating angle of the front CV shafts.

This does not create additional suspension lift or change the vehicle's ride height. Instead, a diff drop addresses driveline geometry that can be affected by a suspension lift. Whether one is required depends on the vehicle, suspension design, lift height and resulting CV angles.

What Is a Diff Drop Kit?

A diff drop kit is a driveline geometry correction designed for applicable IFS 4WDs with modified suspension height.

The front differential sends drive to the wheels through CV shafts. When suspension height is increased, the relationship between the differential outputs and wheel hubs can change, causing the CV shafts to operate at steeper angles at normal ride height.

A diff drop repositions the front differential to reduce these angles.

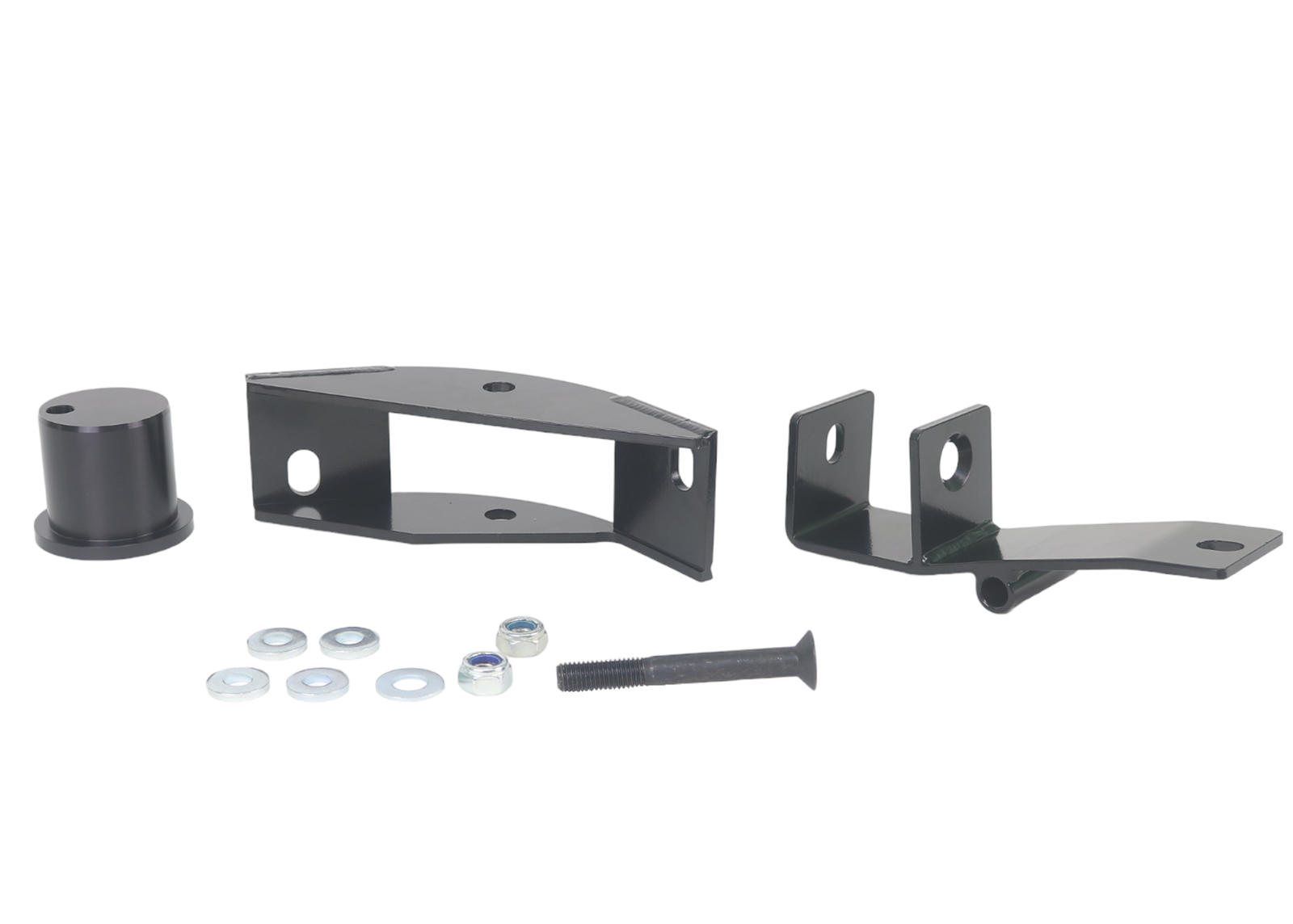

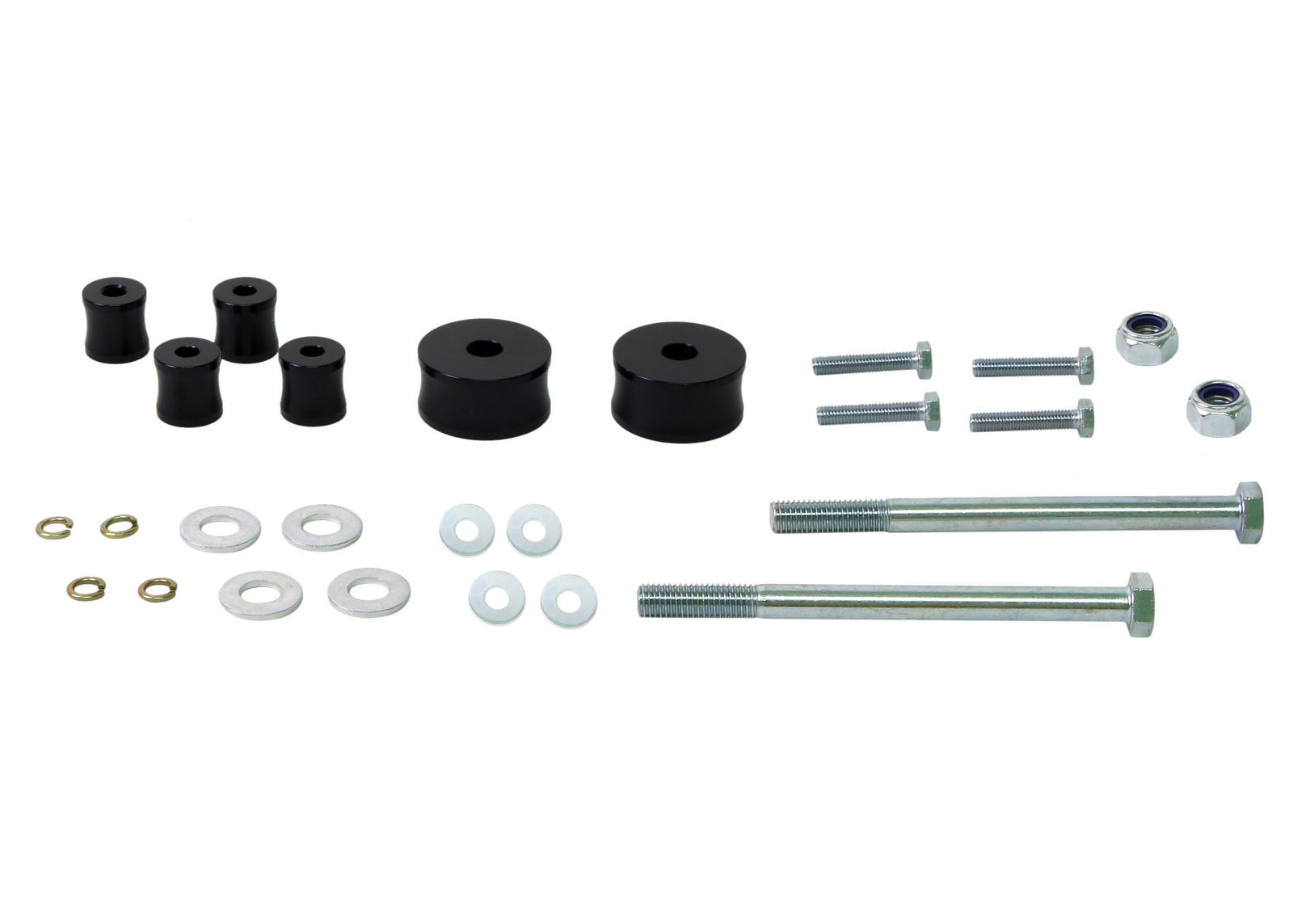

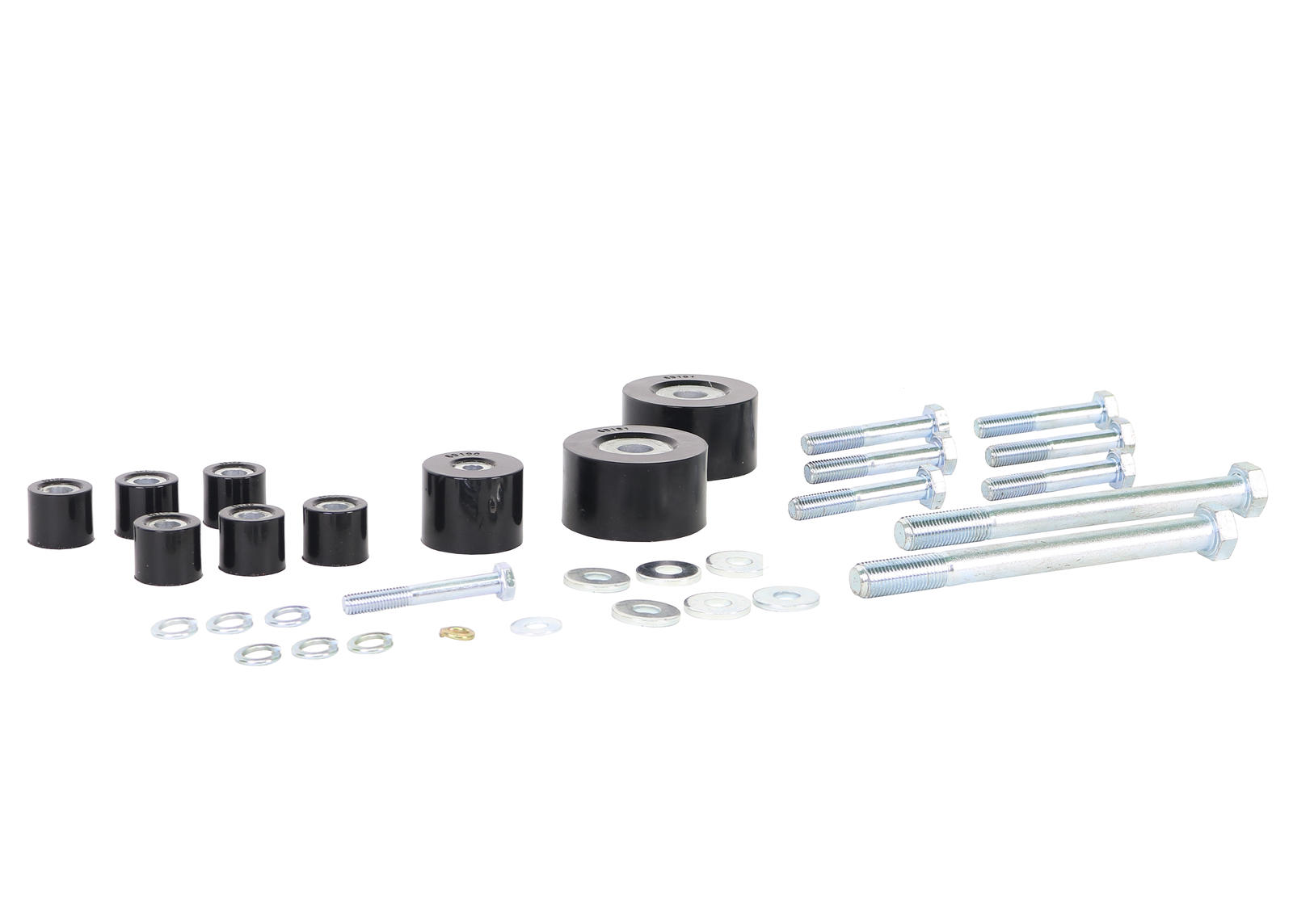

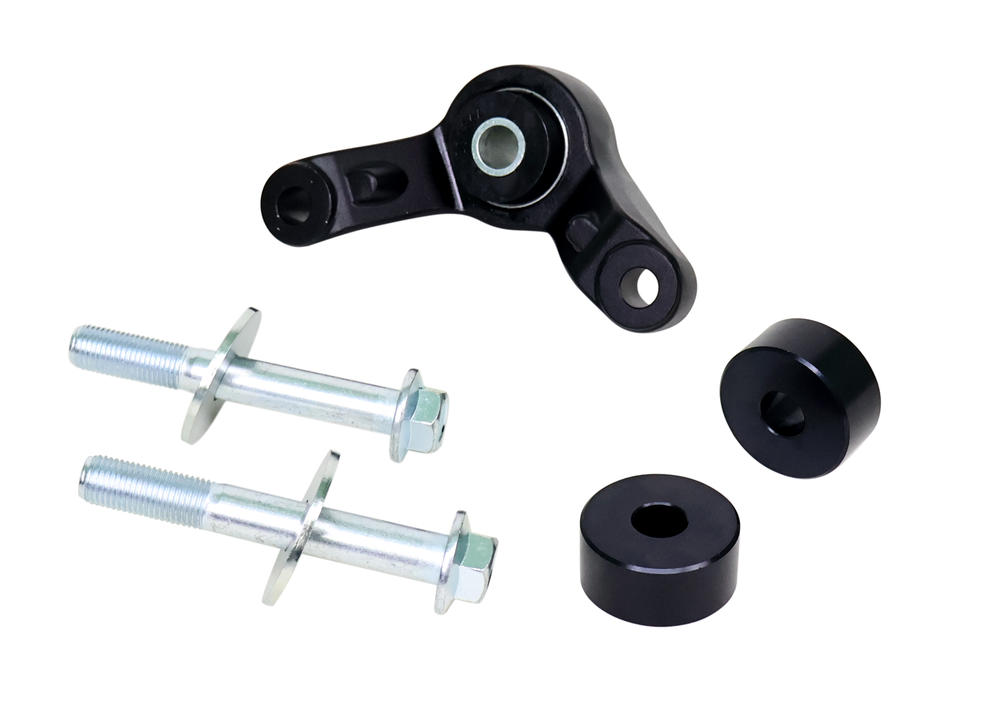

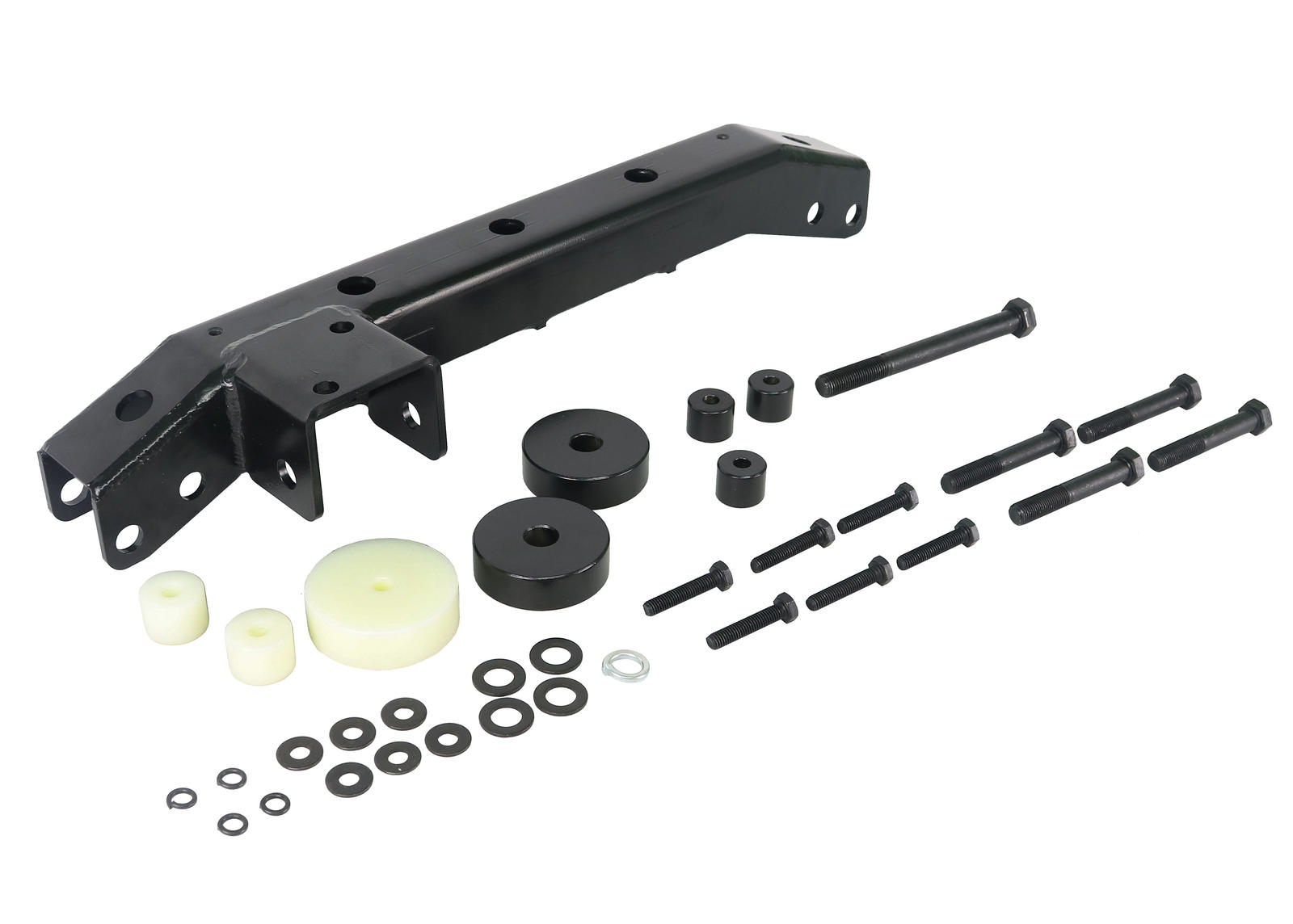

Depending on the application, this can be achieved through spacers, brackets or other mounting components designed for the differential mounting arrangement.

The goal is not to make the CV shafts completely level. It is to establish more appropriate operating geometry for the modified suspension setup.

Why Do Lifted 4WDs Need a Diff Drop?

A diff drop may be needed when a suspension lift causes the front CV shafts to operate at increased angles. This is particularly relevant to independent front suspension because the differential is mounted to the vehicle while the wheels move independently through the suspension's travel.

Not every lifted 4WD needs one. The need depends on how much the suspension geometry and CV operating angles have changed.

How a Lift Changes CV Angles

At standard ride height, the front CV shafts operate through angles determined by the positions of the differential outputs and wheel hubs.

Increasing suspension ride height can change that relationship. At the vehicle's new resting height, the wheel hubs may sit farther below the differential outputs, increasing the downward angle of the CV shafts.

The CV joints then operate at greater angles during normal driving and continue to change angle as the suspension moves through bump and droop.

A diff drop lowers the differential mounting position to reduce this change.

What Steep CV Angles Can Lead To

CV joints are designed to operate through an angular range, so an angled CV shaft is not automatically a problem.

However, excessive operating angles can increase stress and wear. Depending on the vehicle and severity of the geometry change, they can contribute to:

• Increased CV joint wear
• CV boot stress
• Binding near suspension travel limits
• Driveline vibration
• Reduced CV joint service life
• Greater risk of joint or boot problems under demanding conditions

A diff drop should therefore be considered as a geometry correction where required, not as a universal requirement for every suspension lift.

How Much Lift Needs a Diff Drop Kit?

There is no single lift height at which every 4WD requires a diff drop kit.

Diff drops are often discussed in connection with larger suspension lifts, including lifts around 50mm, but lift height alone does not determine whether correction is necessary.

The vehicle's IFS design, differential position, CV shaft length, available suspension travel and resulting CV angles all matter.

Two vehicles with the same nominal lift height can have different driveline geometry.

Rather than choosing a diff drop solely from the advertised lift height, assess the complete suspension setup and confirm whether the resulting CV angles require correction.

What Changes After Fitting a Diff Drop Kit?

Before and after fitting a diff drop kit, the main change is the position of the front differential relative to the wheel hubs. Lowering the differential reduces the CV shaft angle created by the suspension lift.

The diff drop itself does not lower the suspension or remove the vehicle's lift.

Diff Drop Kit Before and After

Before correction, a lifted IFS setup may have CV shafts operating at a steeper downward angle from the differential towards the wheels.

After a suitable front diff drop is installed, the differential sits lower relative to its previous mounting position. This can bring the CV operating angles closer to those intended for the driveline.

The exact amount of correction depends on the vehicle, lift and diff drop design.

It should not be assumed that lowering the differential as far as possible produces a better result. The aim is appropriate driveline geometry, not maximum drop.

Does a Diff Drop Reduce Ground Clearance?

Lowering the differential can reduce clearance around the repositioned differential or associated components.

How much practical clearance changes depends on the design of the vehicle and diff drop.

This creates a trade-off to consider on vehicles used off road: improving CV geometry can mean giving up some clearance around parts of the front driveline.

If underbody clearance is particularly important for the way the vehicle is used, consider both CV geometry and the position of the lowered components before choosing a setup.

What Are the Signs of Excessive CV Angles?

Excessive CV angles can contribute to driveline symptoms such as vibration, clicking, clunking or accelerated CV joint and boot wear. These symptoms do not prove that a diff drop is required, however.

Inspect the complete front driveline before deciding on a correction.

Signs worth investigating include:

• Clicking or clunking during steering or acceleration
• Driveline vibration
• CV boots stretched or distorted at normal ride height
• Split CV boots or grease leakage
• Evidence of binding near suspension travel limits
• Repeated CV joint or boot problems after a suspension lift

Other Causes to Rule Out

Similar symptoms can be caused by:

• Worn CV joints
• Damaged CV boots
• Wheel bearing wear
• Worn ball joints
• Driveshaft problems
• Damaged suspension components
• Wheel or tyre issues
• Other driveline faults

A qualified 4WD or driveline technician should inspect the vehicle if the source of a vibration, clicking or clunking noise is unclear.

A diff drop should correct an identified geometry issue rather than be used to mask a worn component.

What Else Should You Check After a Lift?

A suspension lift can affect more than front CV angles, so the complete suspension and driveline geometry should be checked after changing ride height.

Depending on the vehicle, this can include:

• Camber, caster and toe
• CV shaft operating angles
• Steering linkage angles
• Brake hose and ABS wire clearance
• Shock absorber travel
• Bump stop position
• Tailshaft angles
• Centre bearing position on two-piece tailshafts
• Other component clearances through suspension travel

A centre bearing spacer or alignment kit addresses a different part of the driveline from a diff drop. Likewise, wheel alignment components correct suspension geometry rather than front differential position.

Each correction should address the specific geometry changed by the lift.

Do Diff Drop Kits Need Engineering Approval?

Modification requirements vary between Australian states and territories, and the requirements can depend on the vehicle and the complete suspension modification rather than the diff drop kit alone.

A suspension lift and associated driveline changes may need to comply with applicable vehicle modification standards.

Before modifying the vehicle, check the current requirements with the relevant state or territory road authority. Where engineering approval is required or the modification is outside straightforward permitted limits, consult an appropriately qualified vehicle engineer.

How Is a Diff Drop Kit Fitted?

Installing a diff drop kit generally involves supporting the front differential, releasing the relevant differential mounts and installing the correction components before securing the differential in its revised position.

The exact procedure depends on the vehicle and mounting arrangement.

What the Job Involves

A typical installation may involve:

• Safely raising and supporting the vehicle
• Supporting the front differential
• Identifying the relevant differential mounts
• Removing or loosening the required mounting hardware
• Installing the diff drop components in the correct positions
• Repositioning and securing the differential
• Tightening fasteners to the specified torque
• Checking CV and surrounding component clearance
• Inspecting the driveline through the appropriate suspension movement

Do not modify, stack or substitute mounting components simply to create additional differential drop.

Safety Cautions

The front differential is heavy and must be adequately supported before its mounts are released.

Never work underneath a vehicle supported only by a jack. Use appropriate stands or workshop lifting equipment on a stable surface, along with suitable equipment to support the differential.

Follow the correct installation procedure and torque specifications for the application.

If you do not have the equipment or experience required to safely support and reposition the differential, have the kit installed by a qualified technician.

Choosing a Diff Drop Kit for Your Vehicle

The correct diff drop kit depends on the vehicle's front suspension and differential mounting arrangement, as well as the suspension lift and resulting CV geometry.

Consider the complete setup rather than lift height alone. Fitment should be confirmed for the specific vehicle before installation.

If you're unsure whether a diff drop is required or which application suits your suspension setup, Whiteline can assist with fitment before you order.
