Universal Pivot Bushes

Whiteline universal pivot bushes are polyurethane bushes matched by size rather than by vehicle, giving you a durable replacement for worn rubber bushes wherever a component pivots on a bolt. They?re ideal for suspension arms, links, spring eyes and mounts on cars, 4WDs, 4x4s, utes and pick-ups. They also suit trailers, classic restorations and custom builds where a vehicle-specific kit isn?t available.

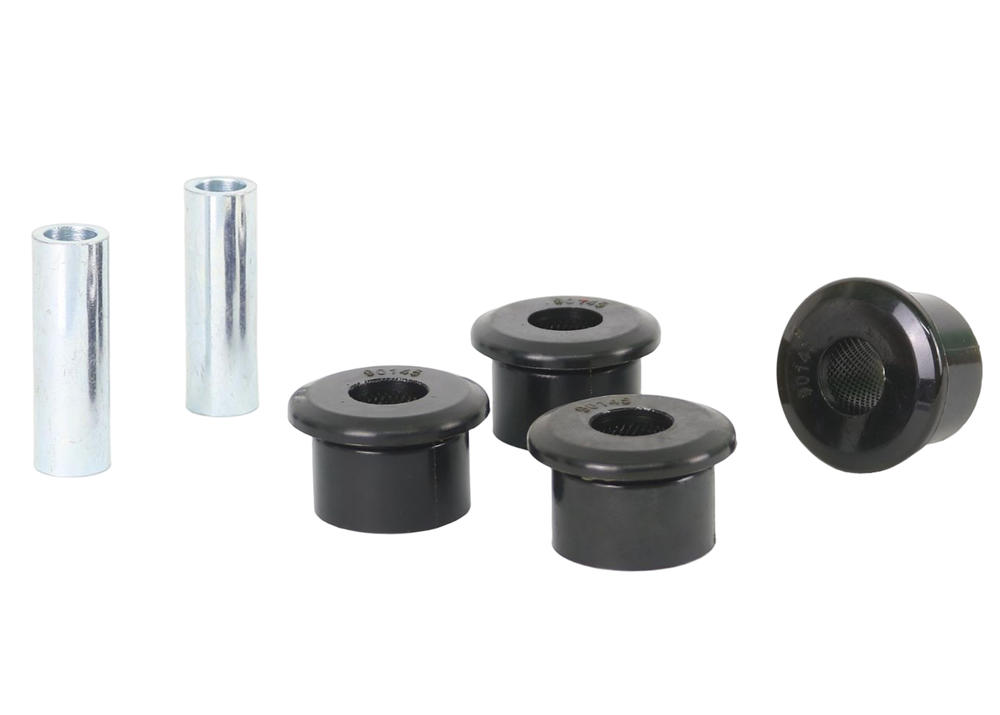

Each bush is supplied with a steel crush tube and specified by its key dimensions, so you can match it to the housing and bolt you?re working with. The result is firm, consistent location and long service life, even under heavy loads and harsh conditions.

What Pivot Bushes Do

Wherever a suspension or chassis component pivots, such as a control arm, trailing arm, panhard rod, shock absorber eye or leaf spring eye, a bush sits between the moving part and its mounting bolt. The bush allows the part to rotate through its working range while controlling unwanted movement and absorbing vibration.

When a bush wears, the component can shift under load. That leads to clunks, vague steering or tracking, uneven tyre wear and accelerated wear on surrounding parts. Replacing worn bushes restores precise location and a quieter, more controlled ride.

How Universal Polyurethane Pivot Bushes Are Designed

Universal pivot bushes typically use a two-piece flanged design. Each half presses into the housing from either side, and the flanges sit against the housing faces to control sideways movement. A steel crush tube passes through the centre and sets the correct clamping length, so the bolt can be tightened fully without crushing the polyurethane.

Unlike rubber bushes, which are usually bonded to their sleeves and twist internally, polyurethane bushes pivot on the crush tube. Grease grooves moulded into the bore hold lubricant, so the bush rotates smoothly and quietly throughout its life.

Types of Polyurethane Bushes

Polyurethane bushes come in several common styles to suit different mounting points:

• Flanged two-piece pivot bushes, with a crush tube, for arms, links and eyes
• Straight or ?cotton reel? bushes for parallel eye mounts
• Stud-mount and stepped bushes for shock absorbers and mounts with a locating stud
• Spring eye and shackle bushes for leaf spring suspension
• Mount and isolator bushes for engines, gearboxes, bodies and cabs

Universal pivot bushes focus on the flanged design, which suits the widest range of pivot points.

Polyurethane vs Rubber Bushes

Rubber is used by most vehicle manufacturers because it?s quiet, inexpensive and compliant. However, it deflects more under load and breaks down over time with heat, oil, water and ozone. High kilometres, towing and heavy loads accelerate that wear.

Whiteline polyurethane bushes offer outstanding abrasion resistance, high load-bearing capability, flexibility and increased tensile strength. They also resist oil, grease, ozone and weathering. In practice, that means:

• Less deflection, so components stay more precisely located under cornering, braking and load
• Longer service life in harsh, wet, dusty or off-road conditions
• Consistent performance that doesn?t degrade as quickly as perished rubber

Rubber still has its place, and some pivot points are designed around its compliance. The right choice depends on the application and how the vehicle is used.

Common Misconceptions About Poly Bushes

?Polyurethane bushes always give a harsh ride.? Hardness varies between bushes. A bush of the correct hardness for its application gives firmer control without excessive harshness. Problems usually come from bushes that are too hard for the job.

?Poly bushes always squeak.? Squeaks come from a lack of suitable lubrication. Correctly greased bushes with grease grooves run quietly.

?All polyurethane is the same.? Polyurethane is a family of materials. Its formulation, hardness, design and manufacturing quality all affect how a bush performs and how long it lasts.

Hardness and Formulation

Polyurethane hardness is measured on the Shore A durometer scale. A softer bush absorbs more vibration and allows more compliance, while a harder bush gives more precise location. Whiteline formulates its polyurethane to balance strength, flexibility and resistance to wear. The goal is consistent, predictable control without the deflection of rubber.

When choosing a universal bush, match the hardness to the job. Pivot points that need precise location suit firmer bushes, while mounts that mainly isolate vibration suit a more compliant bush.

How to Measure and Choose a Universal Bush

Universal pivot bushes are listed by their dimensions. Measure carefully before ordering:

• Bush outside diameter (OD): the inside diameter of the housing or eye
• Eye or housing length (L): the width of the housing the bush fits into
• Crush tube inside diameter (ID): must suit the bolt diameter
• Crush tube length: must suit the clamping width between the mounting brackets

Measure the housing itself rather than a worn bush, as worn bushes give misleading figures. Match your measurements to the listing to choose the right bush.

Installation and Lubrication

• Remove the old bush and any outer sleeve completely, and clean the housing.
• Apply a grease suitable for polyurethane to the bore of the bush, the crush tube and the flange faces.
• Press each half into the housing by hand or with a vice, then fit the crush tube.
• Tighten the mounting bolt to the manufacturer?s specification, with the suspension at normal ride height where applicable.

Don?t use petroleum-based oils or solvents on polyurethane, as they can damage the bush. Correct lubrication at installation is the key to quiet, long-lasting performance.

Where Universal Pivot Bushes Are Used

Universal pivot bushes suit a wide range of applications:

• Control arms, trailing arms and radius arms
• Panhard rods, links and tramp rods
• Shock absorber eyes
• Leaf spring eyes and shackles
• Trailer and caravan suspension
• Classic, restored and custom vehicles
• Machinery, equipment and fabricated projects with bolted pivot points

Who Universal Pivot Bushes Suit

Universal pivot bushes suit owners restoring classic or rare vehicles where original bushes are unavailable, and 4WD, 4x4, ute and pick-up owners replacing worn bushes after towing and load carrying. They?re also used by trailer and caravan owners upgrading from rubber or nylon, by custom builders and fabricators who need a durable bush in standard sizes, and by workshops keeping common sizes on hand.

Shop Universal Pivot Bushes

Pivot bushes are part of our universal parts range, and polyurethane rods suit fully custom jobs.

Measure your housing and bolt, choose the matching bush, then order online for delivery or have it fitted by an authorised Whiteline reseller. Every Whiteline bush is backed by our warranty and fitment guarantee, with 60 days to return anything that isn?t right for your project. Restore precise, durable pivot control with Whiteline.
