What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

KLB111-15

Rear Lowering Block - Kit 1.5" to Suit Toyota HiAce, LiteAce and HiLux

38mm (1.5") - suits models with Japanese differential with 16mm centre bolt

Item Price

$185.80

SKU	KLB111-15
Warranty	3 years warranty or up to 60,000km
Installation Time	1 Hour
Fitting Position	Rear Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:

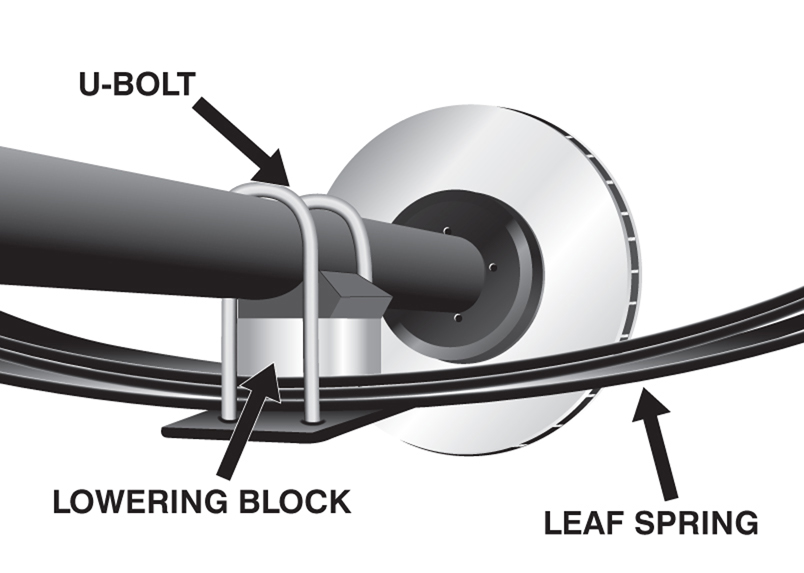

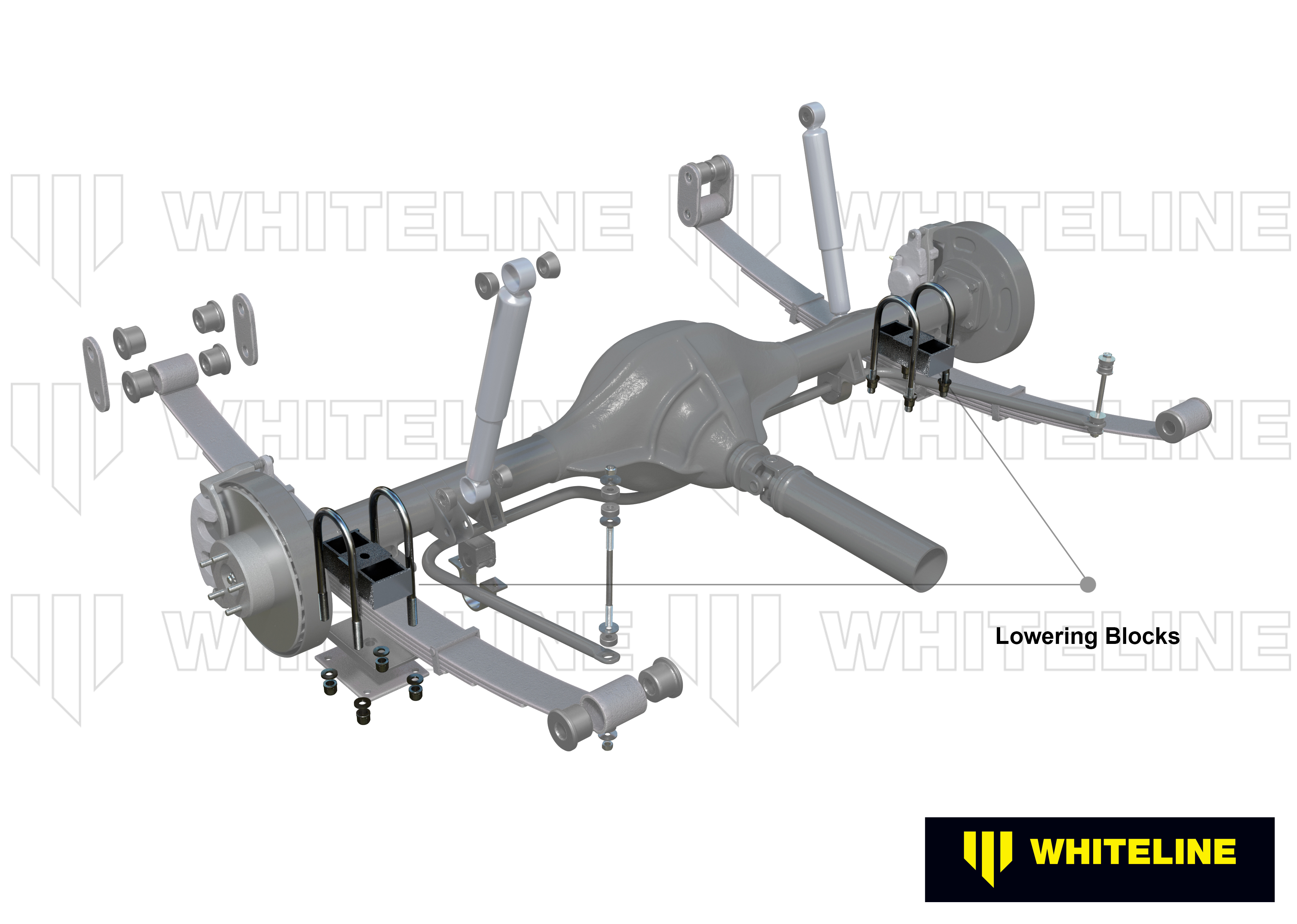

Whiteline aluminium lowering blocks are the economical and quick way to lower many leaf sprung vehicles. Lowering blocks allow the vehicle's height to be modified, transforming the handling and looks of your vehicle.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	3.57kg	40cm	10cm	20cm
in/lbs	7.87lbs	15.75"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	3.57kg	7.87lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	KLB111-15
Components Per	2 Blocks, 4 U-Bolts, 4 Washers, 4 Nuts
Kits Required	1
Sub brand	Performance

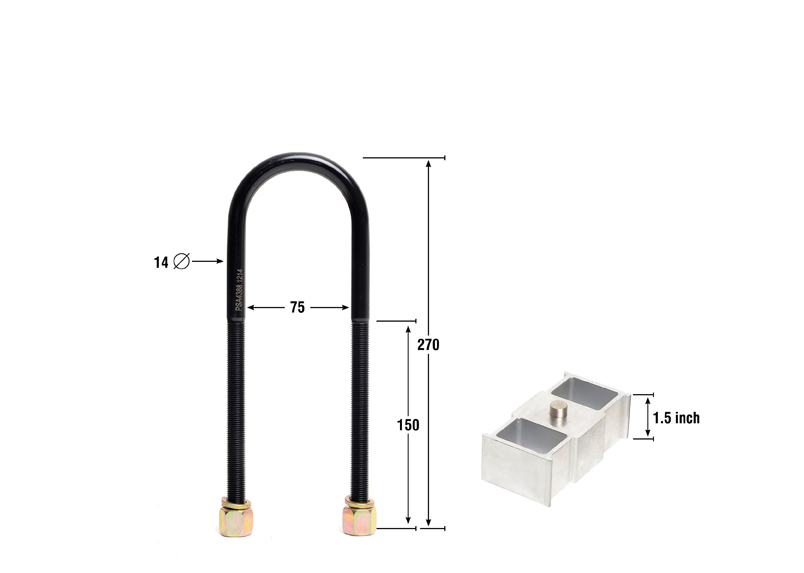

Product Note	Lowering Block - Kit 1.5" Block = 38mm, Pin = 16mm, Hole = 16mm, U Bolt = M14x75mm
EAN	9319924404018

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
