W22117

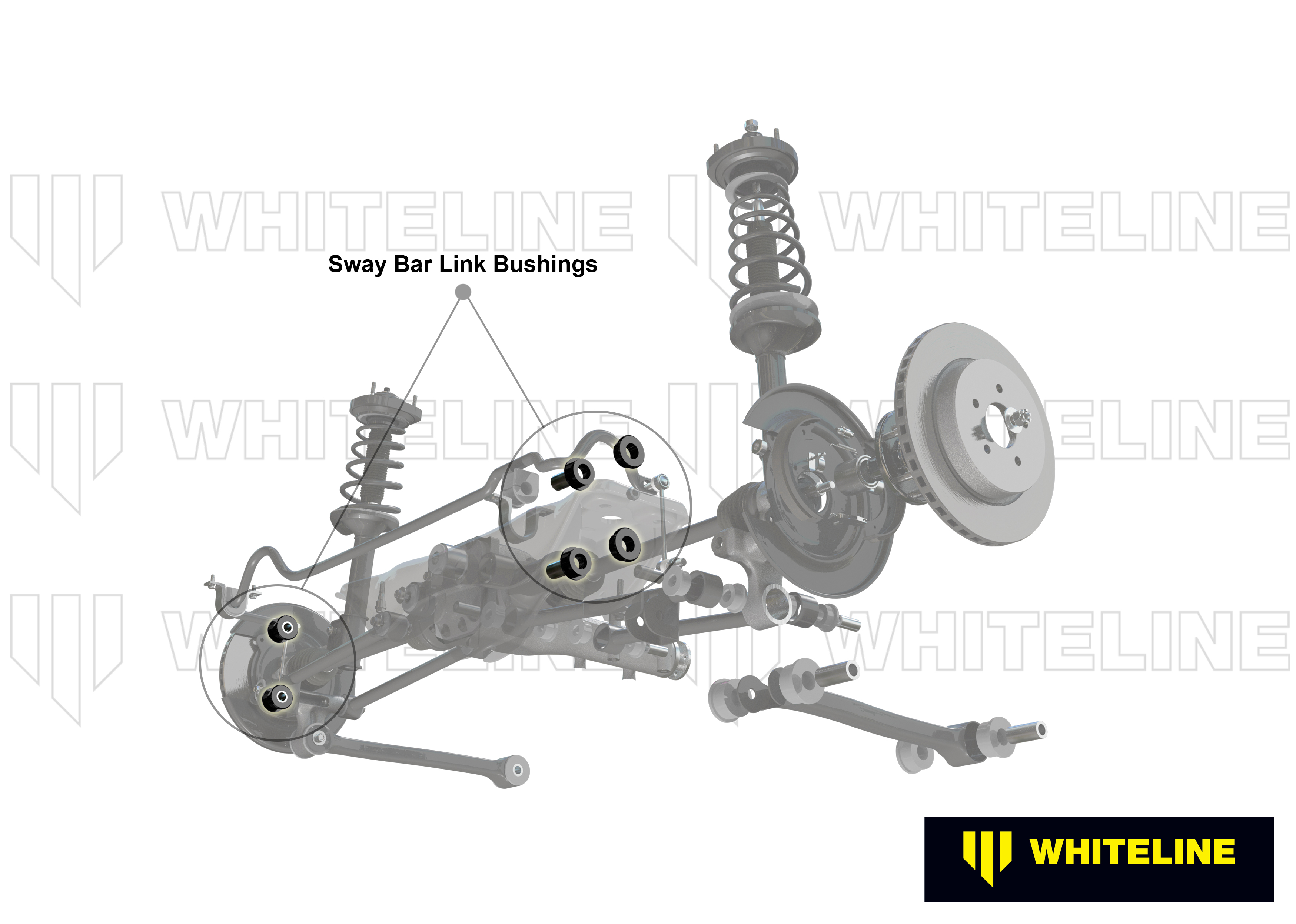

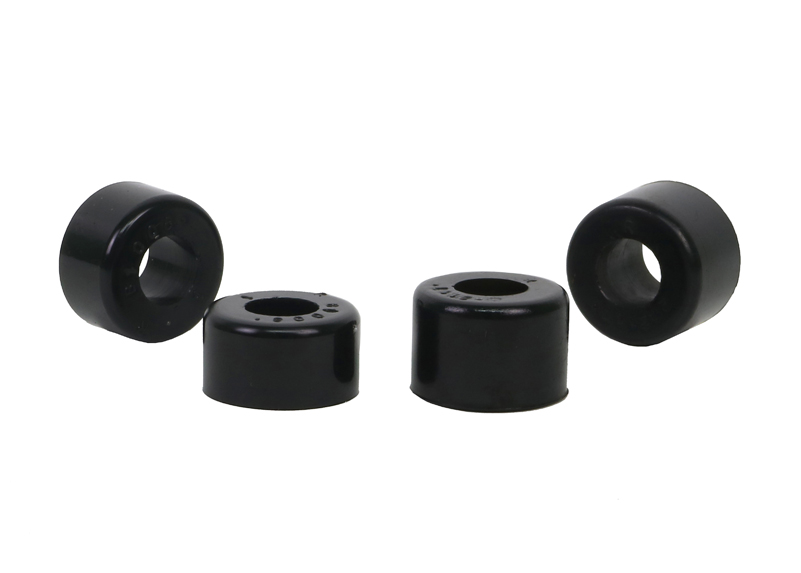

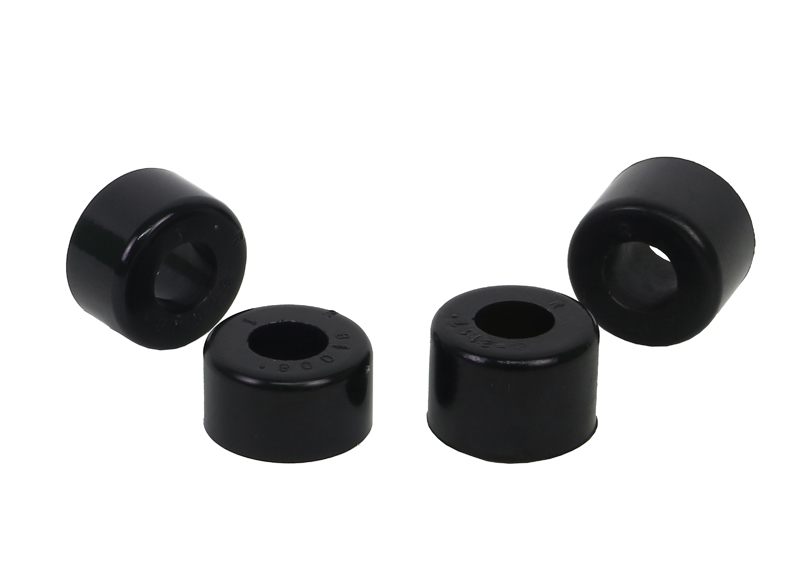

Rear Sway Bar To Hub - Bushing Kit to Suit Holden Astra LD and Nissan Pulsar N13

Rear Sway Bar To Hub - Bushing Kit to Suit Holden Astra LD and Nissan Pulsar N13

Item Price

$53.06

SKU	W22117
Warranty	lifetime warranty
Installation Time	1 Hour
Fitting Position	Rear Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

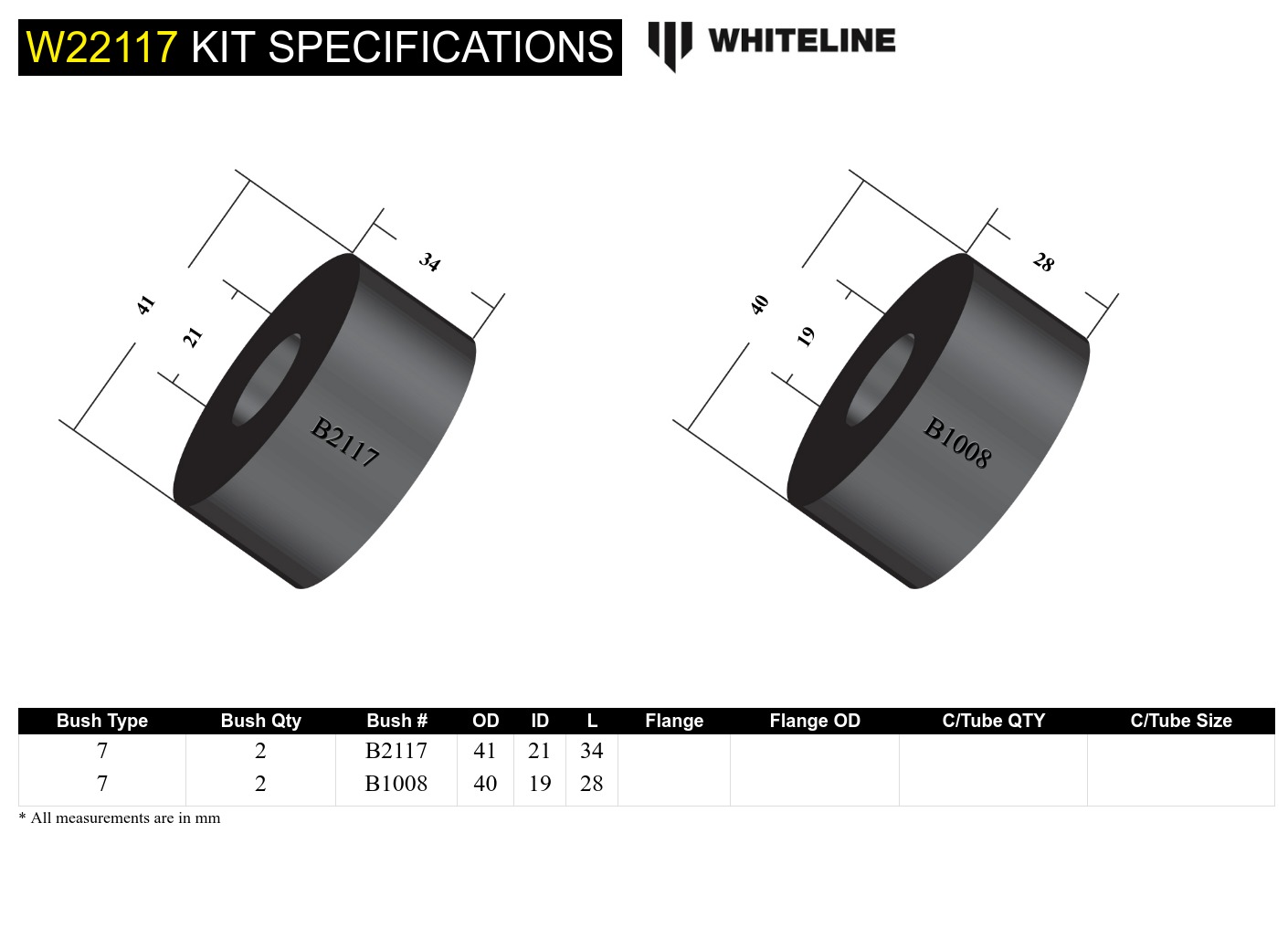

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
7	2	40	19	28.0					Click Here
7	2	41	21	34.0					Click Here

Bush Type	7	7
QTY	2	2
OD (A)	40	41
ID (B)	19	21
Length (C)	28.0	34.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.136kg	7cm	20cm	14cm
in/lbs	0.3lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.136kg	0.3lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	W22117
Components Per	4 Bushings
Kits Required	1
Sub brand	Replacement
Product Note	Engineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 4 Bushings
EAN	9319924350520

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles
