What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

KDT945

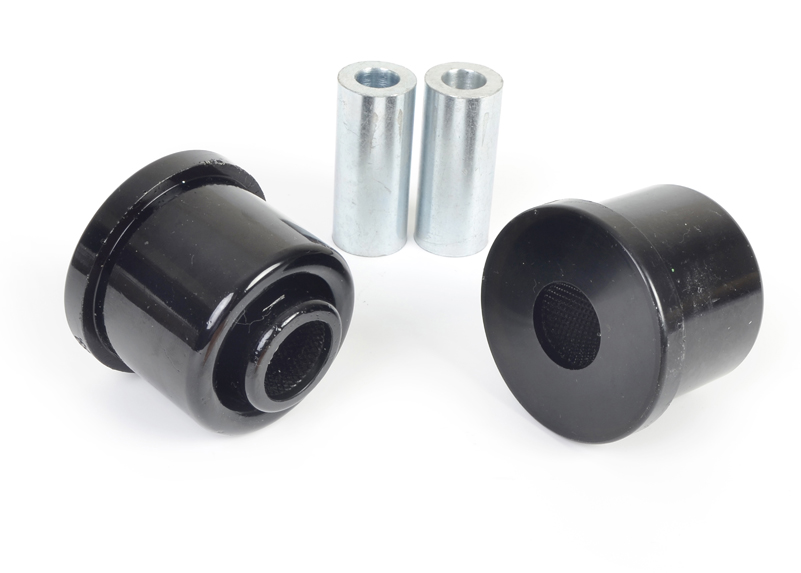

Rear Beam Axle - Bushing Kit to Suit Abarth, Fiat and Ford

Rear Beam Axle - Bushing Kit to Suit Abarth, Fiat and Ford

Item Price

€51.08

SKU	KDT945
Warranty	3 years warranty or up to 60,000km
Installation Time	2 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

Pre-Order

Available for Preorder.

Description

Benefit Note:

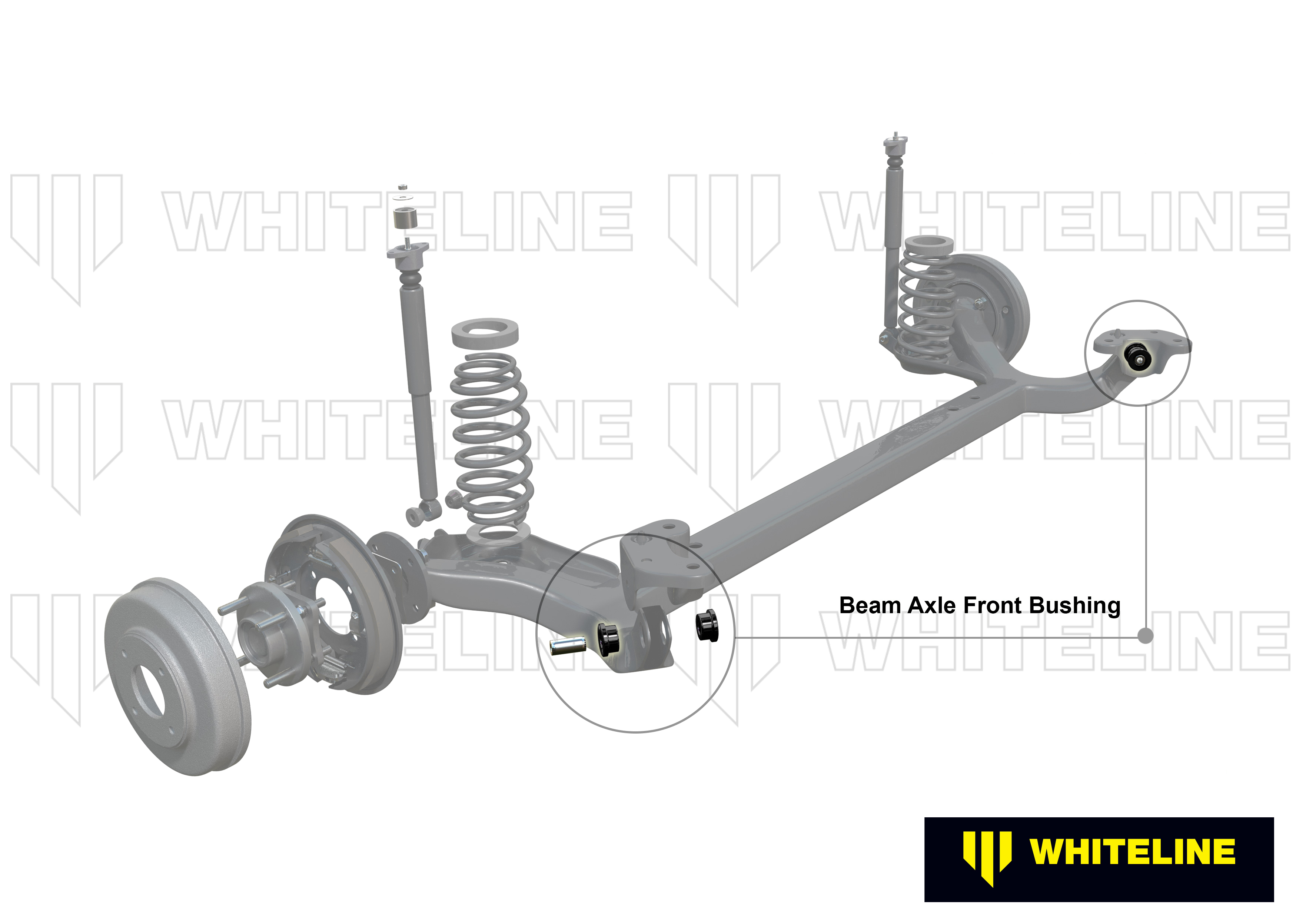

A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

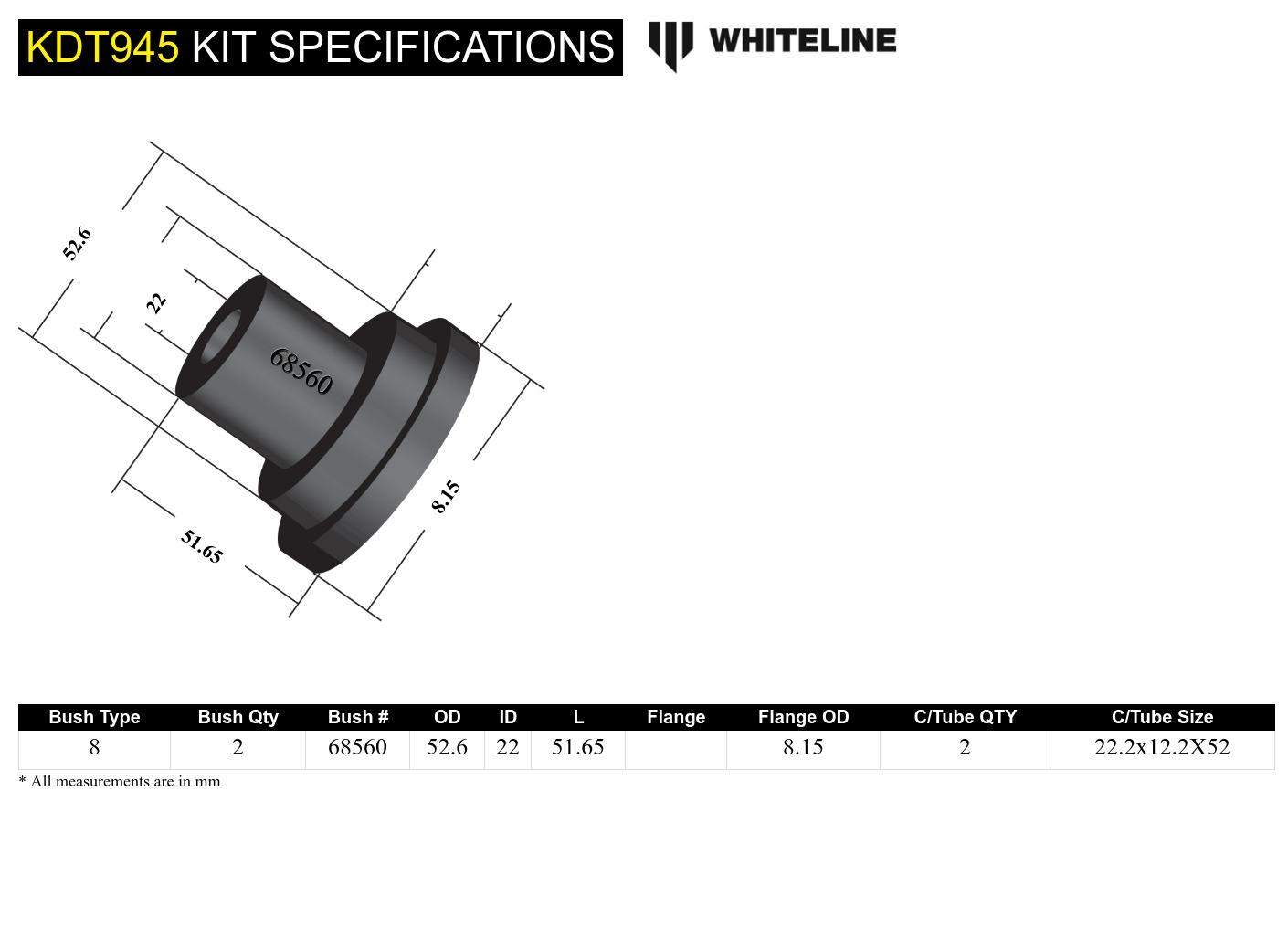

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
8 - Stepped OD Shackle Bushing	2 mm	52.6 mm	22 mm	51.65 mm		8.15 mm	2	22.2x12.2x52 mm	Click Here

Bush Type	8 - Stepped OD Shackle Bushing
Bush Quantity	2 mm
OD (A)	52.6 mm
ID (B)	22 mm
Length (C)	51.65 mm
Flange Thickness (D)
Flange OD (E)	8.15 mm
C/Tube Quantity	2
C/Tube ODxIDxL	22.2x12.2x52 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 8 - Stepped OD Shackle Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
8	2	52.6	22	51.7		8.15	2	22.2x12.2x52	Click Here

Bush Type	8
QTY	2
OD (A)	52.6
ID (B)	22
Length (C)	51.7
FL (D)
FLOD (E)	8.15
C/Tube Qty	2
C/Tube Size	22.2x12.2x52
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.49kg	10cm	26cm	16cm
in/lbs	1.08lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.49kg	1.08lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	KDT945

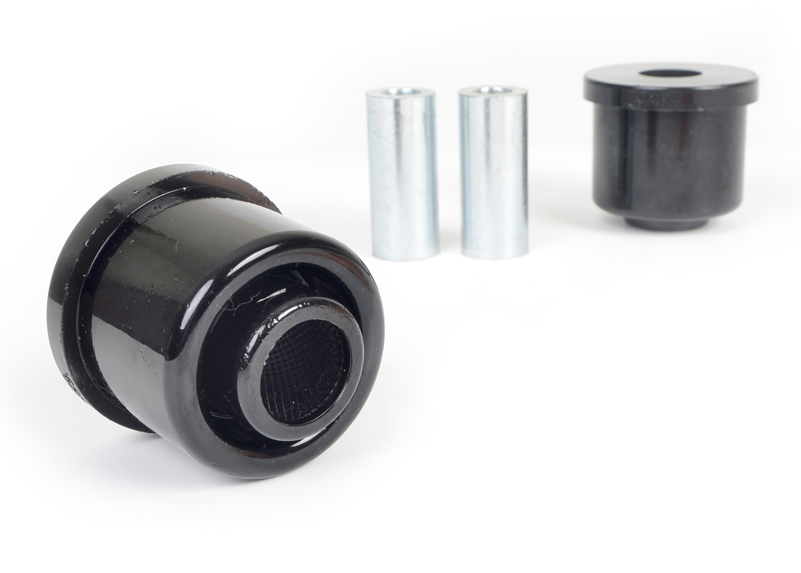

Components Per	2 Bushings, 2 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN	9319924406104

Installation & Fitment Guide

More Information
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
