What makes Whiteline different from OEM suspension components?

Whiteline suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Whiteline uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Whiteline components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Whiteline Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Whiteline products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Whiteline products come with a warranty?

Yes. Please refer to our warranty policy for details.

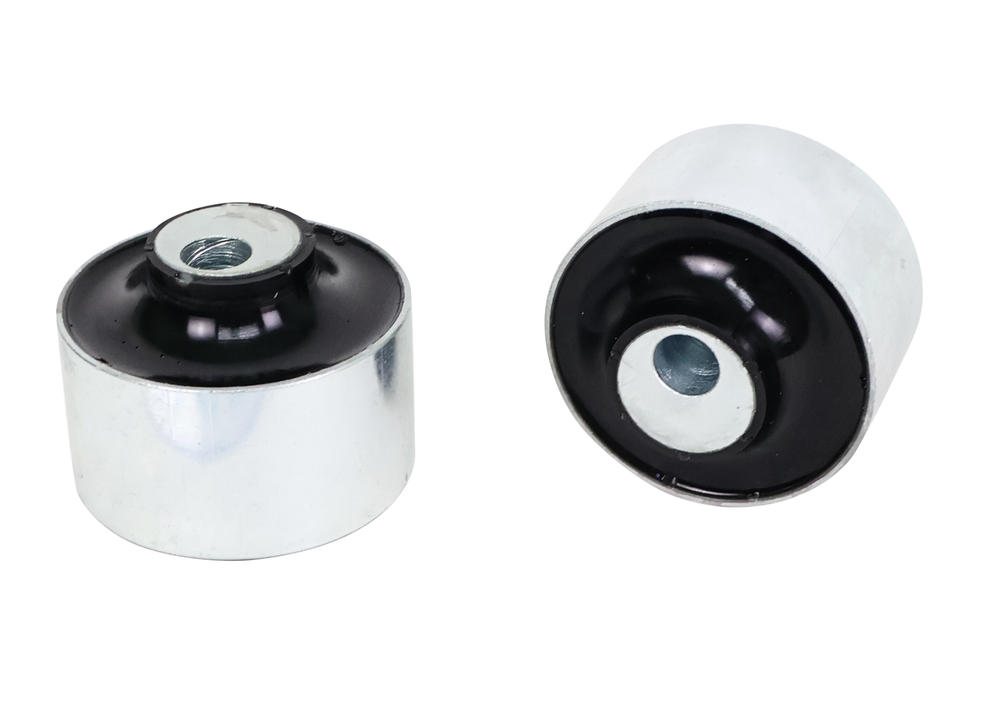

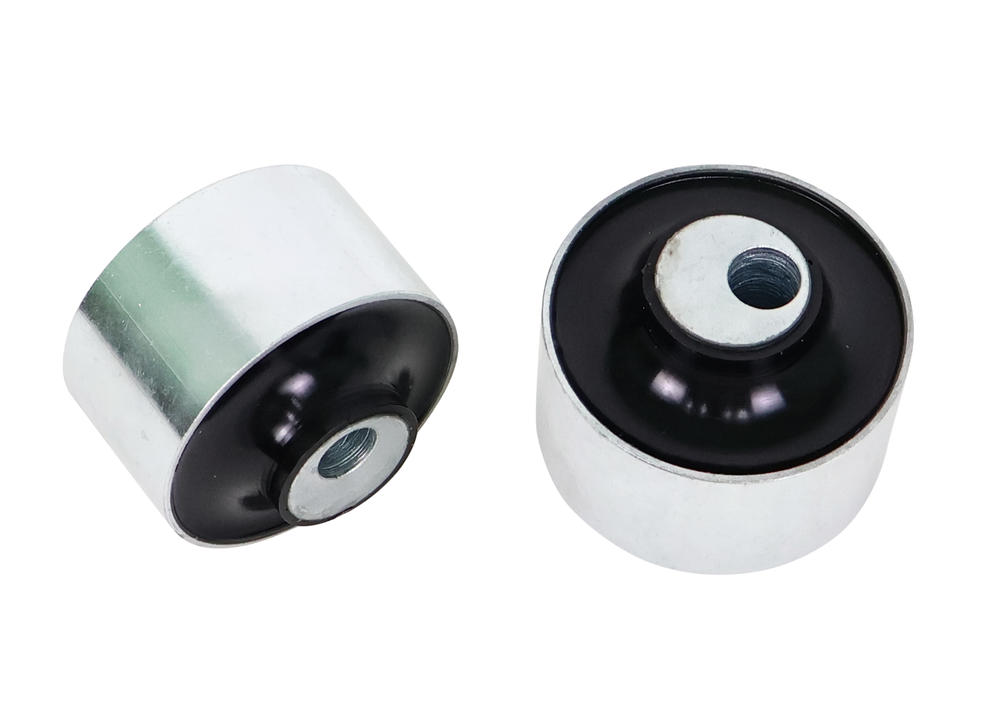

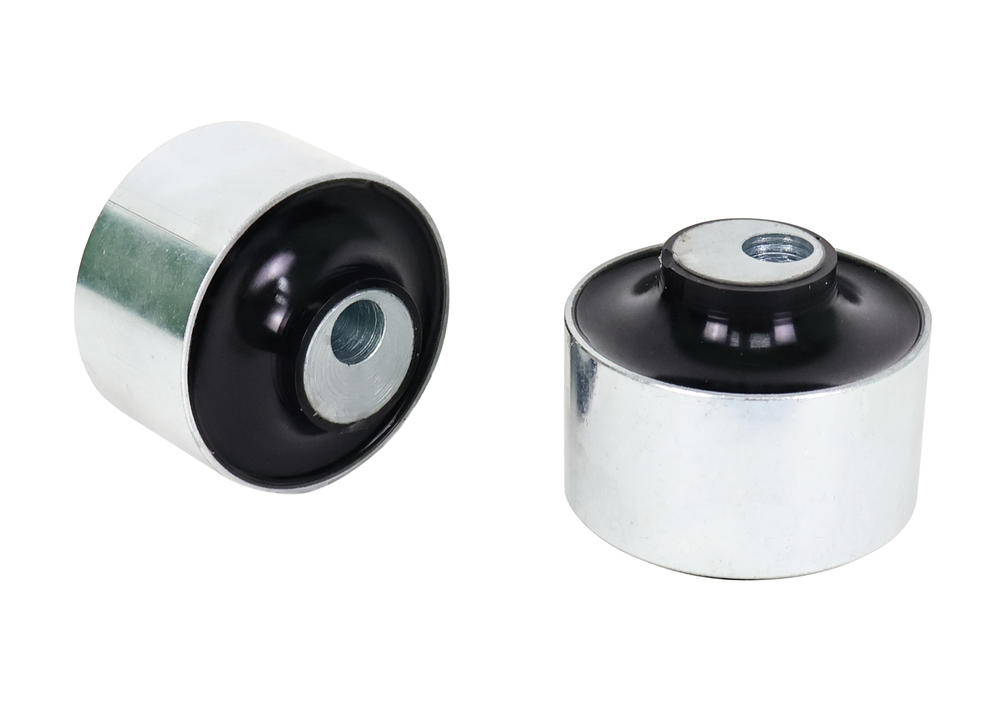

Front Lower Inner Rear Bushing Double Offset Caster Kit to Suit Toyota Camry XV70 and Rav 4 XA50

Description

Benefit Note:Whiteline camber and caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	2 mm	72.1 mm	22 mm	40 mm			2	25x14.3x67 mm	Click Here
3 - Half Tapered Cotton Reel Bush	4 mm	60 mm	24.5 mm	13.5 mm	2 mm		2	25x14.3x67 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing	3 - Half Tapered Cotton Reel Bush
Bush Quantity	2 mm	4 mm
OD (A)	72.1 mm	60 mm
ID (B)	22 mm	24.5 mm
Length (C)	40 mm	13.5 mm
Flange Thickness (D)		2 mm
Flange OD (E)
C/Tube Quantity	2	2
C/Tube ODxIDxL	25x14.3x67 mm	25x14.3x67 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Type 3 - Half Tapered Cotton Reel Bush

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Offset	No
Caster	Offset	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	2	72.1	22	40.0			2	25x14.3x67	Click Here
3	4	60	24.5	13.5	2		2	25x14.3x67	Click Here

Bush Type	16	3
QTY	2	4
OD (A)	72.1	60
ID (B)	22	24.5
Length (C)	40.0	13.5
FL (D)		2
FLOD (E)
C/Tube Qty	2	2
C/Tube Size	25x14.3x67	25x14.3x67
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.1kg	10cm	16cm	26cm
in/lbs	2.43lbs	3.94"	6.3"	10.24"

Units	cm/kg	in/lbs
Weight	1.1kg	2.43lbs
Length	10cm	3.94"
Width	16cm	6.3"
Height	26cm	10.24"

Misc. Product Information

More Information
SKU	KCA567
Components Per	2 Shell Bushings
Kits Required	1
Sub brand	Performance
Product Note	Delivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Spacers, 2 Tubes
EAN	9319924478965

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
