W52432

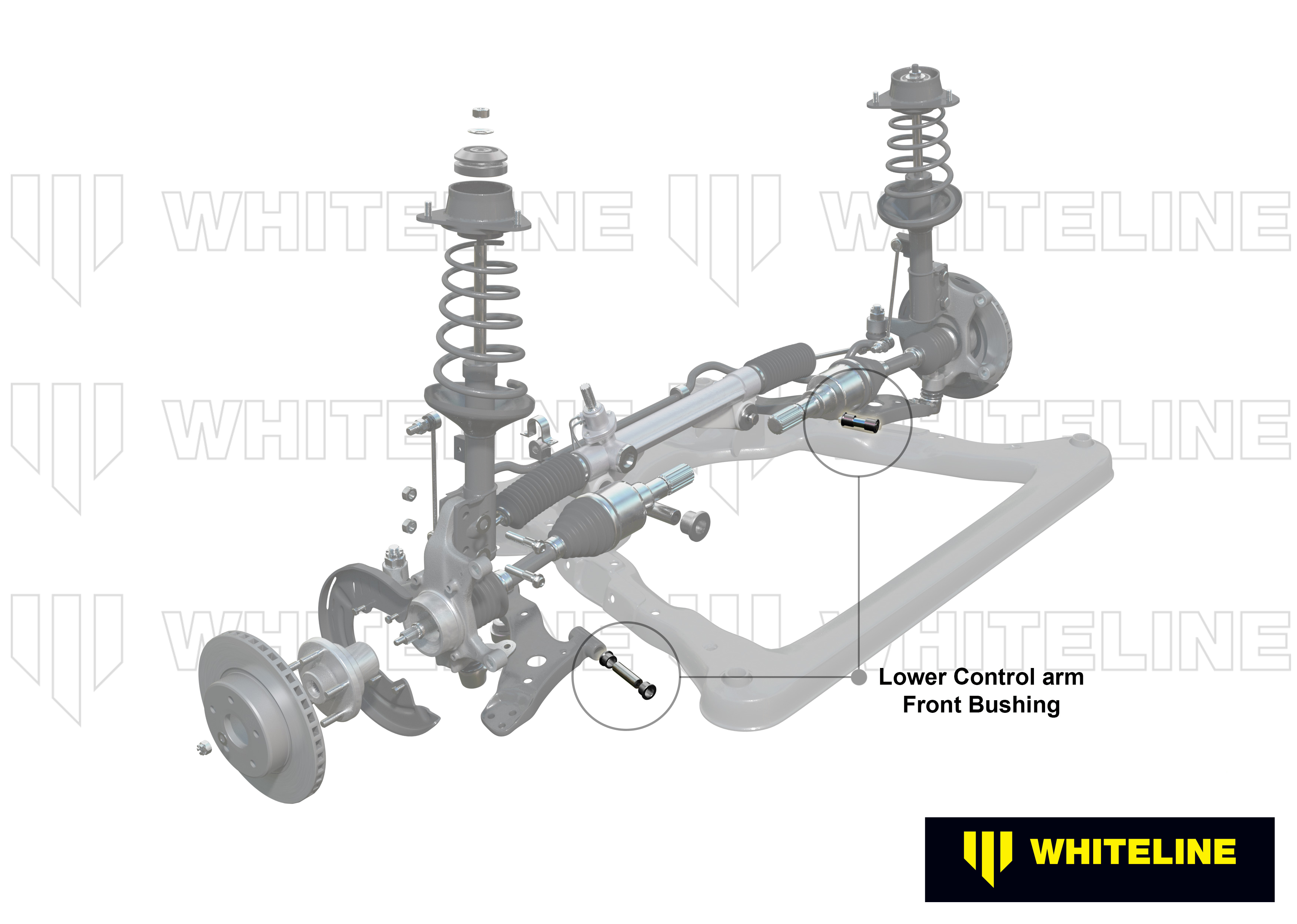

Front Lower Control Arm - Inner Front Bushing Kit to Suit Ford Laser KN, KQ and Mazda 323 BJ

Front Lower Control Arm - Inner Front Bushing Kit to Suit Ford Laser KN, KQ and Mazda 323 BJ

Item Price

$98.00

Fully installed for

$666.00

Your purchased parts will be delivered to your nearest Whiteline outlet and installation will be organised. All you have to do is bring your car, we will take care of the rest!

Fitting $450.00

Wheel Alignment $98.00

Consumables $20.00

SKU	W52432
Warranty	lifetime warranty
Installation Time	2.5 Hours
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Stock due on 21/8/2026.

Description

Benefit Note:
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

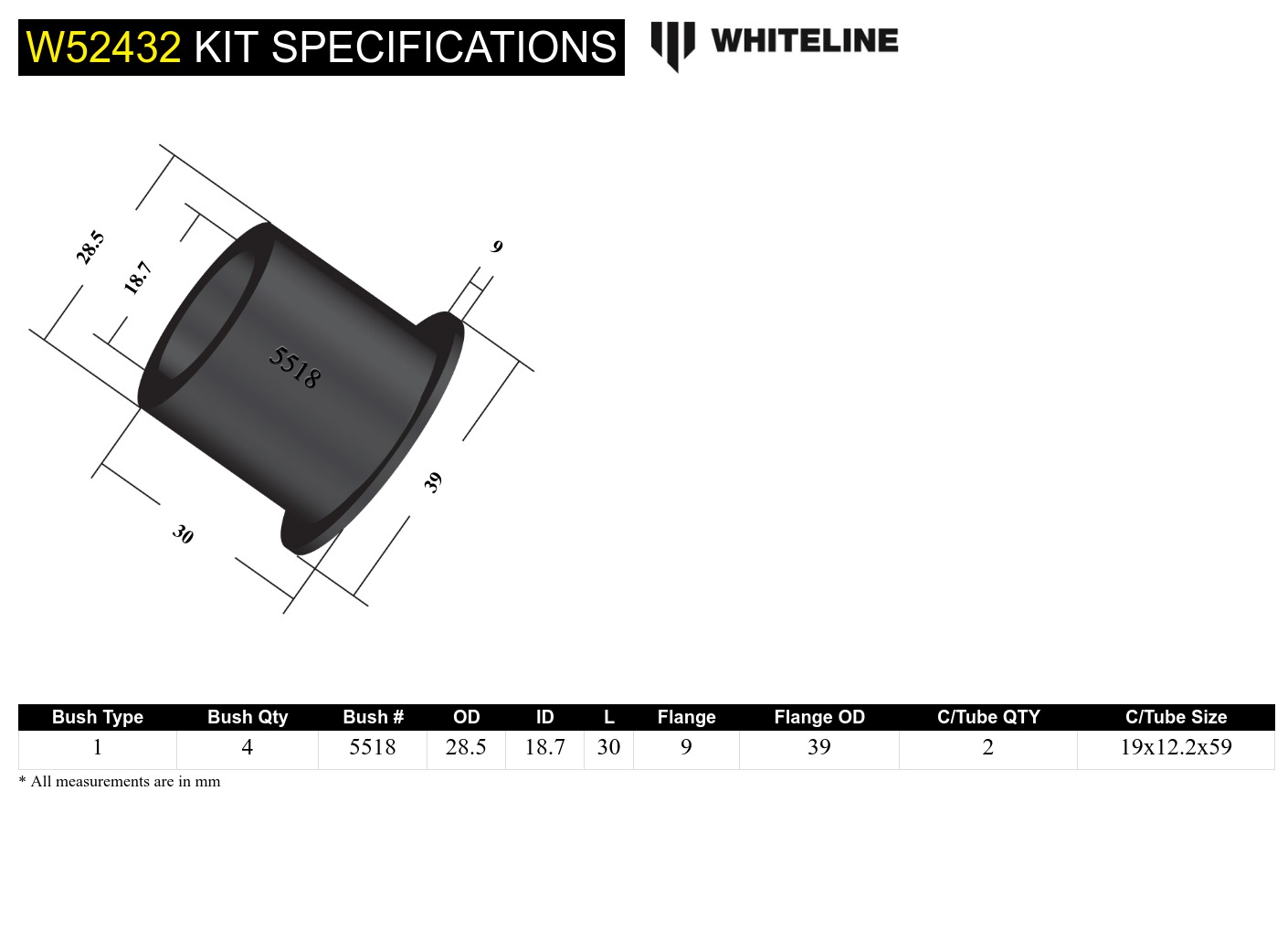

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	28.5 mm	18.7 mm	30 mm	9 mm	39 mm	2	19x12.2x59 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	28.5 mm
ID (B)	18.7 mm
Length (C)	30 mm
Flange Thickness (D)	9 mm
Flange OD (E)	39 mm
C/Tube Quantity	2
C/Tube ODxIDxL	19x12.2x59 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	28.5	18.7	30.0	9	39	2	19x12.2x59	Click Here

Bush Type	1
QTY	4
OD (A)	28.5
ID (B)	18.7
Length (C)	30.0
FL (D)	9
FLOD (E)	39
C/Tube Qty	2
C/Tube Size	19x12.2x59
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.244kg	7cm	20cm	14cm
in/lbs	0.54lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.244kg	0.54lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	W52432

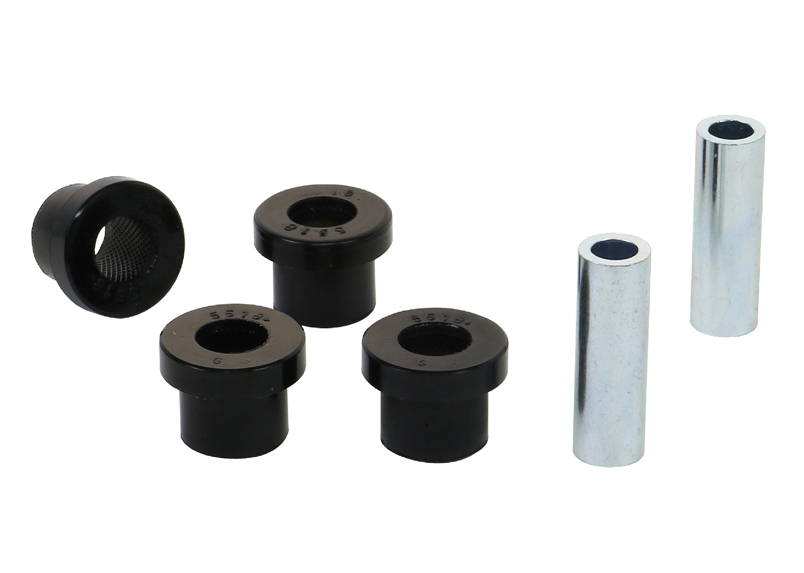

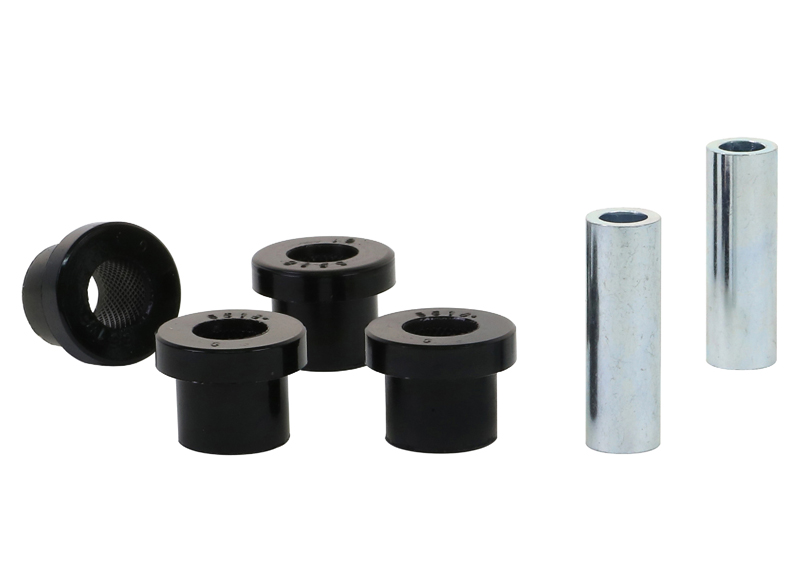

Components Per	4 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Greatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9319924353071

Installation & Fitment Guide

More Information
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended. Use our Click & Fit service.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
Click & Fit Price	Fitting: $450.00 Wheel Alignment: $98.00 Consumables: $20.00

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
