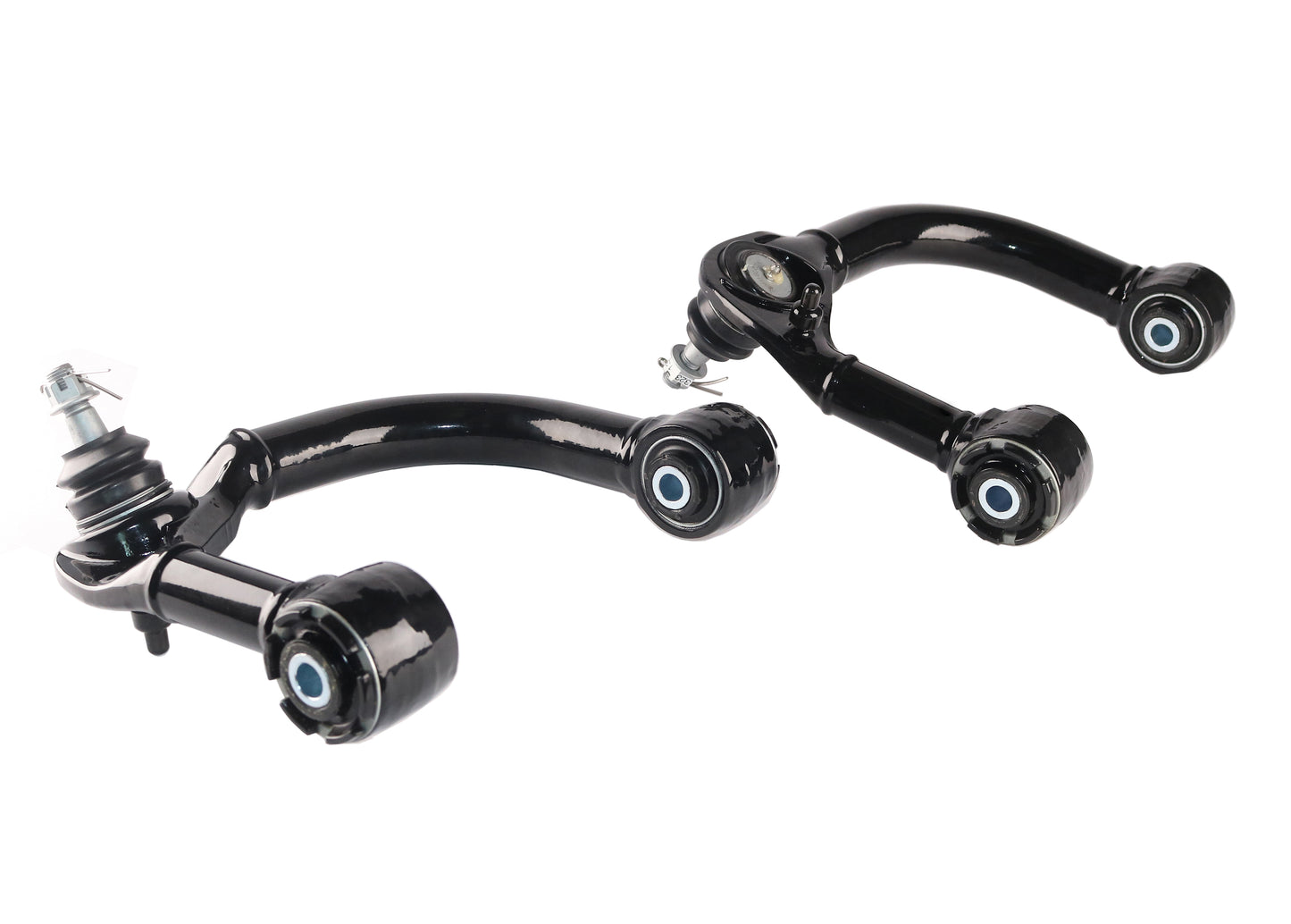

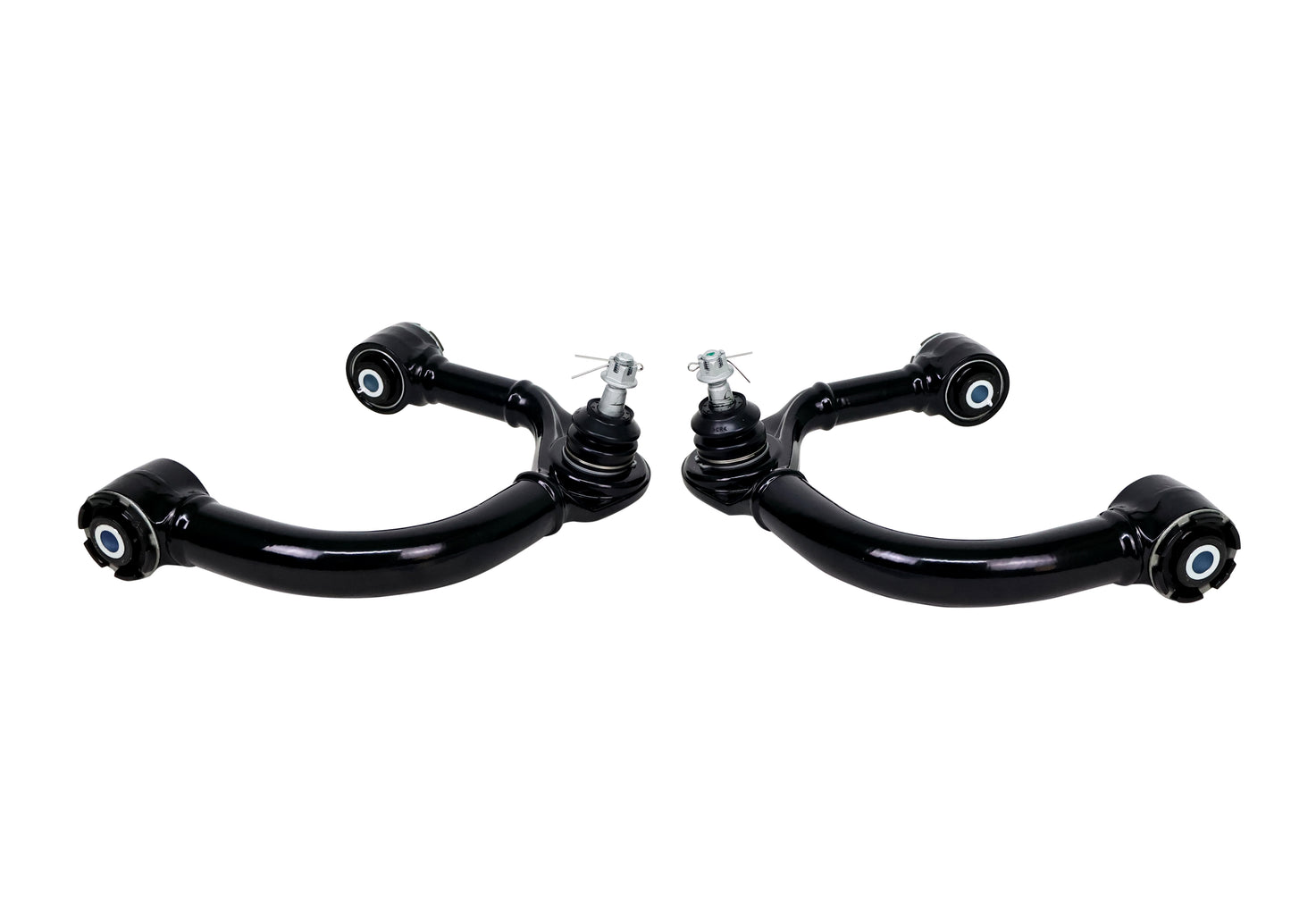

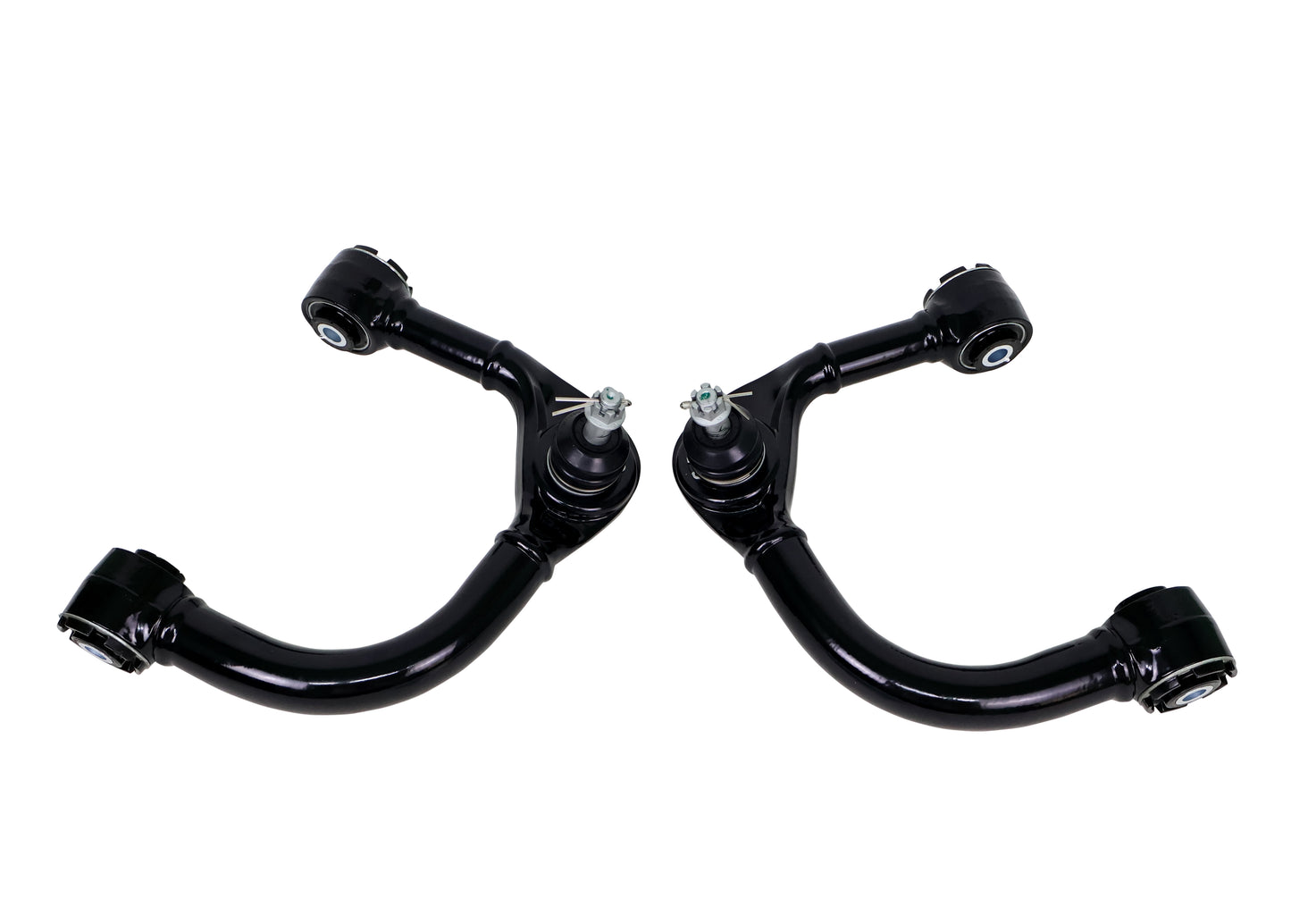

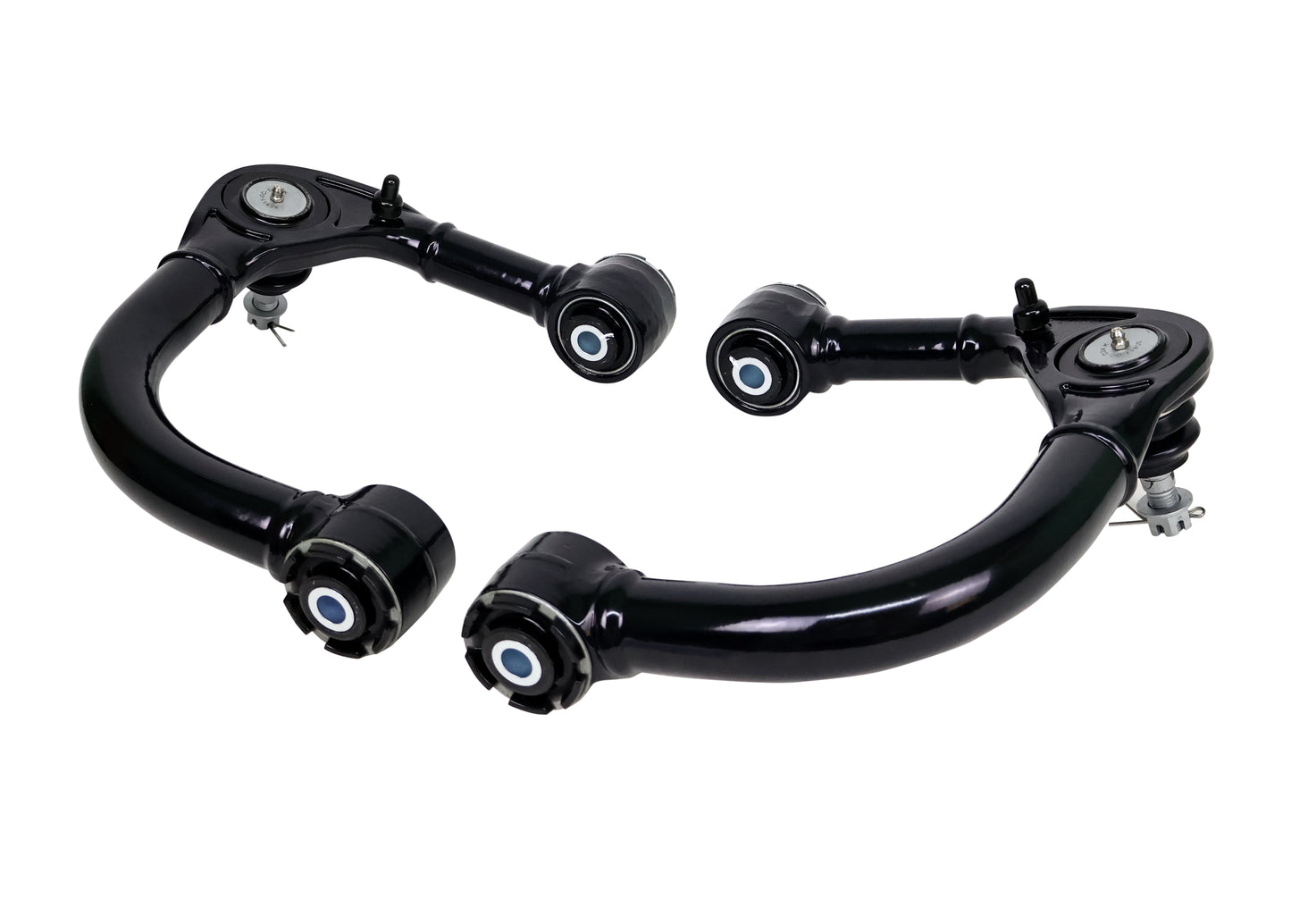

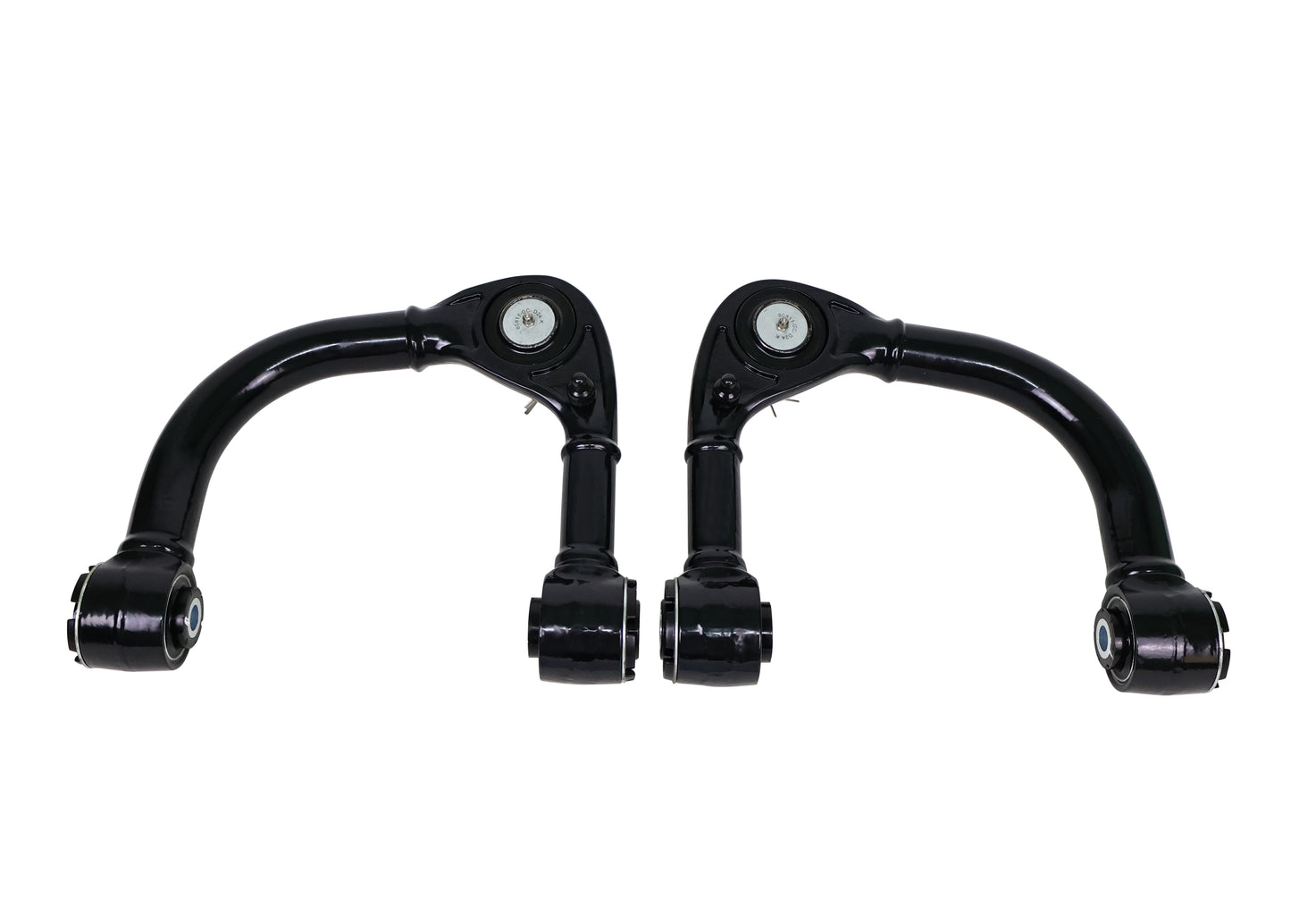

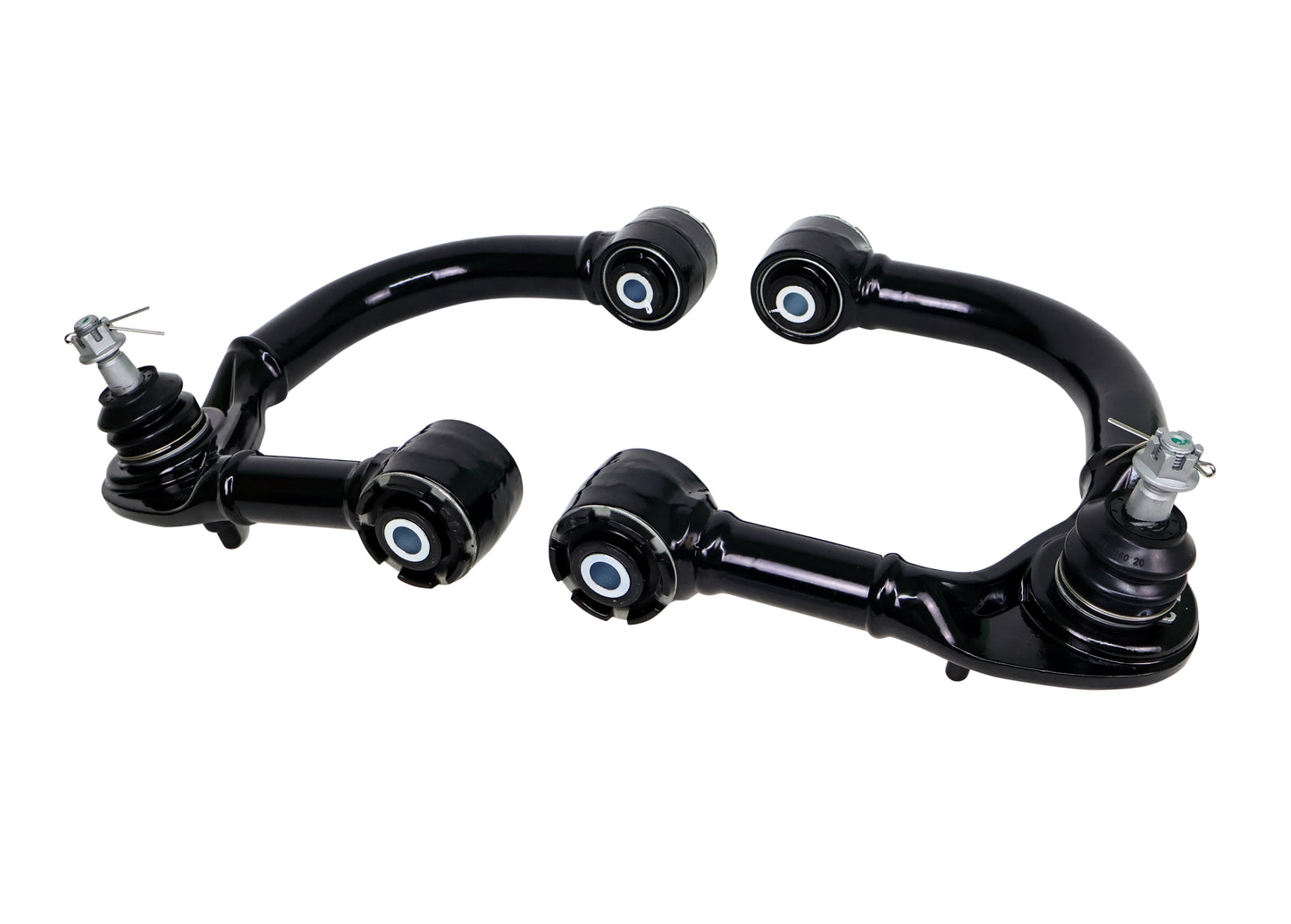

Control arm - front upper

Control arm - front upper

A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.

SKU / KTA247

POSITION / Front Upper

Fits 6 Lug 2WD & 4WD Trucks Only. Adds 2.5 to 3.5 degrees of additional positive caster and up to 1.5 degrees of additional negative camber at 2" of lift.

Regular price $499.00 USD
Regular price Sale price $499.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Installation Time

    2.0 (hours)
  • Installation Difficulty

    DIY - Do it yourself
  • Warranty

    Backed by a 3 year/ 60,000 miles warranty
