Track Bar

Change a vehicle's ride height and the axle does not stay where it was. It shifts sideways, and most owners never realize why the car tracks oddly afterward.

A track bar is what holds the axle centered, and an adjustable one is what puts it back after a lift or a drop.

What Is a Track Bar

A track bar is a single rod running laterally between the chassis and a live axle, and its only job is stopping the axle moving side to side.

One end mounts to the chassis or body, the other to the axle housing. Springs carry the weight, trailing arms or leaf springs control fore and aft position, and the track bar handles everything sideways.

Without one the axle would wander laterally under cornering load, and the vehicle would feel like the back end was stepping out of line with the front.

The track bar definition most people need is simpler than the engineering. It is the part that keeps the axle under the middle of the car.

What Is a Panhard Bar

A panhard bar is the same component under a different name.

Panhard bar and panhard rod are the original terms, named after the manufacturer that first used the layout. Track bar is the term more common in the US, particularly on trucks and off road platforms.

An adjustable panhard bar and an adjustable track bar are the same product. Catalogs use one or the other depending on the market, which is worth knowing when searching for a part.

Anything described as a lateral locating rod on a solid axle is doing this job regardless of what the listing calls it.

What Does a Track Bar Do

Three things, and the third is the one that causes trouble.

It locates the axle laterally, keeping it centered under the vehicle through cornering, braking and acceleration.

It resists the side load generated in a corner. Every time the vehicle turns, the cornering force tries to push the axle sideways relative to the body, and the track bar takes that load in tension or compression.

And it swings through an arc as the suspension moves. Because the bar is fixed at one end and pivots, the axle traces a slight sideways path as it moves up and down. That arc is designed in and barely noticeable at factory ride height.

Why Lifting or Lowering Moves the Track Bar Off Center

This is where the arc stops being harmless.

The bar sits at a designed angle at standard ride height, usually close to level, which keeps the arc symmetrical through normal travel.

Lift the vehicle and the chassis end rises while the axle end stays with the axle. The bar now sits at a steeper angle, and a bar at an angle is effectively shorter across the vehicle than one sitting level.

The axle gets pulled toward the chassis mounting side. On a lifted solid axle vehicle that typically means the axle sits off center by a visible amount, with one wheel closer to the arch than the other.

Lowering does the same in reverse, pushing the axle the other way.

The consequences of that are real enough to feel. The wheels sit visibly off center in the arches, the vehicle tracks slightly crabbed, the steering wheel ends up off center on a straight road, and on a solid front axle an off center axle contributes to the instability that makes a lifted vehicle feel nervous at speed.

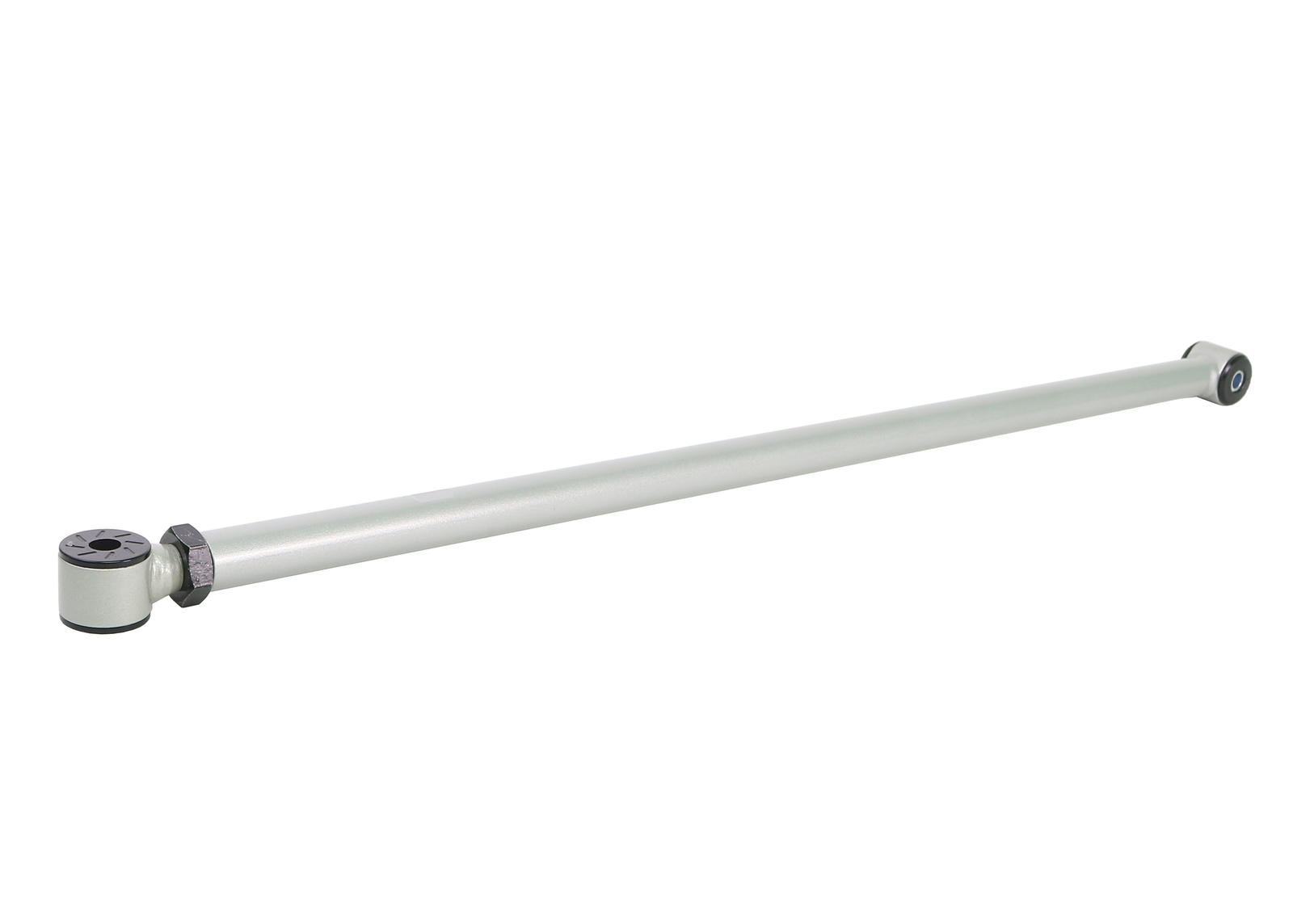

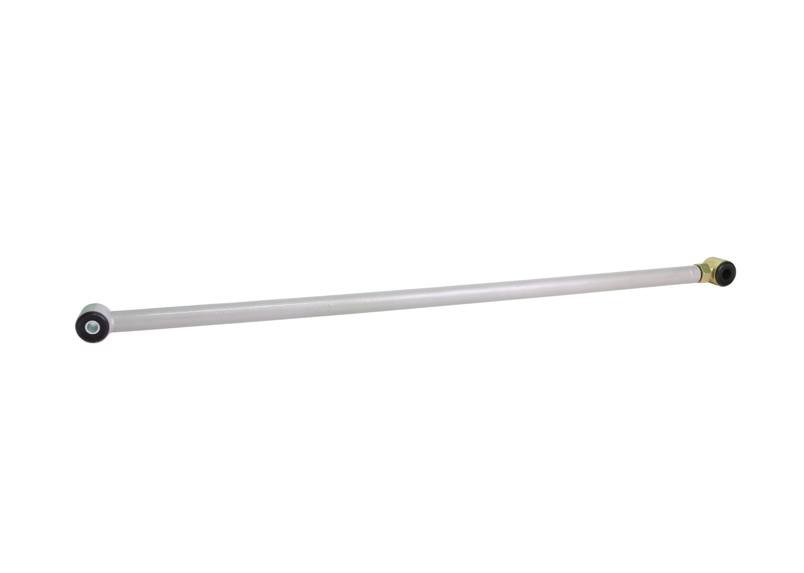

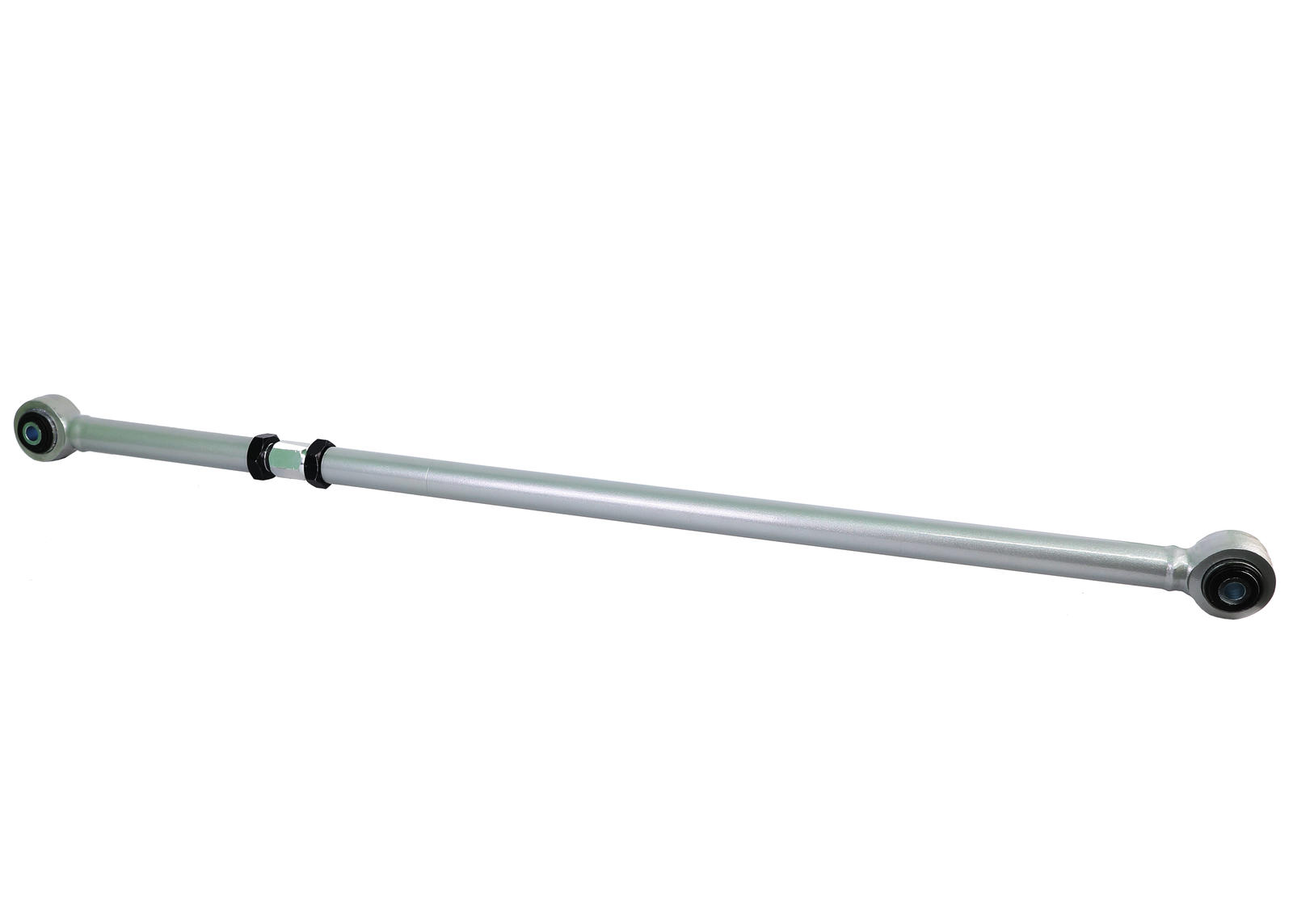

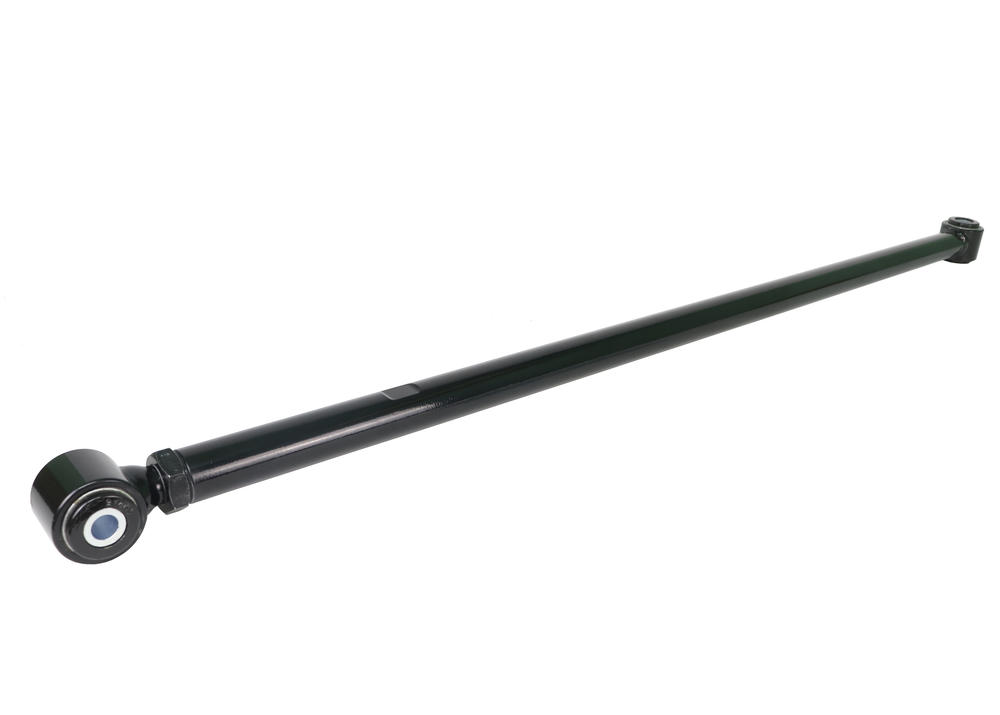

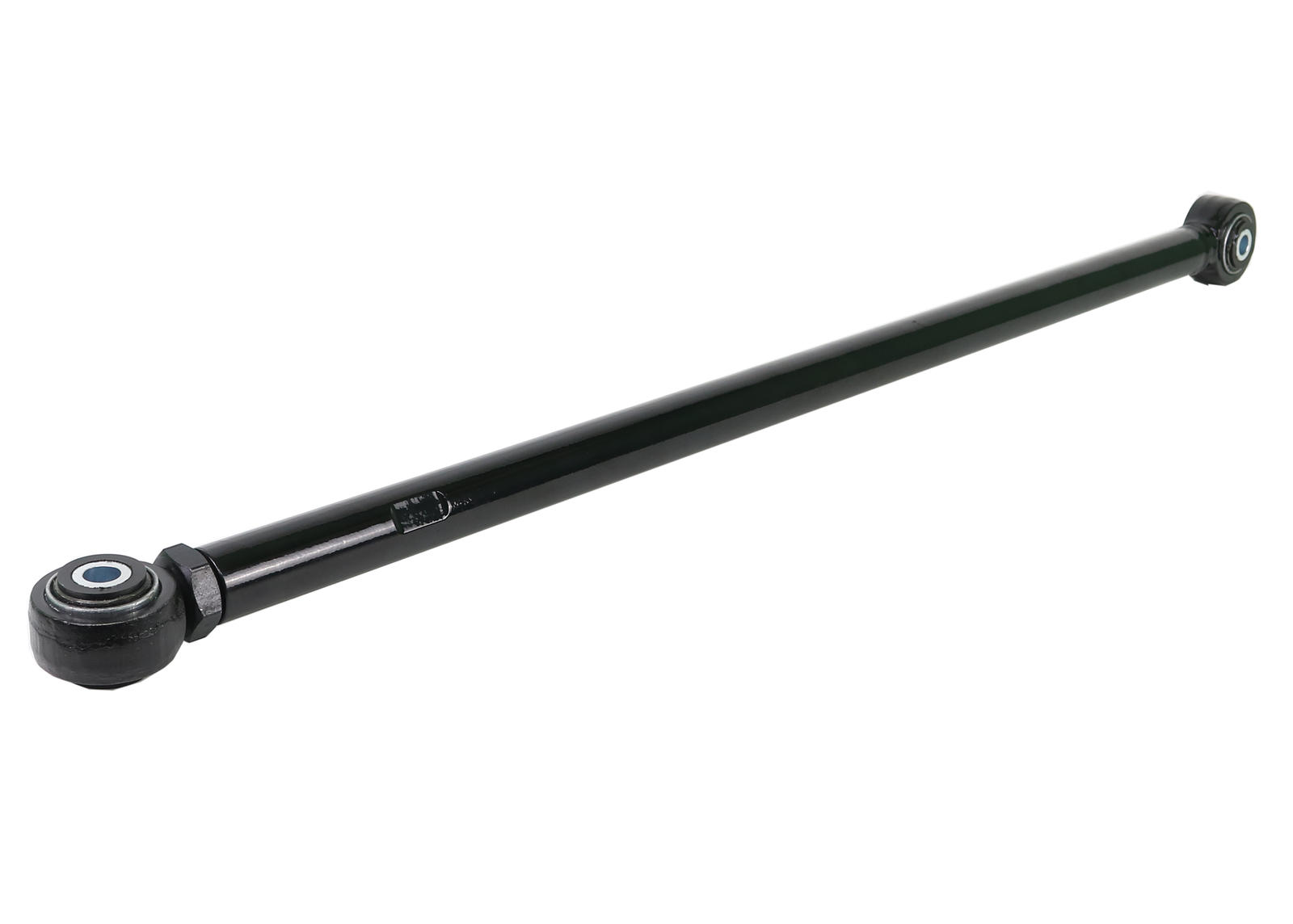

Adjustable Track Bars and Recentering the Axle

An adjustable track bar solves it by changing length.

The bar has a threaded adjuster, usually with a lock nut, that lets the effective length be set rather than fixed. Lengthen or shorten it and the axle moves across until it sits centered again.

That length adjustment is the whole point of the product. It restores what the lift or the drop took away, and it does it without touching springs, arms or anything else.

Adjustment is made with the vehicle at its final ride height, since the correct length depends on where the vehicle actually sits rather than where it sat standard.

Heavy duty construction matters just as much as the adjustment. A track bar carries serious lateral load, and a bar that flexes or has play in its joints lets the axle move anyway, which defeats the purpose.

Track Bar Against Other Axle Locating Setups

A track bar is one of three ways to locate a live axle sideways, and knowing the alternatives explains why it is used.

A watts link uses two horizontal links and a central pivot. It locates the axle with no sideways movement at all through suspension travel, which is more precise and considerably more complex to package.

Leaf springs locate the axle laterally on their own, which is why leaf sprung vehicles frequently have no track bar at all. The pack resists side load along its length, and the trade off is that it also has to spring the vehicle.

A track bar sits between those two approaches. It is simple, it packages easily, and it accepts a small amount of sideways movement through the arc as the price of that simplicity.

On a coil sprung live axle it is almost always the chosen solution, which is why lifted and lowered vehicles on that layout end up needing an adjustable one.

Bushings, Rod Ends and Joint Types

What the bar pivots on changes how it behaves and how long it lasts.

Rubber bushings are what most factory bars use. They absorb noise and they deflect under load, which means the axle still moves slightly even with a sound bar fitted.

Polyurethane holds its shape under load far better, which is what keeps the axle where the bar put it. The trade off is more noise and vibration transmitted into the body.

Rod ends and spherical joints remove deflection entirely and suit competition use, where precision matters more than refinement and service intervals are short.

Whichever type is fitted, a joint with play in it defeats the bar entirely. Check both ends for movement before blaming the bar itself for an axle that will not stay centered.

Signs Your Track Bar Needs Attention

• Wheels sitting visibly off center in the arches, one closer than the other
• A steering wheel that sits off center while the vehicle tracks straight
• The vehicle feeling like it crabs slightly down the road
• A clunk from the rear or front axle over bumps and driveways
• Wandering or nervousness at highway speed on a solid axle vehicle
• Visible play at either bushing or joint when levered
• A lift or lowering kit fitted with no lateral correction included
• Uneven tire wear with no alignment fault to explain it

The off center wheel is the easiest to spot. Stand behind the vehicle and compare the gap between tire and arch on each side.

Front and Rear Track Bars

Both ends use them where the axle is live, and they behave differently.

A front track bar on a solid front axle also affects steering feel, because the axle carries the steering components. An off center or flexing front bar is a significant contributor to the wandering that makes a lifted vehicle tiring to drive.

A rear track bar locates the rear axle and affects how the car behaves on corner exit, where the rear tires are being asked for grip under power. A rear axle that shifts under load makes the back of the vehicle feel loose and unpredictable, particularly on a powerful rear drive car.

Performance cars with live rear axles benefit as much as lifted trucks, since lowering moves the axle just as effectively as lifting does.

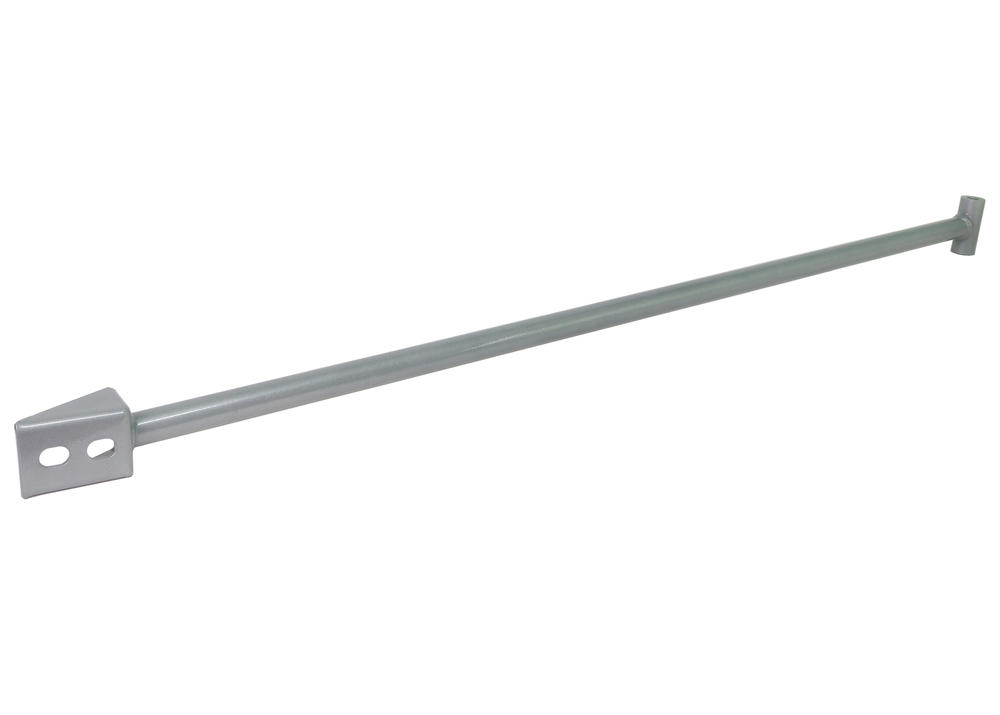

Support Braces and Why Mounting Points Matter

A track bar is only as good as what it bolts to.

The chassis mounting point takes the full lateral load of the axle, concentrated through a single bracket. On vehicles where that bracket is light, it flexes under load, and the axle moves even with a perfect bar fitted.

Support braces reinforce that mounting area, spreading the load into the chassis rather than concentrating it at the bracket. On platforms known for mount flex, the brace delivers as much improvement as the bar.

It is also worth inspecting the factory mount for cracking or elongated holes before fitting a stronger bar, since a stiffer bar transmits more load into a mount that was already marginal.

Fitting and Setting an Adjustable Track Bar

Measure the vehicle before you start adjusting anything. With the vehicle at ride height on level ground, measure from the same point on each side of the axle housing to the chassis rail, and the difference tells you how far off center it is.

Set the length with the vehicle on its wheels at final ride height rather than hanging on a hoist, since the bar angle changes with suspension position.

Adjust in small increments and remeasure each time. Half a turn moves the axle further than people expect.

Torque the bushed joints at ride height so the bushings take their set in the working position.

Lock the adjuster down properly once the length is set. A track bar adjuster that backs off under load is a track bar that is not doing its job.

Recheck after the first few hundred miles, especially on a vehicle where new springs are still settling.
